Spatiotemporal clustering of successive earthquakes as inferred from analyses of global CMT and NIED Fnet catalogs
Earth, Planets and Space volume 74, Article number: 117 (2022)
Abstract
Investigation of the characteristic behavior of successive earthquakes that closely occur in space and time is important to understand the generation mechanism of earthquakes and useful to assess a triggered earthquake, especially around the area, where a first large earthquake took place. Here, we analyzed the Global Centroid Moment Tensor catalog from 1976 to 2016 for shallow earthquakes with a moment magnitude, \({M}_{w}\), of at least 5.5, and the Fnet catalog, Japan, for \(4\le {M}_{w}<5.5\), to clarify the spatiotemporal characteristics of the successive earthquakes. We first sorted all of the earthquakes in time and removed the aftershocks that occurred in and around the faults of earthquakes with \({M}_{w}\) larger than the target magnitude range we investigated. Then, we selected source events from the beginning and searched for earthquakes that occurred within a horizontal distance (D) and a lapsed time (\({T}_{a}\)) from the source event to group them in clusters. Then, the source event was selected from the catalog in order, and the same procedure was repeated. We counted the number of clusters, each of which consisted of successive earthquakes, for different D and \({T}_{a}.\) To examine whether successive earthquakes were explained by random occurrences, we compared the results with simulations in which earthquakes occurred randomly in time but at the same locations matching the centroids in the real data. The comparison showed that the number of clusters for the simulation rapidly increased with D and merged with that for real data at a short distance, which is defined here as the triggering distance. We find that triggering distance is proportional to about 1/5 to 1/4 of the seismic moment \({(M}_{0})\) of the source event, and exponentially decreases with increasing \({T}_{a}\). Relating the derived empirical scaling relations between \({M}_{0}\) and triggering distance from the equations in the ETAS model, we show that the observed exponents of 1/5 to 1/4 were well predicted from the estimated ETAS parameters in various regions around the world. These consistencies first show that successive occurrence of earthquakes is well explained by the ETAS model.
Graphical abstract
Introduction
Seismic activity is often characterized by a sequence of earthquakes that is based on the largest earthquake, which is called the mainshock. The mainshock, which is sometimes preceded by foreshocks, is often followed by aftershocks (Omori 1894; DascherCousineau et al. 2020). Another way to characterize seismic activity is to group it into two types (Hicks 2011; Zaliapin and BenZion 2016): One consists of independent events that are related to slower deformation processes due to viscoelastic behavior in the crust and mantle, and/or the ambient stress field due to, for example, plate tectonic motion. The earthquakes categorized this way may form background seismicity, which is generally explained by a homogeneous process or stationary Poisson process (Hicks 2011; Zaliapin and BenZion 2016). The other type consists of dependent events that are entirely or partially triggered by previous events (e.g., mainshocks) (Hicks 2011; Zaliapin and BenZion 2016). Several methods have been proposed to distinguish independent seismicity (background seismicity) and dependent seismicity (triggered seismicity), which are often referred to as earthquake clustering and declustering (van Stiphout et al. 2012).
The earthquake occurrence process (i.e., seismicity) is often treated as a point process in space and time with a magnitude M (Daley and VereJones 2003; de Arcangelis et al. 2008), and is often described by some universal empirical relations. One of the most important empirical laws for seismicity is the Gutenberg–Richter law, which states that the occurrence frequency of earthquakes versus magnitudes M is expressed by the equation log N = a − bM, where N is the number of earthquakes with a magnitude of at least M, and \(a\) and b are constants (Gutenberg and Richter 1944). Another one is the modified Omori law, which states that the occurrence rate for earthquakes after a large earthquake (i.e., mainshock) decays in proportion to \({t}^{p}\), where t is the time from the mainshock and p a constant (Utsu 2002). These two empirical laws have been used for evaluating the seismic activity and/or seismic hazard after a large earthquake occurs. For example, Parsons (2002) analyzed earthquakes occurring after large earthquakes with magnitudes of \({M}_{\text{s}}\ge 7.0\) using the Global Centroid Moment Tensor (CMT) catalog for the period from 1977 to 2000, and found that the aftershocks continue for 7–11 years after the main shock, obeying the modified Omori law. He further indicated that shear stress in the aftershock area increases up to 240 km away from the centroid of the mainshock. Recently, the Epidemic Type Aftershock Sequence (ETAS) model has been widely used (Ogata 1988, 1998). The ETAS model has evolved from the formulations by Ogata (1988, 1998) and is rooted in the idea that every earthquake triggers nearby earthquakes; alternatively, all earthquakes accompany aftershocks. The ETAS model has been further extended to include other features, such as the elliptical spatial distribution of aftershocks (Ogata et al. 2003; Ogata 2004; Zhuang et al. 2004; Helmstetter and Sornette 2004; Ogata and Zhuang 2006; Chu et al. 2011).
Statistical characteristics of the seismicity are also examined by considering that spatiotemporal distribution of nearfield earthquakes (i.e., earthquakes occurring within the classical aftershock zone; van der Elst and Brodsky 2010) is independent of the dimensions of the region under consideration and the magnitudes of earthquakes (Kagan and Knopoff 1980; Corral 2004a; Marekova 2014). For instance, in southern California, where highquality seismic data are available for several recent decades, both the interevent distances (distances between earthquakes) and the interevent times (lapsed time between earthquakes) exhibit statistical distributions involving powerlaw regimes (Bak et al. 2002; Corral 2004a, b, 2008; Davidsen and Paczuski 2005). Bak et al. (2002) analyzed the seismic catalog for California from 1984 to 2000, by dividing the study region into L × L grid cells and calling the interval between two consecutive events a waiting time. They then measured the waiting times of pairs of earthquakes with a magnitude larger than the catalog threshold magnitude that occurred within each cell. They found that the distribution of waiting times exhibits a scaling law. Davidsen and Paczuski (2005) used the method of Bak et al. (2002) to evaluate the spatial distances between consecutive seismic events in Southern California. They used earthquake data from 1984 to 2000, giving no constraint on magnitude range or tectonic setting. They found that the distance between two consecutive earthquakes exhibits a power law behavior that depends on the waiting time rather than on the threshold magnitude. Felzer and Brodsky (2006) analyzed the relocated Southern California catalog between 1984 and 2002 to examine the characteristics of the spatial distribution of aftershocks. They indicated that the interevent distance follows a powerlaw decay up to a distance of about 50 km and 500 km from the epicenter of mainshocks with magnitudes of 2–4 and of 5–6, respectively.
In contrast to the occurrence of nearfield earthquakes, the spatiotemporal characteristics of successive earthquakes that occur in the farfield region (i.e., outside the classical aftershock area) are not yet well understood. To tackle this problem, several studies have attempted to investigate the spatiotemporal occurrence of moderate and large earthquakes in the farfield region using global and regional earthquake catalogs. For example, Gasperini and Mulargia (1989) analyzed earthquake (\(M\ge 4.0\)) cluster properties in Italy using a regional seismic catalog for the period between 1890 to 1982. Earthquakes were classified as either independent or as members of a given cluster within a specified time–space window. They found that, for an interval time of \(14\,\mathrm{ days\, to }\,60\,\mathrm{ days}\), the observed seismicity was sufficiently homogeneous within a region ranging from \(80\,\mathrm{ to\, }140\,\mathrm{ km}\), respectively. Lomnitz (1996) investigated the possibility of longrange triggering by analyzing worldwide large shallow earthquakes (M ≥ 7.0) that occurred during the period 1900 to 1989. He investigated anomalous seismicity immediately after the occurrence of M ≥ 7.0 earthquakes for a lapsed time of about 1 month. He found that a large earthquake enhances seismic activity in two concentric regions: the aftershock region (0–300 km) and the farfield region (400–1000 km). He noticed that both regions were activated together and separated by a seismicity gap region (300–400 km). Huc and Main (2003) examined the characteristics of earthquake triggering (\({M}_{w}\ge 5.0\)) by analyzing a global data catalog for the period 1977 to 2000. They computed the interval distances for each pair of sourcetriggered events, and found no systematic triggering effect beyond 100–150 km, which is almost the thickness of the lithosphere.
It is also known that large earthquakes are sometimes preceded by foreshocks: about 10–20% of the mainshocks with \({M}_{w}\) ≥ 6 are accompanied by foreshocks (Reasenberg 1999). Some foreshocks have a magnitude larger than 6. For example, in Japan, 2 days after an \({M}_{w}\) 7.3 earthquake, the 2011 Tohoku–Oki earthquake with magnitude \({M}_{w}\) 9.0 occurred along the Pacific plate boundary (Marsan and Enescu 2012); an \({M}_{w}\) 6.5 earthquake hit the Hinagu active fault in Kyushu, Japan, on April 14, 2016, and was followed by a large earthquake with \({M}_{w}\) 7.3 that took place at Futagawa active fault on April 16 (Goda et al. 2016). In New Zealand, the June 2020 \({M}_{w}\) 7.4 earthquake was followed by three large earthquakes with magnitude \({M}_{w}\) 7.2, \({M}_{w}\) 7.4, and \({M}_{w}\) 8.1 on March 3, 2021, within a few hours of each other (U.S. Geological Survey (USGS) 2021). These large earthquakes may be classified as a foreshock of the following mainshock (Utsu 1955), but such a large foreshock exceeding a magnitude of about 6 is generally recognized as a main shock before the occurrence of the following larger earthquake. It is also known that large earthquakes sometimes successively occur, which may not be explained by Båth’s law (1965) and may not be attributed to the socalled aftershock activity. For example, in Turkey, six large earthquakes with magnitudes of 7.0–7.8 successively occurred along a 900kmlong zone of continuous surface ruptures along the Anatolian active fault system. The earthquakes migrated in a westward direction from 1939 to 1967 (Barka 1996): The M7.8 Erzincan earthquake in 1939, the M7.1 Erbaa–Niksar earthquake in 1942, the M7.3 Tosya earthquake in 1943, the M7.3 Bolu–Gerede earthquake in 1944, the M7.0 Abant earthquake in 1957, and the M7.1 Mudurnu Valley earthquake in 1967. For 5 years after the 2004 Sumatra earthquake with magnitude \({M}_{w}\) 9.2, three large earthquakes with \({M}_{w}\) > 7 occurred along the boundary between the Indian oceanic plate and Sumatra Island in Indonesia: the \({M}_{w}\) 8.7 Nias earthquake in 2005, which occurred directly south of the rupture area of the Sumatra earthquake, the \({M}_{w}\) 8.5 and \({M}_{w}\) 7.9 earthquakes that occurred on Sep. 12, 2007, about 130 km southwest of Bengkulu on the southwest coast of Sumatra island and about 185 km south–southeast of Padang in West Sumatra, respectively. These earthquakes are often simply termed triggered earthquakes (Stein 1999; Sevilgen et al. 2012).
These previous studies have quantitatively and systematically examined the occurrence possibility and/or triggering processes of successive earthquakes at global and regional scales. However, most of the previous studies have analyzed a limited range of magnitudes to examine the successive occurrences of earthquakes. In addition, the previous studies from the 1990s or early 2000s could not avoid using a limited number of reliable data, because the worldwide catalog was prepared from 1976. The present study, therefore, analyzes two reliable global and regional earthquake data catalogs to clarify spatiotemporal characteristics of successive earthquakes for a wide magnitude range of \({M}_{w}\) 4.0 to \({M}_{w}\) > 7. We estimate the triggering distance at which successive earthquakes occur, using a method that can be applied even for a large magnitude range with not a large number of earthquakes. We further relate the results of triggering distance with the ETAS model and discuss the occurrences of successive earthquakes.
Data
Global data catalog
We used the data catalog of CMT solutions provided by the Global CMT project run by Columbia University (Dziewonski et al. 1981; Ekström et al. 2012). CMT solutions for earthquakes have routinely been determined from analyses of observed seismic waves recorded at stations deployed around the world. The centroid, occurrence time, and moment magnitude for earthquakes occurring around the world are provided. The data for a period of 40 years from 1977 to 2016 were analyzed in the present study. We used shallow earthquakes that occurred at depths between 0 and 70 km, which are about 80% of all earthquakes within the catalog (Bird et al. 2002). In total, 13,198 shallow earthquakes were analyzed. Because CMT solutions are determined for relatively large earthquakes that excite longperiod waves propagating over a long distance, the data catalog is complete for the earthquakes with a magnitude of at least about 5. This can be confirmed from the magnitude frequency distribution that follows the Gutenberg–Richter’s relation (e.g., Nishimura 2017). However, using various methods, Mignan and Woessner (2012) found that the Global CMT catalog is complete for magnitude of at least 5.3. Therefore, to examine the averaged features of successive earthquakes in space and time on a global scale, the present study gives attention to earthquakes with a magnitude larger than or equal to 5.5.
Regional data catalog
We used seismic moment tensor catalog data from the Full Range Seismograph Network of Japan (Fnet) provided by National Research Institute for Earth Science and Disaster Resilience (NIED) for the analysis of smaller earthquakes that occurred in and around Japan. Kubo et al. (2002) indicated that the NIED Fnet catalog is consistent with the global CMT catalog with differences of less than 0.1 in moment magnitude, 10 km in focal depth, and 15° in the orientation of the principal axes. They also showed that the moment tensors are reliably estimated for the earthquakes with a moment magnitude of above 3.5. Earthquakes in the NIED Fnet catalog are available since 1997, but highquality data recorded by the dense NIED Fnet only became available from 2001 after the Fundamental Research on Earthquakes and Earth’s Interior Anomaly seismographic network was integrated into the seismographic network set up for the KIBAN project (Okada et al. 2004). Furthermore, to avoid the effects of aftershocks of the 2011 Tohoku–Oki earthquake (M_{w}9.0), we used the earthquake data for the period from 2001 to 2010. To determine the magnitude of completeness (\({M}_{\mathrm{c}}\)) in the NIED Fnet catalog, we use the method of maximum curvature (Wiemer and Wyss 2000). This method defines \({M}_{\mathrm{c}}\) as the point of maximum curvature of the cumulative frequency–magnitude distribution, which corresponds to the magnitude bin containing the highest frequency of events in the noncumulative frequency–magnitude distribution. For the data we analyzed, \({M}_{\mathrm{c}}\) is estimated to be 3.8. However, the completeness magnitude significantly changes when using only earthquakes that occur onshore and/or offshore (Nanjo et al. 2010), or using earthquakes that occur during the daytime or nighttime (Iwata 2013), and/or by the evaluation method (Mignan and Woessner 2012). Considering these previous studies, we analyzed the spatiotemporal behavior of successive earthquakes that occurred around Japan with magnitudes of \(4.0\le {M}_{w}<5.5\). As with the global CMT catalog, only shallow earthquakes (70 km in depth) were analyzed.
Methods
Identifying successive earthquakes in space and time
The present study focuses on successive earthquakes that may not be classified as socalled aftershocks, and we develop an algorithm for identifying clusters of successive earthquakes in space and time. The algorithm consists of two steps: (1) removal of aftershocks and (2) detection of successive earthquakes (Fig. 1a). These two steps are described in more detail in the following subsections.
Step 1: Removal of aftershocks of large earthquakes
The aftershocks induced by larger earthquakes are removed by applying the following procedure: (a) sort earthquakes in time; (b) set the target magnitude range from \({{M}_{w}}_{1}\) to \({{M}_{w}}_{2}\); (c) consider all earthquakes larger than the target magnitude range as mainshocks; and (d) for each selected mainshock, remove all the subsequent events that occurred within a space–time window [\({D}_{\mathrm{min}}\), \({t}_{d}\)] defined in “Parameters used in steps 1 and 2” section, where \({D}_{\mathrm{min}}\) is the extent of the aftershock zone and \({t}_{d}\) the duration of the aftershock sequence following the mainshock. The catalog in which these aftershocks are removed by the procedures in (a)–(d) is called a “subcatalog” in the present study. Figure 1b schematically illustrates how aftershocks of larger earthquakes are removed in step 1.
Step 2: Selection of source and dependent events
We suppose that successive earthquakes consist of a source event and dependent events that occur closely in space and time. We use the following procedures for each target magnitude range from \({{M}_{w}}_{1}\) to \({{M}_{w}}_{2}\): (a) a start time is set to be the beginning time of the subcatalog; (b) a source event is selected from the subcatalog in order from the start time, and is termed as \({E}_{o}^{i}\), where i represents the number of source event; (c) when an earthquake \({E}_{o}^{g}\) larger than \({E}_{o}^{i}\) occurs within an interval time of \({t}_{b}\) before the occurrence of \({E}_{o}^{i}\) and within a distance of 2 \({D}_{\mathrm{min}}({E}_{o}^{g})\) from the centroid of \({E}_{o}^{i}\) in the subcatalog, \({E}_{o}^{i}\) is not used as a source event, and we go to step (f); (d) earthquakes occurring within a lapsed time \({T}_{a}\) and a horizontal distance D from the source event are searched for, and are defined as dependent events belonging to the “cluster” \({E}_{o}^{i}\); (e) the start time is set to be just after the occurrence time of the ith source event, and we go to step (b) to select the next source event (i + 1) that does not belong to the clusters previously determined; and (f) steps (b) to (e) are repeated until the last earthquake in the subcatalog is identified. Note that in procedure (d), the earthquakes located within a distance of \({D}_{\mathrm{min}}\) from the epicenter of \({E}_{o}^{i}\) are not used. Step (c) removes the aftershocks of the mainshock in the target magnitude range.
To avoid double counting, all the identified source and dependent events are removed from further selection so that earthquakes cannot belong to two or more clusters. We define the earthquakes belonging to each cluster as “successive earthquakes.” Figure 1c schematically illustrates how to obtain the source events and dependent events using the lapsed time \({T}_{a}\) and distance \(D\). As shown in Fig. 2, the number of clusters and/or successive earthquakes changes with the lapsed time \({T}_{a}\) and the horizontal distance D. By counting the number of clusters for various values of \({T}_{a}\) and \(D\), we clarify the characteristics of successive earthquakes. Note that there is no notion of foreshock in the analysis (that is, much smaller earthquake triggers a large one), because including such a notion makes the algorithm and interpretation of results complicated.

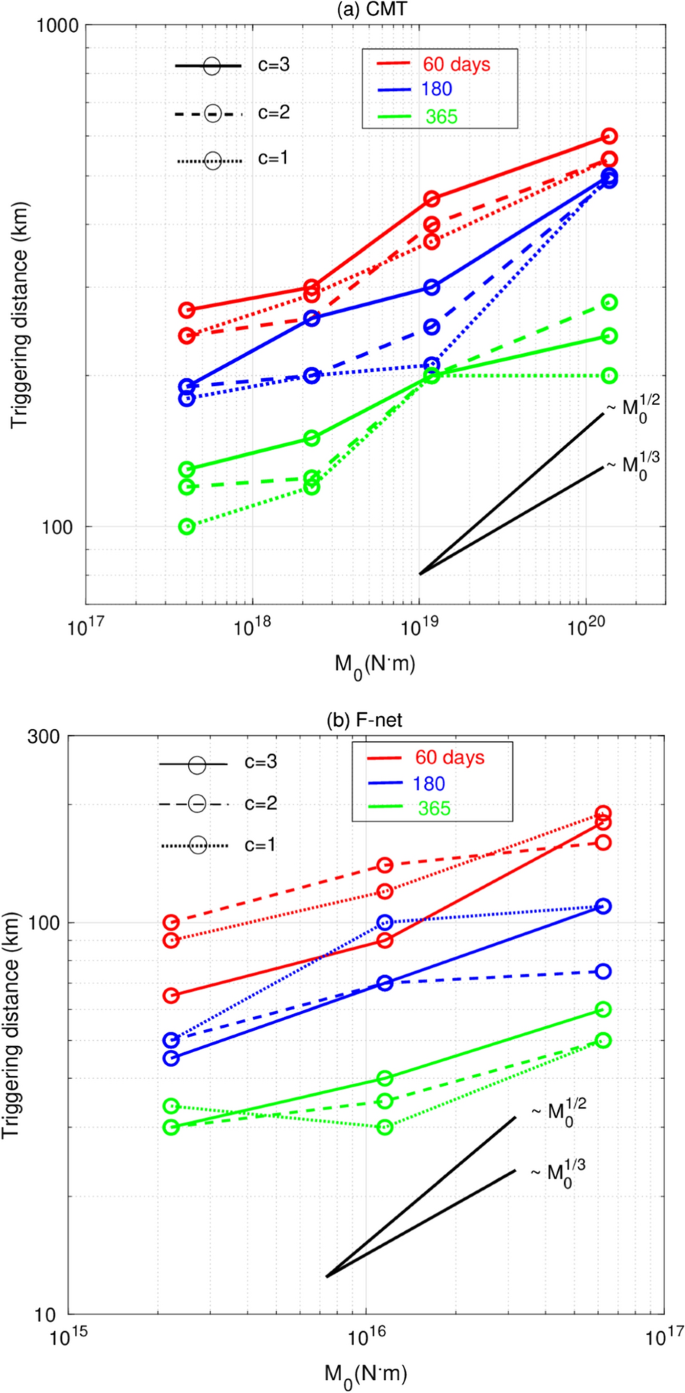

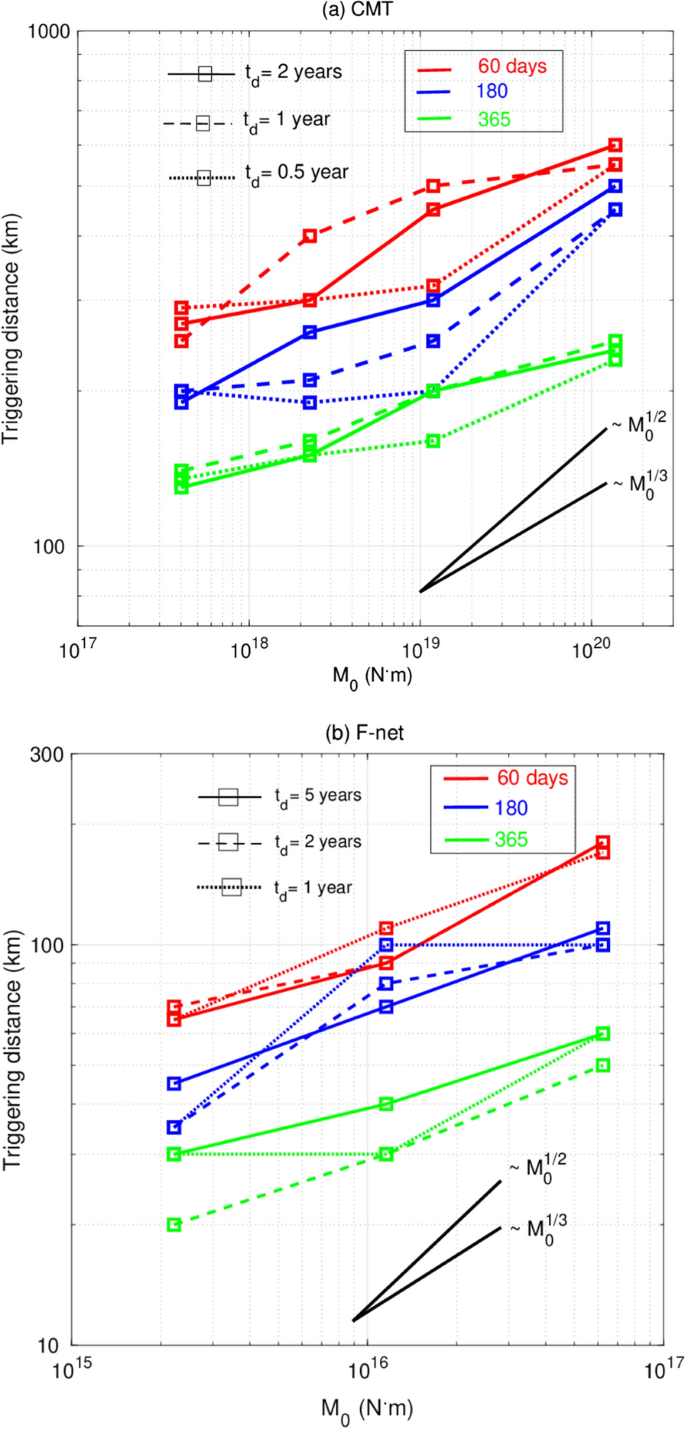

Parameters used in steps 1 and 2
The time interval, \({t}_{b}\), which is defined as the elapsed time between a targeted source earthquake and the preceding large earthquake in the region, is set to be 14 days, because most of the largest aftershocks occur within 10 days after the occurrence of each mainshock (Utsu 1957). Following Utsu (1955), we obtain the aftershock distance in kilometers, \({D}_{\mathrm{min}}\), using the following equation: \({D}_{\mathrm{min}}=c\sqrt{A/\pi }\), where A is the slip area in square kilometers determined from the magnitude of the source event: \({\mathrm{log}}_{10}A=1.02{M}_{w}4.0\). To sufficiently exclude the aftershocks of the source event, we set the coefficient c to be 3. The duration of aftershocks (\({t}_{d}\)) is set by examining several large earthquakes occurring in Japan and around the world: 730 days for large earthquakes with \({M}_{w}\ge 5.5\) and 1825 days for small earthquakes with \({M}_{w}<5.5\) (see Appendix A2). Because the selection of mainshocks may change the selection of aftershocks (Felzer and Brodsky 2006; Marsan and Lengliné 2010), we examined the effect of c and \({t}_{d}\) by changing their values.
Measurement of triggering distance

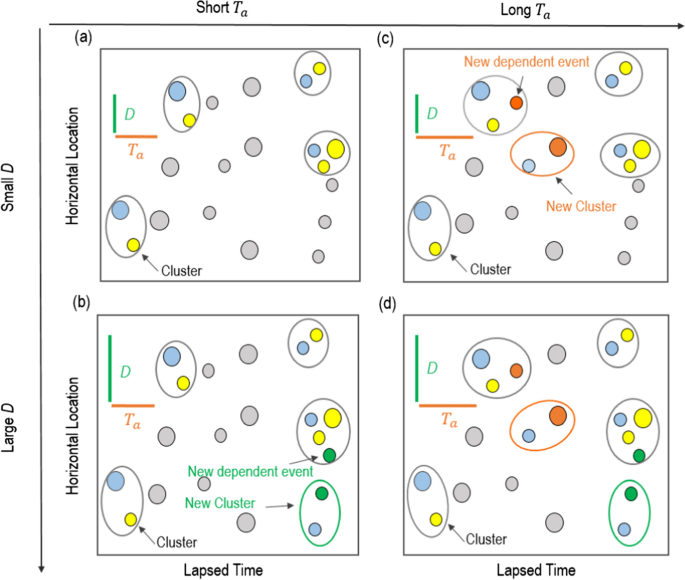

To examine whether the successive earthquakes selected by steps 1 and 2 randomly occur in space and time, we compared the results obtained from analyses of actual catalog data to those from simulated catalog data. Because the temporal distribution of large earthquakes is well described by a Poisson process when aftershocks are excluded (e.g., Gardner and Knopoff 1974; Michael 2011; Shearer and Stark 2012), we made simulated data catalogs of earthquakes as follows: the centroids and magnitudes were set to be the same as the real data, but the origin times were randomly set during the observation period of the real catalog using a random function in a computer code that can generate random values equally distributed between 0 and 1.
We picked up the successive earthquakes and counted the number of clusters for the simulated data catalogs by applying the same procedure as that used for the real data catalogs. The simulations were done 100 times, and the average number of clusters was calculated. As shown in the following sections, we defined the intersection point, where the number of clusters obtained from real data merges with that obtained from simulated data as “triggering distance.”
Results
Analysis of global CMT catalog
To investigate the spatiotemporal distribution of successive earthquakes at the global scale, we divided the earthquakes in the global CMT catalog into five magnitude ranges: \(5.5\le {M}_{w}<6.0\) (9024 earthquakes), \(6.0\le {M}_{w}<6.5\) (2863 earthquakes), \(6.5\le {M}_{w}<7.0\) (907 earthquakes), and \({M}_{w}\ge 7.0\) (404 earthquakes). To remove the aftershocks, we set the aftershock duration \({t}_{d}\) to 730 days (we also show the results for 365 days and 180 days in Appendix).
We counted the number of clusters for three lapsed times: \({T}_{a}\) = 60, 180, and 365 days. The horizontal distance, D, from the centroid of the source earthquake changes from 10 to 500 km every 10 km for the first two magnitude ranges (\({M}_{w}\)< 6.0) and from 100 to 1000 km every 100 km for the other magnitude ranges (\({M}_{w}\ge\) 6.0). Then, we counted the number of clusters. Figure 3 shows the number of clusters versus the horizontal distance for the three lapsed times. The results show that most of the numbers of clusters increased with increasing lapsed time \({T}_{a}\) and with increasing horizontal distance D. However, for the small magnitude ranges of \({M}_{w}\) < 6.5, the number of clusters decreased in the ranges of large \({T}_{a}\), large D, or both. For example, for \(5.5\le {M}_{w}<6.0\), the number begins to decrease from 400 km for \({T}_{a}\) of 365 days. Such decreases occur, because multiple clusters come together when the horizontal distance is extended and the lapsed time increases (see Fig. 2).
Figure 3 also plots the results obtained for the simulated catalog. The number of clusters for the simulated catalog more rapidly increases with the horizontal distance than the number for the real catalog at short distances, and the former then approaches or becomes equal to the latter. Alternatively, the number of clusters for the real catalog is always larger than the number for the simulated catalog at shorter distances, and merge to those for the simulated catalog at long distances. This result strongly suggests that the earthquakes trigger another or more earthquakes over shorter distances. The first intersection point, where the number of clusters obtained from the real catalog coincides with that obtained with the simulated catalog represents the distance where triggering effect ceases. Hence, we define this distance as the “triggering distance,” as explained in “Measurement of triggering distance” section. The triggering distance decreases with the lapsed time, which suggests that the triggering effect gradually diminishes and the seismic activity returns to the normal condition. For example, the triggering distances are 600 km, 500 km, and 240 km at \({T}_{a}=\) 60, 180, and 365 days, respectively, for \({M}_{w}\ge\) 7.0. The values are 450 km, 300 km, and 200 km at 60, 180, and 365 days, respectively, for \(6.5\le {M}_{w}<7\). The results of different lapsed times are very close to each other although the number of successive earthquakes decreases for the lapse times of 60 ad 180 days. Table 1 summarizes the estimated triggering distances. Table 2 shows the percentages of successive earthquakes that occurred within the triggering distances among all of the observed earthquakes.
The earthquakes occurring within the triggering distance may represent the earthquakes triggered by previous large earthquakes, while the earthquakes beyond the triggering distance can be explained by random occurrence. Note that the earthquakes occurring within the triggering distance potentially include not only the earthquakes triggered by previous large earthquakes but also the randomly occurring earthquakes. However, it is difficult to exactly separate them and evaluate the percentages of successive earthquakes among the background seismicity from our analyses.
Figure 4 shows the locations of successive earthquakes at the global scale for three magnitude ranges at the lapse time of 365 days. Successive earthquakes are distributed along all types of plate boundaries: convergent boundaries, such as subduction zones and collision zones, divergent boundaries (e.g., East African Rift System and ridges) and transform boundaries (e.g., San Andrea fault and Anatolian fault system). Different lapse times also show similar distribution, although the numbers of successive earthquakes come to be smaller.
For each analyzed magnitude range, we also perform the same analysis by counting the number of successive earthquakes instead of clusters. The results in Additional file 1: Figure S1 show a good agreement between the triggering distance obtained by counting the number of clusters and those obtained by counting the number of earthquakes.
Analysis of NIED Fnet catalog
To examine whether similar features of successive earthquakes are retrieved for smaller earthquakes, we analyzed the earthquakes occurring around Japan islands using the Fnet catalog provided by NIED. Japan is one of the most seismically active regions in the world, and is monitored by a nationwide dense seismic network operated by the Japan Meteorological Agency (JMA) and NIED (Okada et al. 2004). Its seismic activity may be roughly divided into three types (Taira 2001; Earthquake Research Committee 2020). The first is the earthquakes that occur on and around the plate boundaries, which result from the subduction of two plates: the Pacific Plate under the land plate from the Kuril, Japan, and the Izu–Bonin Trenches; Philippine Sea Plate under the land plate at the site of the Nankai Trough and the vicinity of the Nansei Islands (Ryukyu) Trench. The second is the shallow earthquakes that occur beneath inland regions of Japan. The third is the earthquakes occurring in the eastern margin of the Sea of Japan.
We divided the earthquakes in the catalog into four magnitude ranges: \(4.0\le {M}_{w}<4.5\) (3297 earthquakes), \(4.5\le {M}_{w}<5.0\) (1036 earthquakes), and \(5.0\le {M}_{w}<5.5\) (342 earthquakes). To remove the aftershocks, we set the aftershock duration to 1825 days (we show the cases for 730 and 365 days in Appendix). The number of clusters is calculated for three lapsed times: \({T}_{a}\) = 60, 180, and 365 days. The horizontal distance, D, from the centroid of the source earthquake changes from 10 to 300 km every 10 km for the magnitude ranges of \(4.5\le {M}_{w}<5.0\) and \(5.0\le {M}_{w}<5.5\) and from 5 to 100 km about every 10 km for the magnitude ranges of \(4.0\le {M}_{w}<4.5\).
Figure 5 shows the number of clusters versus the horizontal distance, where solid lines represent the number of clusters for the real data catalog, while dotted lines are for the simulated catalog. The number of clusters increases with increasing lapsed time and with increasing horizontal distance except for the cases of smaller magnitude ranges at large \({T}_{a}\) and/or large D, which are the same as the results for the global CMT catalog. Table 1 summarizes triggering distances for all the magnitude ranges at different lapsed times, and Table 2 shows the percentages of successive earthquakes at the triggering distance to the total number of earthquakes. No significant differences are observed in terms of the percentages of successive earthquakes for various lapsed times within the magnitude ranges. On the other hand, the percentages of successive earthquakes decrease with decreasing magnitude. This may be because small earthquakes occur more frequently than large earthquakes, and a large aftershock duration leads to the removal of a significant number of aftershocks in small magnitude ranges than in larger ranges, where earthquakes occur at quite large time intervals.
The spatial distribution of successive earthquakes is in good agreement with the main tectonic features of seismic activity in and around the Japanese islands (Fig. 6). Successive earthquakes are observed for 643, 37, and 3975 earthquakes with \(4.0\le {M}_{w}<5.5\) that occurred beneath the inland areas of Japan, the Sea of Japan, and along plate boundaries, respectively. During the analysis period from 2001 to 2010, the percentages of successive earthquakes to the total number of earthquakes at the plate boundaries are about 2% (91 events) along the Kuril trench, about 1% (48 events) along Japan, 1% (47 events) along Izu–Ogasawara, and 3% (122 events) along Nansei island trenches at \({T}_{a}=365\) days. No successive earthquakes are observed along the Nankai Trough, probably because of low seismicity along this trough (e.g., Nakano et al. 2013). For earthquakes that occurred beneath the inland areas of Japan and Sea of Japan, we find that the percentages of successive earthquakes are about 2% (14 events) and 0% (0 events), respectively. We find that 7 successive earthquakes beneath the inland areas of Japan (Hokkaido, Kanto, and Chugoku areas) occurred in the region within a distance of 50 km active faults (Nakata and Imaizumi 2002) for a lapsed time of 365 days, while no earthquake occurred within 50 km from the summit of active volcanoes (Fig. 6) (Japan Meteorological Agency 2013). Although the number of successive earthquakes is small, successive earthquakes tend to be located close to active faults.
Discussion
Comparison of the triggering distance estimated from global and regional catalogs

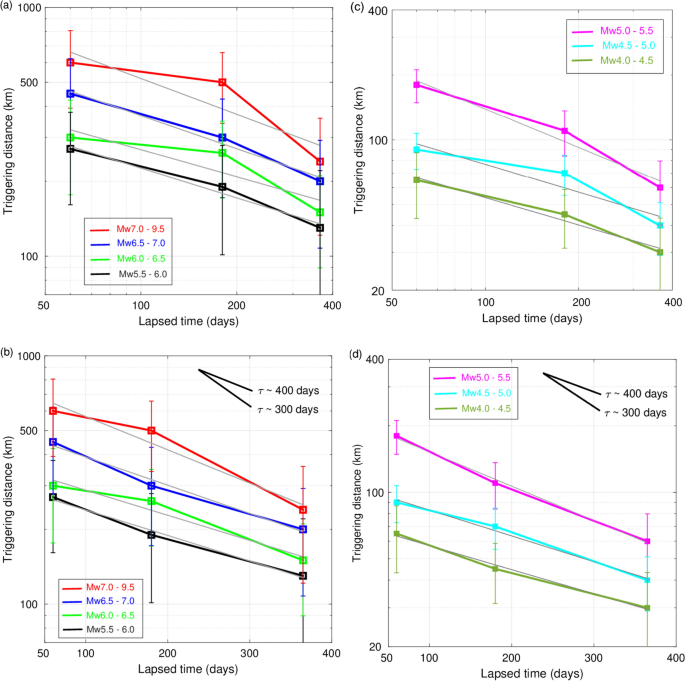

To quantitatively evaluate the characteristics of triggering distance, we analyzed its dependence on the seismic moments of the source events. Figure 7 plots the triggering distances versus the seismic moment \({M}_{0}\). Results both for the global CMT catalog and NIED Fnet catalog are shown together. The seismic moment for each data is calculated from the moment magnitude averaged for all the earthquakes in each magnitude range using the equation \({M}_{w}=(2/3)({\mathrm{log}}_{10}{M}_{0}9.1)\) (Kanamori and Anderson 1975; Hanks and Kanamori 1979; Bormann and Giacomo 2010).
The triggering distance almost increases in proportion to the seismic moment on the double logarithmic graphs for all three lapsed times. The triggering distances estimated from the global CMT are fairly well aligned with those from NIED Fnet data. We fit a regression line expressed by \({\mathrm{log}}_{10}D={a}_{h}{\mathrm{log}}_{10}{M}_{0}+{b}_{h}\) to the results for both catalogs together. We estimated \({a}_{h}\) to be about 1/5 to 1/4 for the three lapsed times, which are slightly smaller than the value of 1/3 that is derived from the scaling relation of static stress changes to the seismic moment. The time dependence of triggering distances is plotted on a double logarithmic scale in Fig. 8a, c and a semi logarithmic scale in Fig. 8b, d. It is clearly recognized that the triggering distances decay with a similar trend for all magnitude ranges. The data are more likely to exponentially decay in time with a characteristic time \(\tau\, \mathrm{ of\, about }\,420\) to 450 days for the global CMT and NIED Fnet catalog (Fig. 8d), although the power law (i.e., logarithmic scale) may explain the data within the error ranges (see Appendix A1).
The scaling law between the triggering distance and seismic moment and the time dependence of the triggering distance were also retrieved by changing the values of \({t}_{d}\) and c (see Appendix A2). These results suggest that the triggering distance is a stable parameter that is little affected by the aftershock activity.
Triggering distance for others ranges of magnitudes
We also perform the same analysis by changing the magnitude window for all the earthquakes of magnitudes \({M}_{w}\) larger than or equal to 5.5 (\({M}_{w}\ge 5.5\), \({M}_{w}\ge 6.0\), \({M}_{w}\ge 6.5,\) and \({M}_{w}\ge 7.0\)) for global CMT catalog and magnitudes \({M}_{w}\) in the range of \(4.0\le {M}_{w}<5.5\), \(4.5\le {M}_{w}<5.5\), and \(5.0\le {M}_{w}<5.5\)) for Fnet catalog. Additional file 1: Figure S2 shows the triggering distances versus the seismic moment \({M}_{0}\) for the global CMT and NIED Fnet catalogs, respectively. It can be clearly seen that changing the magnitude window does not impact the main features of the triggering distance. Note that the seismic moment for each window is mainly determined from the number of small earthquakes.
Relation to ETAS model
The spatiotemporal ETAS model by Ogata (1998) has been considered as a benchmark model to describe the earthquake clustering process, and it has been extensively studied in the context of earthquake shortterm clustering (e.g., Console et al. 2007; Marzocchi and Lombardi 2008; Zhuang et al. 2011). In the present study, therefore, we examine whether the ETAS model can explain the characteristics of the observed triggering distance. We first introduce the ETAS model briefly, and then we describe the calculation of the triggering distance in and around the Japan islands using the data that are simulated by the ETAS model. Then, we compare the parameters for the ETAS model with the relations between the triggering distance and seismic moment we obtained in “Comparison of the triggering distance estimated from global and regional catalogs” section.
The ETAS model treats earthquake occurrence as a point process in space and time, and magnitude kernels are typically assumed to be independent; in other words, any event can trigger its own offspring events (Ogata 1998; Zhuang et al. 2004; Ogata and Zhuang 2006). The conditional seismic intensity λ of earthquakes with a magnitude of M at a position (x, y) and a time t when assuming an isotropic spatial clustering is written as
where
and
In Eq. (1), \(\mu \left(x,y\right)\) represents the background seismicity rate, \(\nu \left(t{t}_{i}\right)\) represents the earthquake occurrence rate and \(g\left(x{x}_{i},y{y}_{i};{M}_{i}\right)\) represents the location distribution of the triggered events. In Eq. (2), \(K\) measures the productivity of the aftershock activity just after the mainshock and c and p are the parameters of modified Omori’s law (Ogata 1998, 2004; Ogata et al. 2003; Kumazawa and Ogata 2014). The parameters in Eq. (3) are as follows: \({M}_{\mathrm{c}}\) is the cutoff magnitude, \(\alpha , \gamma ,d,\) and \(q\) are constant parameters characterizing the space–timepointprocess model that may be estimated by maximizing the loglikelihood function, and \({t}_{i}<t\) represents the history of the process up to time \(t\). Parameter \(d\) \((\mathrm{units}: {\mathrm{degree}}^{2})\) represents the characteristic triggering distance which prevents a singularity at distance 0, \(\left({x}_{i},{y}_{i}\right)\) represents the epicenter coordinates of the parent event of magnitude \({M}_{i}\), \(\left(x,y\right)\) is the centroid of the offspring, α (\({\mathrm{magnitude}}^{1}\)) represents the efficiency of earthquakes in triggering offspring as a function of magnitude \({M}_{i}\), \(q\) describes how triggered events decay in space, and \({e}^{\gamma \left({M}_{i}{M}_{\mathrm{c}}\right)}\) scales the size of the \({M}_{\mathrm{c}}\) aftershock zone with the magnitude of the parent event (Seif et al. 2017).
Analyses of ETAS catalog
We prepared data catalogs in which earthquakes follow the ETAS model, which is called the ETAS catalog hereafter, and estimated the triggering distance. We first calculated seismicity rates at a target region using the following equation presented by Catalli et al. (2008)
where \(\Delta T\) represents the duration of the catalog, \({S}_{\mathrm{tot}}\) the area of the studied region, \({M}_{\mathrm{max}}\) is the maximum magnitude within the catalog, \({M}_{\mathrm{min}}\) is the minimum magnitude of earthquakes in the catalog, \({M}_{0}^{*}\) is the seismic moment of \({M}_{\mathrm{min}}\), \({M}_{0}^{\mathrm{tot}}\) is the total seismic moment in [\({M}_{\mathrm{min}},{M}_{\mathrm{max}}\)], and b is the b value of the Gutenberg–Richter relation.
We used the NIED Fnet catalog from 1997 to 2010 and calculated the seismicity rate r for every 0.5° × 0.5° grid cell in and around Japan, assuming a constant b value of 1.1 for all grid cells and \(\Delta T=\) 14 years. It is more realistic to set b values changing in space and time according to the observed results (Enescu and Ito 2003; Nanjo and Yoshida 2021; Chiba 2022). However, such a spatially changing distribution may make it harder to interpret the results so we use a constant b value. Note that the results for different b values (0.9, 1.0, and 1.4) are similar to the case of b = 1.1. We assumed that the background seismicity, μ, is 40% of the seismicity rate, r, following the previous studies at California (Gardner and Knopoff 1974; Hardebeck et al. 2008). It is more appropriate to use the background seismicity in Japan, but we do not find a suitable one for such a tectonically complex region. Hence, we tentatively use this value as an average. We used the average ETAS parameters in Japan that are shown in Table 1 of Ogata and Zhuang (2006). We then used the RunAftSimulator.m program to make synthetic ETAS catalogs (Felzer et al. 2002; Hardebeck et al. 2008). Spatial clustering of aftershock activity is also taken into account using an assumption similar to that in Felzer and Brodsky (2006), where the distance distribution of aftershocks follows a powerlaw decay represented as \(\rho \sim {d}^{n}\), where \(\rho\) is the linear aftershock density at distance \(d\) from the main shock and n is a constant. Here, we use n = 1.35, as obtained by Felzer and Brodsky (2006), and \(d\) is between 0.001 and 500 km after Hardebeck et al. (2008). Note that the values of parameter \(n\) vary from 1 to 2 encompassing those observed in California and Japan (RichardsDinger et al. 2010).
We set the time period of the ETAS catalog to be the same as that for the NIED Fnet catalog (i.e., from 2001 to 2010). We prepared ten ETAS catalogs in which 2536 events, 811 events, and 250 events on average were generated for \({M}_{w}\) 4.0–4.5, \({M}_{w}\) 4.5–5.0, and \({M}_{w}\) 5.0–5.5, respectively. The total number of earthquakes in the ETAS catalogs does not exactly match the number of earthquakes in the NIED Fnet catalog, but this is not important, because the following results are related to the spatiotemporal distribution of events and not to the total number of events in the catalog. As shown in Additional file 1: Figure S4, the RunAftSimulator.m program generates an approximately similar spatial distribution of earthquakes with the NIED Fnet catalog data.

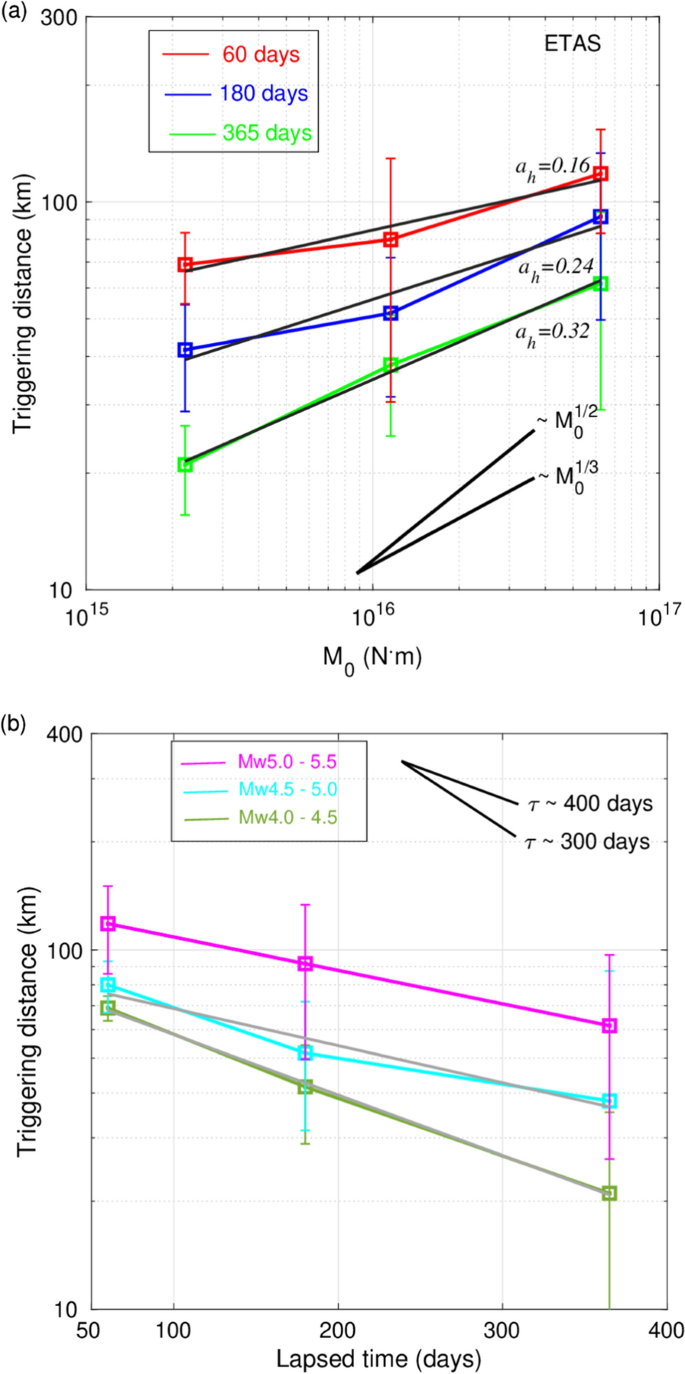

We calculated the number of clusters and estimate the triggering distance using the same method shown in “Methods” section. For each ETAS catalog, we prepared 20 simulated data catalogs in which origin times are randomly changed, and obtained the average number of clusters to estimate the triggering distance. The triggering distances were averaged for the results of the ten ETAS catalogs (Additional file 1: Figures S5–S7). Figure 9a shows the relation of the average triggering distances to the seismic moment. The slope is estimated to be about 0.2. Figure 9b shows the lapsed time dependence of the triggering distance. The triggering distances almost exponentially decay with a time constant \(\tau\) of about 311 days. These results are well matched with those for the NIED Fnet catalog, suggesting that the successive earthquakes are explained by the seismicity described by the ETAS model. In addition, the AftSimulator.m program that is used here for synthetic ETAS catalogs generates background seismicity and aftershocks so that we have the benefit of knowing which events are the background and which are the triggered. Thus, instead of using our declustering method as described in “Methods” section, we use this knowledge in the aftershock removal step and obtain catalogs of background earthquakes. We find that ETAS declustering tends to remove many earthquakes. On average, about 62% of earthquakes were identified as aftershocks by the ETAS declustering method. This high percentage is due to the fact that ETAS declustering accounts for secondary triggering. For each background catalog, we prepared 20 simulated data catalogs in which origin times are randomly changed and measured the triggering distance. However, since the generated background catalogs come from a random process, about 50% of the curve of the cluster number versus the distance for simulated catalog does not merge with that for the background one. This is contrary to the cases for the real data, in which 90% of the curves merge. These results suggest that the triggering process at long distances is related to the aftershock activity.
Estimation of triggering distance using ETAS parameters
Here we explain the power law between the triggering distance and seismic moment shown in Fig. 7. Following Chu et al. (2011), we assume that the term \({\left(x{x}_{i}\right)}^{2}+{\left(y{y}_{i}\right)}^{2}\) in Eq. (3) represents the distance from a given mainshock to generate its offspring earthquakes (i.e., triggering distance, \(D\)):
We suppose that the triggering distance is determined by, for example, additional stress caused by a large earthquake. As a result, D can be related to the seismicity rate \(h\), which is the second term on the righthand side of Eq. (1):
where s represents a source event. When analyzing seismic activity at the global scale, it may be preferable to use the anisotropic spatial distribution of earthquakes to account for the sphericity of the Earth (Ogata 1998, 2004; Ogata et al. 2003; Chu et al. 2011). However, here we use the isotropic spatial distribution assumption for the hypocenters for simplicity.
Parameter d in Eq. (3) is introduced to avoid a singularity in the function \(g\), and the triggering distance is several tens of kilometers. Hence, assuming \(d\ll D\), we relate the function \(h\left(x,y,t\right)\) to \(D\) by
Substituting the equation relating the seismic moment with the moment magnitude (Hanks and Kanamori 1979), which is expressed as
into Eq. (7), we obtain the following equation:
where
From Eq. (11), the seismicity rate is represented by
The parameters \({a}_{h}\) and \({b}_{h}\) in Eqs. (10) and (11) are expressed only by ETAS parameters. Using ETAS parameters at various regions reported in previous studies (Table 3), we calculated \({a}_{h}\) in Eq. (10) for Japan (Tohoku region, Central and Western Honshu, and all of Japan) (Ogata and Zhuang 2006), California (Seif et al. 2017), China (Sichuan Province) (Guo et al. 2015), and Italy (Lombardi 2016). The results summarized in Table 4 show that predicted \({a}_{h}\) values are estimated to be about 0.1–0.3 for these regions. Large \({a}_{h}\) are estimated for Tohoku and Sichuan, where large \(\alpha\) and \(\gamma\) are obtained, as predicted from Eq. (10) for \(q\ge 1\). These predicted \({a}_{h}\) values match pretty well with those obtained from the real data in Fig. 7: 1/5 to 1/4. This consistency between the observed and predicted \({a}_{h}\) values imply that clustering of successive earthquakes in space and time is well explained by the ETAS model.
Triggering mechanisms
Several mechanisms have been proposed to explain the spatiotemporal clustering of earthquakes. Static stress changes caused by deformation in the vicinity of a large earthquake may cause Coulomb stress changes on seismic fault planes (i.e., King et al. 1994; Stein 1999; Hardebeck et al. 1998; Freed 2005; Toda et al. 2011a, b). Viscoelastic relaxation, which is caused by viscous flow in the lower crust or upper mantle after the occurrence of a moderate to large earthquake may also change the stress condition of the fault plane (e.g., Freed and Lin 2001). Large earthquakes may cause crustal fluids to migrate, generating fluid pore diffusion. Such processes may decrease the effective normal stress on seismic faults in the crust or plates and lead to the triggering of other earthquakes (Sibson et al. 1975; Sibson 1981; Hickman et al. 1995). Dynamic stress changes associated with the passage of seismic waves excited by a large earthquake are also another possible mechanism to trigger earthquakes at larger distances (e.g., Gomberg and Johnson 2005; Felzer and Brodsky 2006). Dynamic stress change has been used at various regions to explain farfield triggering, such as: in the United States (Hill et al. 1993; Prejean et al. 2004), Tonga island (Tibi et al. 2003), and Iceland (Arnadottir et al. 2004). Successive earthquakes are found to occur several tens of kilometers away from the source events, and the passage of seismic waves seems to be a more plausible triggering mechanism. Seismic activity dynamically triggered at a given location begins not only with the arrival of P waves from the source event but during or after the arrival of the largeamplitude Love or Rayleigh waves (Hill and Prejean 2006).
The obtained relations of the triggering distance with the seismic moment and lapse time may not directly reveal the mechanism of successive earthquakes. However, we examine the Coulomb stress changes caused by large earthquakes as one of the possible mechanisms. Although the triggering distances we estimated are up to about 500 km and this mechanism is often used to identify the triggering mechanism of nearby large earthquakes through various case studies (Hardebeck et al. 1998; Toda et al. 2008; Ishibe et al. 2017).
The change in the Coulomb failure function (\(\Delta \mathrm{CFF}\)) is defined as \(\Delta \mathrm{CFF}=\Delta \tau +{\mu }^{^{\prime}}\Delta \sigma\), where Δτ is the shear stress change, Δσ is the normal stress change, and \({\mu }^{^{\prime}}\) is the apparent coefficient of friction (e.g., Reasenberg and Simpson 1992). We calculated ΔCFF for two nodal planes of a dependent event using a moment tensor solution of its source event. We calculated ΔCFF using the Coulomb3.3 program provided by the US Geological Survey (https://www.usgs.gov/software/coulomb3). Because the global CMT catalog only provides a moment tensor solution assuming a point source, we assume the appropriate fault length, L, and width, W, of a source event using an empirical relation for the magnitude and fault size presented in Wells and Coppersmith (1994): \(L={10}^{2.44+0.59{M}_{w}}\) and \(W={10}^{1.01+0.32{M}_{w}}\). We made all calculations in an elastic halfspace with a shear modulus of \(32\) GPa and a Poisson’s ratio of 0.25. The source is assumed to be the source event of each cluster and the receivers are all dependent events belonging to that cluster. We examined 0.2, 0.4, and 0.6 as the coefficient of friction, because many various case studies indicate that the value of \({\mu }^{^{\prime}}=0.4\) yields strong correlations between earthquake occurrence and the \(\mathrm{\Delta CFF}\). \(\Delta \mathrm{CFFs}\) were calculated for both nodal planes determined from the centroid moment tensor solution. Here we used a nodal plane that shows a larger \(\Delta \mathrm{CFF}\).
Figure 10 shows an example of the frequencies of ΔCFF for \({\mu }^{^{\prime}}=0.4\). ΔCFF tends to be widely distributed and most values are distributed around 0 Pa. For a threshold stress of \({10}^{3}\) Pa, which is tentatively set by considering the tidal effect (Tanaka et al. 2002a, b), the percentage of dependent events that satisfy the triggering condition is less than 40% for magnitudes larger than 6: the percentages are 28%, 30%, and 30% at \({M}_{w}\ge 7.0\); 28%, 28%, and 24% at \(6.5\le {M}_{w}<7.0\); and 37%, 37%, and 36% at \(6.0\le {M}_{w}<6.5\) for \({\mu }^{^{\prime}}=0.2, 0.4\), and 0.6, respectively. When we set the threshold at 0 Pa, the percentages increase to be larger than about 60%: for \({\mu }^{^{\prime}}=0.2, 0.4\), and 0.6, they are 74%, 74%, and 71% at \(6.0\le {M}_{w}<6.5\); 72%, 69% and 59% at \(6.5\le {M}_{w}<7.0\); and 63%, 67% and 61% at \({M}_{w}\ge 7.0\), respectively. Note that the earthquakes for which we analyze ΔCFF, which are earthquakes within the triggering distance, include earthquakes that randomly occur, as described in “Analysis of global CMT catalog” section. Considering the magnitude range \({M}_{w}\ge 7.0\), the 67% of successive earthquakes located in regions with positive ΔCFF represent about 6% of the total number of earthquakes for \({M}_{w}\ge 7.0\). This is almost same as the percentage of 8% estimated by Parsons (2002), who analyzed global CMT earthquakes with \({M}_{w}\ge 7.0\), supposing that the triggering mechanism is shear stress increase on the fault plane.
The estimated percentages of the dependent earthquakes located in positive ΔCFF may support that static stress change generated by a source event is the triggering mechanism. However, it is noteworthy to mention again that the triggering distance is proportional in logarithmic scales to the seismic moment with a power of 1/5 to 1/4, which is smaller than the value of 1/3 that is derived from the scaling relation of static stress changes to the seismic moment. Therefore, the successive earthquakes may be generated not only by such static strain but also by other mechanisms.
Comparison of triggering distance with the results in previous studies
The triggering distances estimated in this study are in good agreement with those from previous studies. For instance, Lomnitz (1996) searched for events that occurred within a space–time window from the occurrence of any \(M\ge 7.0\) mainshocks in a worldwide earthquake catalog. He found that earthquakes with a magnitude \(M\ge 7.0\) were triggered at the distance ranging from 300 to 1000 km. Parsons (2002) analyzed earthquakes with \({M}_{\mathrm{s}} \ge 7.0\) in the global CMT catalog and calculated the shear stress change between source events and dependent events that occurred within a distance of ± 2° from the source earthquake. He found that earthquakes that are subject to a shear stress change of \(\ge\) 0.01 MPa occurred up to 240 km from the source events. Huc and Main (2003) analyzed the global CMT data catalog (\({M}_{w} \ge 5.0\)) and examined events that occurred within a time window of 30 days and a horizontal distance of 1500 km from the source events. They found no systematic triggering effect at a distance greater than the thickness of the Earth’s lithosphere (100–150 km). Gasperini and Mulargia (1989) analyzed earthquakes with a magnitude M \(\ge\) 4.0 in and around Italy using the “influence region principle,” which states that the lithospheric loads are modified by the occurrence of an earthquake within a certain time and distance from its origin. They found that triggering distances were in the range from \(80\,\mathrm{ to }\,140\,\mathrm{ km}\). Their studies are not inconsistent with our results, as they are distributed almost in the same range as our estimation (Table 5).
Our results show an exponential decay of the triggering distance with lapsed time, and the characteristic time is about \(400\) days (Fig. 8b, d). This is not the same as the results of Huc and Main (2003) that showed that the triggering distance increases with time following a powerlaw growth characterized by \({t}^{H}\) with \(H=0.050.06\), which results from a homogeneous diffusion process (e.g., Marsan et al. 2000). Such growth may be recognized, because aftershocks occurring close to the mainshock are included in their analyses. However, including or removing aftershocks close to the hypocenter of the mainshock may introduce some differences in temporal changes of the triggering distance, which suggests a different triggering mechanism.
On the other hand, several studies use the linear seismic density method to understand the triggering process of mainshock (Felzer and Brodsky 2006; RichardsDinger et al. 2010). We apply the linear density method to the successive earthquakes we define instead of using all earthquakes. Following the computation procedure as shown in Additional file 1: Figure S1b of RichardsDinger et al. (2010), we stack all the source events of clusters determined in “Results” section and sort all their dependent events by distance from their source event. We calculate the interval distance between nearby dependent events (we term that distance “midpoints”, the distance of two nearby midpoints is termed the width (\({W}_{i}\))). We calculate the linear seismic density for each width as the reciprocal of \({W}_{i}\) (\(1/{W}_{i}\)). We then plot the obtained linear seismic density as a function of distance. Previous studies indicate that the linear seismicity density gradually decreases with distance from mainshocks and fluctuates at a background level at far distances. The distance where the slope of linear seismicity density changes represents the limit range of triggering by mainshocks. Additional file 1: Figures S8 and S9 plot the linear seismicity density of dependent earthquakes versus the distance from the source events for global CMT and Fnet catalogs, respectively. The triggering distances we estimated in “Analysis of global CMT catalog” and “Analysis of NIED Fnet catalog” sections are also indicated. For the global CMT catalog, the linear seismicity densities at small magnitude ranges of \({M}_{w}\le\) 6.5 show some trend changes at the distances less or around the triggering distances we estimated. Such trends are significant for short lapse times of 60 days but diminish with increasing lapse time. Contrary, the linear seismicity density in a large magnitude range is scattered and sparse so that no systematic feature is recognized. The linear seismicity density for the Fnet catalog is also scattered and no significant trend is recognized even for small magnitude ranges. This is probably because the small numbers of data are not enough to show up a trend change in the plots which are the cases of a large magnitude range of global CMT catalog and all of Fnet catalog. Alternatively, our method may determine the triggering distances for such a smallsized data set.
Conclusions
We have developed a method to systematically detect successive earthquakes for a wide magnitude range and applied the method to recent reliable global and regional catalogs. The detected successive earthquakes are compared with those obtained from simulated data in which the earthquakes are assumed to randomly occur over time to evaluate the triggering distance, which defines the distance range, where successive earthquakes occur. We obtained the following main results:

1.
The number of clusters of successive earthquakes for real data is always larger than the number for simulated data at shorter distances, and becomes similar to that for simulated data at long distances. This suggests that large earthquakes trigger nearby large earthquakes beyond the socalled aftershock areas. The triggering distances are, for example, estimated to be 65 km for 4.0 \({\le M}_{w}<4.5\) and 600 km for \({M}_{w}\ge\) 7.0 at a lapsed time of 60 days after the occurrence of the source event. These triggering distances are stably estimated without significant effects of the removal of aftershocks. Analyses of different regions using global and regional catalogs indicate that the triggering distances slightly change in different tectonic settings.

2.
Analyses of global catalog data showed that successive earthquakes are distributed along all types of plate boundaries, such as subduction, transform, and divergence boundaries. The percentage of the number of successive earthquakes with respect to the total number of earthquakes in each region ranges from approximately 8% to 20% for earthquakes with \({M}_{w}\ge 5.5\). For small and moderate earthquakes that occurred in and around the Japanese islands from 2001 to 2010, which are summarized in the NIED Fnet catalog, successive earthquakes account for approximately 3% to 14% of earthquakes with a magnitude 4.0 \({\le M}_{w}<5.5\).

3.
The triggering distance increases, being proportional to about 1/5 to 1/4 power of the seismic moment of the source event for a wide magnitude range of \({M}_{w}\ge\) 4.0. The triggering distance exponentially decreases with time.

4.
We analyzed pseudo data catalogs that conform to the ETAS model and found that the triggering distances are well matched with the results obtained from the real data catalogs. We further derived scaling relations between the triggering distance and seismic moment using ETAS parameters. The predicted relations are well matched with the observed exponent of 1/5 to 1/4. These consistencies strongly suggest that the estimation of ETAS parameters enables us to evaluate the occurrence possibility of successive earthquakes. Especially for large earthquakes, such evaluation may be useful for estimating seismic hazards.

5.
Static stress changes in the surrounding medium introduced by a source event may partially play a role in generating successive earthquakes, because more than a half of the successive earthquakes occur at regions with positive ΔCFF.
Availability of data and materials
We used the source parameters for earthquakes in the global CMT catalog (www.globalcmt.org) and NIED Fnet catalog (https://www.fnet.bosai.go.jp/event/search.php?LANG=en). We used the following hypocenters to analyze the duration of the aftershock sequences: Southern California Earthquake Data Center, USA (https://scedc.caltech.edu/) for the 1992 \({M}_{w}\) 7.3 Landers earthquake; JMA (http://www.data.jma.go.jp/svd/eqev/data/bulletin/index_e.html) for the 1993 \({M}_{w}\) 7.8 Hokkaido–Nansei–Oki earthquake and the 1994 \({M}_{w}\) 7.7 Sanriku–Oki earthquake; Kandilli Observatory and Earthquake Research Institute, Turkey (http://www.koeri.boun.edu.tr) for the 1999 \({M}_{w}\) 7.6 Izmit earthquake; and the GeoNet, New Zealand (https://www.geonet.org.nz/) for the 2010 \({M}_{w}\) 7.0 Darfield earthquake. MATLAB software packages Coulomb3.3 (https://www.usgs.gov/software/coulomb3), ZMAP 7 (http://www.seismo.ethz.ch/en/researchandteaching/productssoftware/software/ZMAP/), RunAftSimulator.m (https://web.archive.org/web/20200712004939/https://pasadena.wr.usgs.gov/office/kfelzer/AftSimulator.html) and m_map (Pawlowicz 2020) (https://www.eoas.ubc.ca/~rich/map.html) were used to calculate the Coulomb stress change, to analyze seismicity, to simulate the ETAS catalog, and to produce maps, respectively.
Abbreviations
 CMT:

Centroid moment tensor
 ETAS:

Epidemic type aftershock sequence
 NIED:

National Research Institute for Earth Science and Disaster Prevention
 ΔCFF:

Coulomb failure function
