A two-stage deflection system for the extension of the energy coverage in space plasma three-dimensional measurements
Earth, Planets and Space volume 75, Article number: 91 (2023)
The in situ measurement of charged particles plays a key role in understanding space plasma physics. Velocity distribution functions of ions and electrons have been acquired with electrostatic analyzers onboard spacecraft. Since conventional energy analyzers (e.g., top-hat electrostatic analyzers) have essentially a two-dimensional field of view, the solid angle coverage is achieved with the aid of spacecraft spin motion or with additional entrance deflection systems in front of the electrostatic analyzer. In the latter case, however, the full angular scan is realized only in the lower energy range (typically only up to 5–15 keV/e), due to the limitation of the electric field applied to the deflector. Here we propose a novel deflection system for extending the energy coverage up to tens of keV. This is especially useful for plasma observations in situations where the anisotropy of the energetic part (> 10 keV) of charged particles plays an essential role in plasma dynamics and hence is of significant interest.
Direct measurement of plasma particles is a fundamental approach in studying space and planetary science. Acquisition of three-dimensional velocity distribution functions has been widely made using electrostatic analyzers (ESAs), by which the energy per charge and direction of each incoming charged particle can be identified (e.g., Carlson and McFadden 1998). Since conventional ESAs (e.g., top-hat electrostatic analyzers, see Carlson et al. 1983, Young et al. 1988) have a disk-shaped, essentially two-dimensional field of view, an additional mechanism is required for covering a broad solid angle. The coverage is demanded to be as close to as 4π steradian, although often compromised at narrower values. One of the conventional methods to obtain a wide solid angle coverage is to utilize a motion of a platform (e.g., spacecraft spin and actuator platform). On the other hand, a deflector (DFL) system is a typical solution on a three-axis-stabilized spacecraft (Carlson and McFadden 1998; Yokota et al. 2005; Young et al. 2007; McFadden et al. 2015; Desai et al. 2016; McComas et al. 2017). A pair of electrodes (Fig. 1a) electrostatically deflect incoming particles before they enter an ESA. By sweeping the applied voltages on the electrodes, the elevation angle of the particles’ incoming direction is scanned. The 2π steradian field of view can be covered in combination with the ESA’s azimuthal field of view. Such deflectors typically offer ~ 90° angular coverage (Fig. 1a), but only for the limited energy range (typically up to 5–15 keV/e). The angular coverage becomes narrower for the higher energy range (Fig. 1b) unless the electric field applied to the gap between DFL electrodes is much higher than those applied to the gap between ESA electrodes. Since the higher electric field needs excessive requirements/resources on the high-voltage power supply and/or leads to the risk of discharging, the angular coverage in the higher energy range has been compromised in most previous applications.
The goal of this work is to achieve better angular coverage for a higher energy range (> 15 keV/e) without introducing a higher voltage for DFL than those for ESA. The broader angular coverage is essential for space plasma measurements in general, and specifically in the situation where the anisotropy provides important clues for revealing plasma structures (e.g., where the finite Larmor radius effect is observed) or analyzing wave-particle interaction.
Concept and design

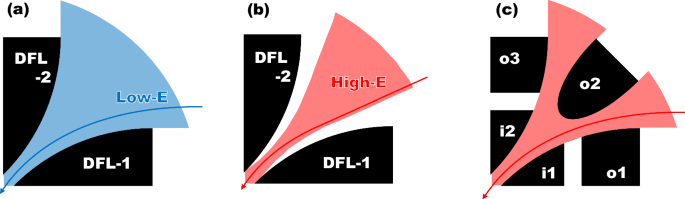

To realize the broader angular coverage for the higher energy, here we introduce the two-stage DFL system (Fig. 1c). In addition to a conventional pair of deflection plates (“i1” and “i2”), another set of deflectors (“o1”, “o2”, and “o3” in) are implemented. Under the voltage limitation, this concept essentially doubles the deflection capability, raising the uppermost energy for the ~ 90° coverage. On the other hand, the size is not necessarily doubled as also schematically shown in Fig. 1.
The detailed structure based on this concept is shown in Fig. 2. The entrance DFL system, which is the main subject of this paper, is shown in the upper half (higher than 90 mm along the vertical axis). The lower half is a cusp-type ESA for energy measurements (Kasahara et al. 2006, 2018; Yokota et al. 2017; Ogasawara et al. 2018), which has an advantage in the higher-energy coverage compared to conventional top-hat type ESA (Carlson et al. 1983, Young et al. 1988). At the exit of the ESA, particle trajectories are radially inward because it is necessary to introduce ions into a linear-electric field time-of-flight mass analyses unit (Möbius et al. 1990; Hamilton et al. 1990; McComas and Nordholt 1990; Yokota et al. 2005, 2021; Gilbert et al. 2010) attached below the ESA (the detailed design and performance of the mass spectrometer are beyond the scope of the paper).
Here we aimed at covering a hemispherical (“ − 45° ± 45°” elevation angle) field of view like IMA (Yokota et al. 2005) onboard Kaguya, compared to torus-shaped (“0° ± 45°” elevation angle) DFL systems (Carlson and McFadden 1998; Young et al. 2007; McFadden et al. 2015; Desai et al. 2016; McComas et al. 2017). This choice is beneficial in the case that spacecraft structures below the sensor substantially interfere with the (lower hemisphere of the) field of view.
Most of the DFL electrodes have a curvature radius of 40 mm, while the radius of one of them (“i2”) was set to 50 mm after iterative simulations. The minimum gaps between electrodes are > 4 mm so that the imposed electric field is < 1.5 kV/mm (and typically ~ 1 kV/mm) at maximum with the maximum applied voltage of 5 kV. This maximum voltage (5 kV) is the same as that of ESA (but with the opposite polarity) since it is our prerequisite in this work. Note that the capability of the full angular coverage to higher energy is enhanced by the higher electric field. Nevertheless, we put the above threshold (1.5 kV/mm) for the DFL gap to avoid the risk of electric discharging and the decrease of the geometric factor. Here we use only positive deflection voltages to avoid producing beams of energetic photoelectrons, which could contaminate other measurements. Such photoelectrons may also lead to the failure of the high-voltage power supply.
By sweeping the set of applied voltages applied to the DFL electrodes (see Table 1), it can achieve ~ 90° coverage up to ~ 25 keV/e. Most importantly, the ratio VDFL/VESA is less than 2, where VDFL is the deflector voltage and VESA is the ESA voltage. This is compared to the typical value of ~ 4 for ± 45° deflection in a conventional DFL system (Carlson and McFadden 1998). This indicates that the upper limit of our DFL energy coverage is doubled compared to the conventional DFL system. Figure 3 shows that the conventional trend is roughly evaluated by EMAX (keV/e) = (1.5–2.5) × VDFL_MAX, where EMAX is the highest energy/charge of ± 45° deflection and VDFL_MAX is the upper limit of the voltage difference applied to the deflection electrodes. The uppermost energy of our DFL system is substantially higher than this trend.
We have fabricated the deflector system as well as the ESA, followed by a time-of-flight mass analyses unit (Gilbert et al. 2010; Yokota et al. 2021). An N2+ ion beam is injected into our ion sensor set inside a vacuum chamber. The transmittance (acceptance) of ions was measured and compared to numerical simulation results (Fig. 4). The beam energy/charge EBEAM was fixed at 5 keV/e while VESA and VDFL are varied. The ratio VDFL/VESA was varied following Table 1. The incoming direction of the beam, referred to as the elevation angle, was varied by rotating the sensor with a gimbal system inside the vacuum chamber.
The test result is consistent with the simulation in terms of the center positions and widths in energy and angle, indicating that the sensor works as per the design. The elevation angle differences between the experiment and simulation are typically less than 1°, which is reasonably smaller than the angular resolution. The central energy EBEAM/VESA is ~ 8, for which, again, the differences between the experiment and simulation are much smaller than the energy resolution (20–30%). This ratio (EBEAM/VESA ~ 8) is converted to EBEAM /VDFL ~ 5 since VDFL/VESA is ~ 1.6 at maximum (Table 1). If we apply a moderate voltage of 5 kV (then the electric field is ~ 1 kV/mm, which is moderate to avoid discharging), the uppermost energy for 90° coverage is 25 keV/e.
Summary and discussion
In this paper, we designed the two-stage DFL system to double the energy coverage for acquiring three-dimensional plasma velocity distribution functions and fabricated a test model to verify the concept. The test result proved that the sensor works as per the design, achieving energy coverage up to 25 keV/e of the deflector system with the maximum applied voltage of 5 kV (EBEAM/VDFL ~ 5). Note that the electric field is ~ 1 kV/mm in our current design, which is moderate compared to 2 kV/mm or higher for other instruments (Young et al. 2007; McComas et al. 2017). For example, JADE-E onboard the JUNO spacecraft has an exceptionally high EBEAM/VDFL (~ 3.5) for a single-stage deflectors system (Fig. 3), which can be attributed to the strong electric field at the deflector. Our design achieves a higher EBEAM/VDFL with a moderate electric field. Even higher energy coverage can be achieved if a stronger electric field is applied. However, it should be noted that the stronger electric field needs a narrower DFL gap resulting in a lower geometrical factor (sensitivity) and/or a higher voltage difference incorporating more resources and a higher risk of discharging.
The two-stage DFL system has another possible advantage in terms of sensor sensitivity. While a homogeneous sensitivity for 2π-steradian would be preferred for most applications, there may be some cases in which different sensitivities for different looking angles are demanded (e.g., in the solar wind). While the DFL design in this paper does not introduce a substantial difference in sensitivity for different looking directions, it is possible to deliberately vary the geometrical factors between angles “0° to − 45°” and “− 45° to − 90°”.
In this paper, we illustrated the advantage of our DFL design for a hemispherical (“− 45° ± 45°” elevation angle) field of view (Yokota et al. 2005; 2021). While the verification studies are conducted by ions, our design can also be applied to electron measurements. Similar energy–angle responses are obtained through simulations for the electron incidence. In the electron case, the DFL voltages are kept positive, while the ESA voltage is switched to positive.
Adoption of our two-stage DFL system, which doubles the energy range of the full angular scan, is upon the trade-off with the resource. The proposed DFL system needs additional electrodes and applied high voltages (Fig. 1). While it does not double the size, it requires 5 independent high-voltage outputs (5 sets of opt-couplers), compared to conventional DFL systems working with 2 high-voltage outputs (2 sets of opt-couplers). This results in additional power consumption and mass of the sensor unit. To mitigate this, a possible measure is to connect the DFL-o3 electrode to DFL-i2 to reduce the number of high-voltage output (note that the applied voltages for these electrodes are the same in Table 1), at the expense of finer control of the deflection.
Our deflection system, enabling the extension of the energy range of three-dimensional velocity distribution function measurements, will be useful for future solar system science missions especially when energetic ions (> 10 keV) are the key target.
