A novel high accuracy finitedifference timedomain method
Earth, Planets and Space volume 76, Article number: 5 (2024)
Abstract
The finitedifference timedomain (FDTD) method is widely used for numerical simulations of electromagnetic waves and acoustic waves. It is known, however, that the Courant condition is restricted in higher dimensions and with higher order differences in space. Although it is possible to relax the Courant condition by utilizing the thirddegree difference in space, there remains a large anisotropy in the numerical dispersion at large Courant numbers. This study aims to reduce the anisotropy in the numerical dispersion and relax the Courant condition simultaneously. A new thirddegree difference operator including the Laplacian is introduced to the timedevelopment equations of FDTD(2,4) with second and fourthorder accuracies. The present numerical simulations have demonstrated that numerical oscillations due to the anisotropic dispersion relation are reduced with the new operator.
Graphical Abstract
Introduction
The FDTD (finitedifference timedomain) method has been used for more than a half century for electromagnetic analyses (Yee 1966; Taflove 1980). The timedevelopment equations of the FDTD method are derived by applying the finite difference of secondorder accuracy in both time and space to Maxwell’s equations. The Yee (staggered) grid system is adopted in the spatial differences so that the numerical divergence is always free for both electric and magnetic fields. The FDTD method has been used for acoustic analyses as well (Ikata and Tay 1998). Numerical analyses with the FDTD method have been performed for wide range of studies in the Earth, planetary, and space sciences, such as geomagnetically induced current (GIC) (Nakamura et al. 2018; Watari et al. 2019), extremely low frequency (ELF) and very low frequency (VLF) propagations in the Earthionosphere waveguide (Cummer 2000), ground penetrating radars (Ding et al. 2021), kinetic simulations of space plasma (Kimura and Nakagawa 2008; Nakagawa and Kimura 2011; Umeda 2012; Umeda and Fukazawa 2015; Fujiwara et al. 2022), infrasound associated with volcanic activities (Yokoo et al. 2019; Ishii and Yokoo 2021), and seismic wave (Takenaka et al. 2017).
Numerical oscillations occur due to the error between the numerical phase velocity and the theoretical phase velocity. The numerical errors in the phase velocity are reduced with higher order finite differences in space. The fourthorder spatial difference (Fang 1989; Petropoulos 1994) is used in the FDTD(2,4) method, where the FDTD method using tth and xthorder accuracy in time and space, respectively, is called FDTD(t,x). Although the numerical dispersion relation of FDTD(2,4) is closer to the theoretical one than that of FDTD(2,2), the Courant condition is more restricted. The numerical dispersion relations show that the Courant conditions of FDTD(2,2) and FDTD(2,4) in one dimension are \(C<1\) and \(C< 6/7 \sim 0.857\), respectively. Smaller \(\Delta t\) and larger number of time steps are required for satisfying the Courant condition.
The explicit nonstandardtype methods (Hadi and PiketMay 1997; Cole 1997a, b; Kudo et al. 2002; Yang and Balanis 2006; Ohtani et al. 2009) use additional diagonal difference terms, which correct the numerical dispersion and reduce anisotropic errors. However, optimal coefficients of the additional terms depend on wavenumber or frequency. Furthermore, the Courant condition of the nonstandardtype methods is restricted similarly with the standard FDTD methods.
For relaxation of the Courant condition, implicit methods (Sun and Trueman 2003; Yang et al. 2006; Chen et al. 2018; Namiki 1999; Cooke et al. 2008; Wang et al. 2013; Zhou et al. 2015; Xie et al. 2020) are commonly used. However, implicit equations need larger computational costs than explicit equations because they are solved numerically with iterative convergence or matrix inversion.
Recently, a new numerical method has been developed for relaxing the Courant condition of the FDTD(2,4) (Sekido and Umeda 2023). To derive the timedevelopment equations of this method, the thirddegree difference terms are appended to FDTD(2,4). By a bruteforce search, optimal coefficients of the thirddegree difference terms are obtained, which minimize phase velocity errors and satisfy the Courant condition. However, there remains an anisotropy in the numerical dispersion, which results in numerical oscillations at a specific propagation angle.
In the present study, a nondissipative and explicit method is developed for reducing the anisotropy in the numerical dispersion by appending a new Laplacian operator to FDTD(2,4).
Numerical dispersion relation
Maxwell’s equations in vacuum are written as follows:
where \({\varvec{E}}\) is electric field, \({\varvec{B}}\) is magnetic field, and c is the speed of light. In the present study, the timedevelopment equations are obtained by the Taylor expansion of Maxwell’s Eq. (1) as follows:
These equations consist of the odddegree difference terms only. If evendegree difference terms are included, then a numerical dissipation occurs.
The following timedevelopment equations are provided as the discretized form of Eqs. (2), in which thirddegree spatial difference terms including the Laplacian are appended:
where \(\mathcal{D}_{x}^{m,n}\) is a onedimensional mthdegree spatial difference operator with the nthorder accuracy, and \(\mathcal{L}_{x}^{m,n}\) is a new mthdegree spatial difference operator including the Laplacian with the nthorder accuracy. Note that \(\mathcal{D}_{z}^{1,n_1}=0\) and \(\mathcal{L}_{z}^{3,n_3}=0\) in two dimensions. By calculating the firstdegree difference with the present new operator \(\partial / \partial x = \mathcal{D}_{x}^{1,n_1} + \mathcal{L}_{x}^{3,n_3}\), the divergence free condition is satisfied for both electric and magnetic fields in the timedevelopment Eq. (3).
The firstdegree spatial difference operator in the x direction with the fourthorder accuracy \(\mathcal{D}_{x}^{1,4}\) is defined as follows (Sekido and Umeda 2023):
Second order
This subsection provides a numerical scheme with firstdegree difference operator with fourthorder accuracy \(\mathcal{D}_{x}^{1,4}\) and the thirddegree difference operator including the Laplacian with the secondorder accuracy \(\mathcal{L}_{x}^{3,2}\). The operator \(\mathcal{L}_{x}^{3,2}\) is defined as follows:
where \(\alpha _{1}\) and \(\alpha _{2}\) are coefficients for \(\partial ^3/\partial x^3\) terms and \(\partial ^3/(\partial x \partial y^2)\) (or \(\partial ^3/(\partial x \partial z^2)\)) terms, respectively. The timedevelopment Eq. (3) has the fourthorder accuracy in space with the coefficient of \(\alpha _1 = \alpha _2 = 1/24\) but has the secondorder accuracy with other values as shown in Eqs. (2). Here, the seconddegree difference operator with the secondorder accuracy \(\mathcal{D}_{x}^{2,2}\) is defined as follows (Sekido and Umeda 2023):
This scheme is referred to as “scheme 1” in this paper.
The dispersion relation is derived from the timedevelopment Eq. (3) with Eqs. (4) and (5) as follows:
where \(C_{x} = c\Delta t/\Delta x\), \(C_{y} = c\Delta t/\Delta y\), and \(C_{z} = c\Delta t/\Delta z\) is the Courant number. Numerical frequency and wavenumber are defined as \(\mathcal{W} = \sin \left( \omega \Delta t/2 \right)\) and \(\mathcal{K}_{x} = \sin \left( k_{x} \Delta x/2 \right)\), respectively. Note that \(\mathcal{K}_{z}=0\) in two dimensions. The righthand side must take a value in the range from 0 to 1 for stability of the numerical simulations. The Courant condition is satisfied for \(C \le 6/7\sqrt{2} \sim 0.606\) and \(C \le 6/7\sqrt{3} \sim 0.495\) in two and three dimensions, respectively, at \(\alpha _{1}=\alpha _{2}=0\) and \(C=C_{x}=C_{y}=C_{z}\) (i.e., \(\Delta x = \Delta y = \Delta z\)). The previous study relaxed the Courant condition by adjusting the coefficient \(\alpha _{1}\) (Sekido and Umeda 2023).
Fourth order

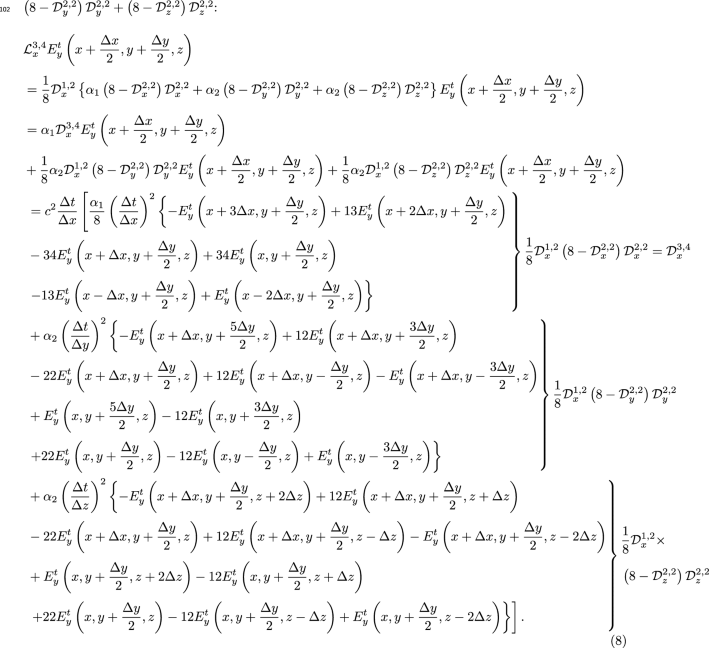

This subsection provides a numerical scheme with firstdegree difference operator with fourthorder accuracy \(\mathcal{D}_{x}^{1,4}\) and the thirddegree difference operator including the Laplacian with the fourthorder accuracy \(\mathcal{L}_{x}^{3,4}\). The operator \(\mathcal{L}_{x}^{3,4}\) is derived by replacing \(\mathcal{D}_{x}^{2,2} + \mathcal{D}_{y}^{2,2} + \mathcal{D}_{z}^{2,2}\) in Eq. (5) with \(\left( 8  \mathcal{D}_{x}^{2,2} \right) \mathcal{D}_{x}^{2,2} + \left( 8  \mathcal{D}_{y}^{2,2} \right) \mathcal{D}_{y}^{2,2} + \left( 8  \mathcal{D}_{z}^{2,2} \right) \mathcal{D}_{z}^{2,2}\):
This scheme is referred to as “scheme 2” in this paper. The detailed derivation of the operator \(\mathcal{D}_{x}^{3,4}\) is shown in Appendix 1.
The dispersion relation is derived from the timedevelopment Eq. (3) with Eqs. (4) and (8) as follows:
Note that \(\mathcal{K}_{z}=0\) in two dimensions.
Note that there is another type of the thirddegree difference operator with fourthorder accuracy:\(\begin{aligned} \mathcal{L}_{x}^{3,4} = \frac{1}{8} \mathcal{D}_{x}^{1,2} \left( 8  \mathcal{D}_{x}^{2,2} \right) \left( \alpha _{1} \mathcal{D}_{x}^{2,2} + \alpha _{2} \mathcal{D}_{y}^{2,2} + \alpha _{2} \mathcal{D}_{z}^{2,2} \right) \end{aligned}\)which is presented in Appendix 2.
Two dimensions
Optimal coefficients
A bruteforce search is performed in the same way as the previous study (Sekido and Umeda 2023) to find a set of optimal coefficients for the thirddegree difference operators. The optimal coefficients are determined to suppress the numerical instability and minimize the phase velocity error. The phase velocity is obtained by solving the dispersion relations for the angular frequency \(\omega\) and dividing the real part of \(\omega\) by the wavenumber k. The numerical error in the phase velocity is calculated as an average of the entire wavenumber space by the following equation:
The numerical error \(\varepsilon\) is a function of the coefficients \(\alpha _1\) and \(\alpha _2\) for a specific Courant number C. A set of optimal coefficients is searched such that \(\varepsilon\) is smallest under the condition of \(\textrm{Im}(\omega ) \le 0\). Hence, the optimal coefficients are obtained as a function of the Courant number C. Table 1 shows the sets of optimal coefficients for scheme 1 for \(0.5 \le C \le 1\). Table 2 shows the sets of optimal coefficients for scheme 2 for \(0.5 \le C \le 1\).
The timedevelopment equations with the firstdegree difference operator with fourthorder accuracy \(\mathcal{D}_{x}^{1,4}\) and the onedimensional thirddegree difference operators with fourthorder accuracy \(\mathcal{D}_{x}^{3,4}\) are developed in the previous study (Sekido and Umeda 2023), which is referred to as “Sekido23” in this paper.
Numerical error
The numerical errors in the phase velocity of schemes 1 and 2 are compared with those of Sekido23. Figure 1 shows the phase velocity errors \(\varepsilon\) as a function of the Courant number C. Panels (a–c) show the numerical errors in the entire wavenumber space, at \(\theta = {0}^\circ\) and at \(\theta = {45}^\circ\), respectively. Here, \(\theta\) denotes the propagation angle from the x axis. The black, red and blue lines show the numerical errors with Sekido23, schemes 1 and 2, respectively.
The three schemes suppress the numerical instabilities for \(0.61 \le C \le 1\) where FDTD(2,4) is unstable. Panel (a) shows that the numerical errors of the present schemes are smaller than those of Sekido23. Panel (b) shows that the numerical errors of the present schemes are smaller than those of Sekido23 at \(\theta = {0}^\circ\). Especially, the numerical errors of scheme 1 are smaller than those of scheme 2 for \(C \ge 0.96\). Panel (c) shows that the numerical errors of the present schemes tend to be close to those of Sekido23 at \(\theta = {45}^\circ\).
Figure 2 shows the dependence of the phase velocity errors on wavenumber with Sekido23, schemes 1 and 2. The horizontal and vertical axes are wavenumber \(k_x \Delta x\) and \(k_y \Delta y\), respectively. Panels (a–c) and (d–f) show the phase velocity errors with \(C=0.5\) and 1, respectively. Panels (d–f) show that the phase velocity errors with schemes 1 and 2 have smaller anisotropic errors than those with Sekido23 at \(C=1\). With scheme 2, the phase velocity errors are reduced for a wider range than with scheme 1.
Numerical results
Test simulations are performed with the same settings as the previous study (Sekido and Umeda 2023), i.e., \(c=10.0\), \(\Delta x=\Delta y=1.0\) and \(\Delta t=C\Delta x/c\). The same input current density is also imposed as the previous study (Sekido and Umeda 2023). The boundary conditions in both x and y direction are periodic.
Figure 3 shows the results of the numerical simulations. Panels (a–f) show the spatial profiles of the magnetic field \(B_z\) component with the combination of Sekido23, schemes 1 and 2 versus \(C=0.5\) and 1. The panels focus on the first quadrant of the simulation domain.
With both of the Courant number \(C=0.5\) and \(C=1\), the numerical simulations are stable with the present schemes as well as Sekido23. With \(C=0.5\), Panels (a), (c) and (e) show that the numerical oscillations occur at \(\theta ={0}^\circ\) with schemes 1 and 2, although the phase velocity errors with schemes 1 and 2 are smaller than those with Sekido23 as shown in Fig. 1. Panels (a–c) in Fig. 2 show that the phase velocity errors with schemes 1 and 2 are larger than those with Sekido23 at \(k_{x} \Delta x \approx 0.7\)0.9 and \(k_y=0\), which corresponds to the wavenumber of the numerical oscillations in Fig. 3. Panels (d) and (f) show that the numerical oscillations at \(C=1\) are reduced with the present schemes. There appear small numerical oscillations at \(\theta ={45}^\circ\) with scheme 1, while there are less numerical oscillations with scheme 2. This result agrees with Fig. 1, which shows that the numerical errors of scheme 1 at \(\theta ={45}^\circ\) are larger than those of the mean value in the whole directions.
Table 3 shows the computational time of the numerical simulations. The computational time is measured on the same processor and the same compiler as the previous study (Sekido and Umeda 2023). In those simulations, the electric field \(E_{x}\) and \(E_{y}\) components and magnetic field \(B_{z}\) component are computed only.
The computational time of the test simulations with \(C=0.5\) is 2 times as long as that with \(C=1.0\). At the same Courant number, the computational time increases as the number of operations increases. With \(C=1\), the computational time with schemes 1 and 2 are 1.052 and 1.604 times as long as that with Sekido23, respectively, although the numbers of operations with schemes 1 and 2 are 1.4 and 2.0 times as large as those with Sekido23, respectively. The numbers of memory load with schemes 1 and 2 are 0.846 and 1.308 times larger than those with Sekido23, respectively. The number of operation, memory load and memory store contribute in the ratio of 1.00 : 3.89 : 1.96 to the computational time. The computational time is obtained from the sum of the memory access time and the processing time of operations. The number of floatingpoint operations is not proportional to the computational time, since the floatingpoint operations cost shorter computational time than the memory accesses.
Three dimensions
Optimal coefficients
Table 4 shows the sets of optimal coefficients for scheme 1 for \(0.4 \le C \le 1\). Table 5 shows the sets of optimal coefficients for scheme 2 for \(0.4 \le C \le 1\).
Numerical error
The numerical errors in the phase velocity of schemes 1 and 2 are compared with those of Sekido23. Figure 4 shows the phase velocity errors \(\varepsilon\) as a function of the Courant number C. Panels (a–d) show the numerical errors in the entire wavenumber space, at \((\theta ,\phi )=({0}^\circ ,{0}^\circ )\), at \((\theta ,\phi )=({45}^\circ ,{0}^\circ )\) and at \((\theta ,\phi )=({45}^\circ ,{45}^\circ )\), respectively. Here, \(\theta\) and \(\phi\) denote zenith and azimuth angles, respectively. The black, red and blue lines show the numerical errors with Sekido23, schemes 1 and 2, respectively.
The three schemes suppress the numerical instabilities for \(0.4 \le C \le 1\). Panel (a) shows that the numerical errors of the present schemes are smaller than those of Sekido23. The numerical errors of scheme 2 in the entire wavenumber space are smaller than those of scheme 1. Panels (b) and (c) show that the numerical errors are smaller with the present schemes than with Sekido23 at \((\theta ,\phi )=({0}^\circ ,{0}^\circ )\) and \((\theta ,\phi )=({45}^\circ ,{0}^\circ )\). Panel (d) shows that the numerical errors of the present schemes tend to be close to those of Sekido23 at \((\theta ,\phi )=({45}^\circ ,{45}^\circ )\).

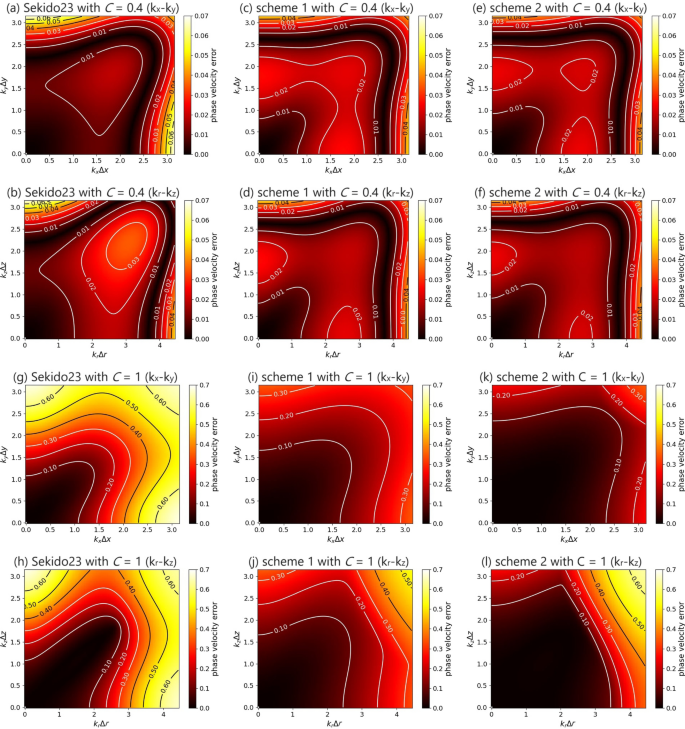

Figure 5 shows the dependence of the phase velocity errors on wavenumber in the \(k_x\)\(k_y\) and \(k_r\)\(k_z\) planes at \(C=1\). Here, we define the \(x=y, z=0\) line as an axis “r” (\((\theta ,\phi )=({45}^\circ ,{0}^\circ )\)). Panels (a–f) and (g–l) show the phase velocity errors with \(C=0.4\) and 1, respectively. Panels (g–l) show that the anisotropy in the phase velocity errors with schemes 1 and 2 is smaller than that with Sekido23. With scheme 2, the phase velocity errors are reduced for a wider range than with scheme 1.
Numerical results
Test simulations are performed with the same settings as the previous study (Sekido and Umeda 2023), i.e., \(c=10.0\), \(\Delta x=\Delta y=\Delta z=1.0\) and \(\Delta t=C\Delta x/c\). The same input current density is also imposed as the previous study (Sekido and Umeda 2023). The boundary conditions in all the x, y and z directions are periodic.

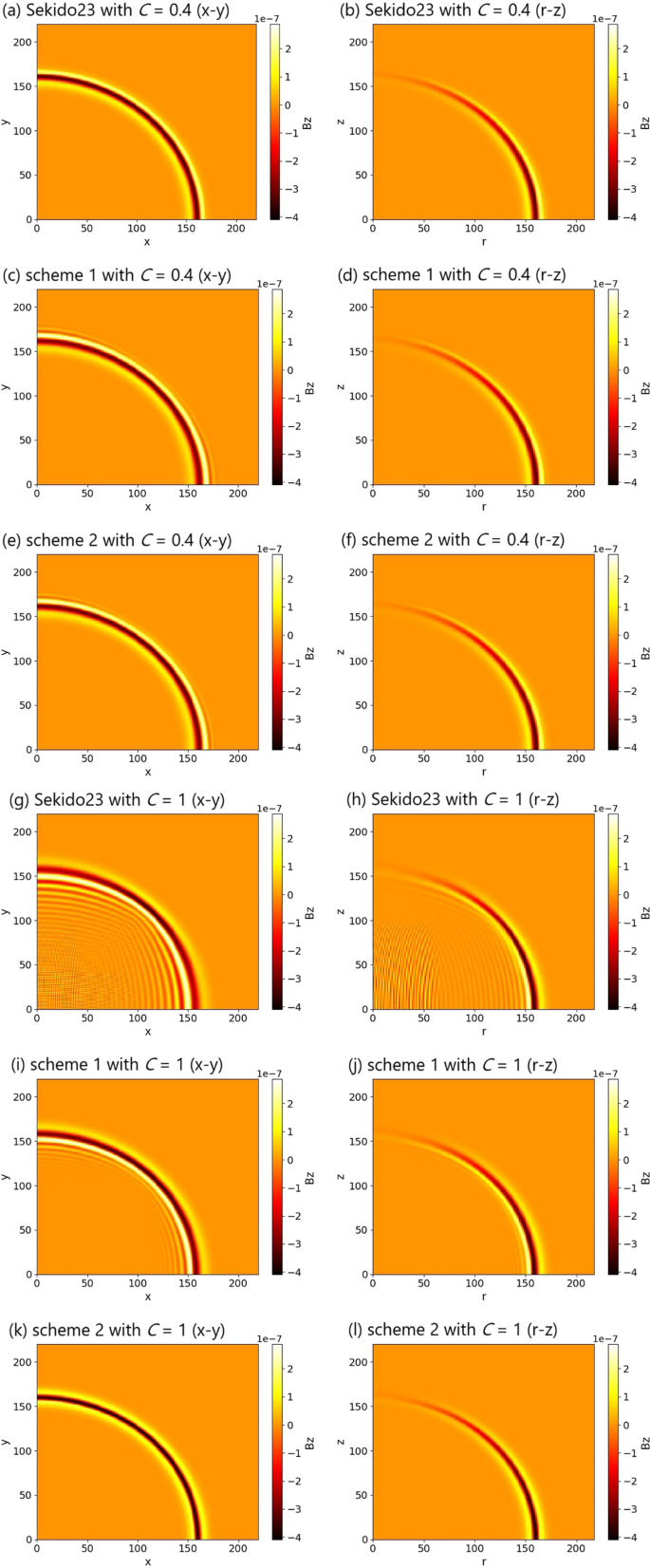

Figure 6 shows the results of numerical simulations. Panels (a–l) show the spatial profiles of the magnetic field \(B_z\) component with the combination of Sekido23, schemes 1 and 2 versus \(C=0.4\) and 1. The panels focus on the first quadrant of the xy and rz planes.
With both of the Courant number \(C=0.4\) and \(C=1\), the numerical simulations are stable with the present schemes as well as Sekido23. With \(C=0.4\), Panels (a), (c) and (e) show that the numerical oscillations occur at \((\theta ,\phi )=({0}^\circ ,{0}^\circ )\) with schemes 1 and 2, although the phase velocity errors with schemes 1 and 2 are smaller than those with Sekido23 as shown in Fig. 4. Panels (a–c) in Fig. 5 show that the phase velocity errors with schemes 1 and 2 are larger than those with Sekido23 at \(k_{x} \Delta x \approx 0.7\)0.9 and \(k_y=k_z=0\), which corresponds to the wavenumber of the numerical oscillations in Figs. 6. Panels (i–l) show that the numerical oscillations are reduced at \(C=1\) with the present schemes. The numerical oscillations with scheme 1 are larger than those with scheme 2. These results agree with Fig. 4, which shows that the numerical errors of scheme 1 are larger than those of scheme 2.
Table 6 shows the computational time of the test simulations. The computational time of the test simulations with \(C=0.4\) is 2.5 times as long as those with \(C=1.0\). At the same Courant number, the computational time increases as the number of operations increases. With \(C=1\), the computational time with schemes 1 and 2 are 1.017 and 1.646 times as long as that with Sekido23, respectively, although the numbers of operations with schemes 1 and 2 are 2.0 and 3.0 times as large as those with Sekido23, respectively. The numbers of memory load with schemes 1 and 2 are 1.130 and 2.000 times larger than those with Sekido23, respectively. The number of operations, memory load and memory store contribute in the ratio of 1.00 : 17.7 : 95.9 to the computational time. In three dimensions, the size of the simulation data is much larger than that in two dimensions. The simulation data in three dimensions is stored on main memory while the simulation data in two dimensions is stored on cache memory. Therefore, the contributions of memory load and store to the computational time in three dimensions are much larger than those in two dimensions.
Conclusions
A novel nondissipative and explicit FDTD method is developed to reduce an anisotropy in the numerical dispersion and relax the Courant condition simultaneously. Although the Courant condition of FDTD(2,4) is relaxed in our previous study (Sekido and Umeda 2023), there remains a large anisotropy in the numerical dispersion.
In the present study, thirddegree spatial difference operators including the Laplacian are appended to the timedevelopment equations of FDTD(2,4) (Fang 1989; Petropoulos 1994) in the way similar to the recent study (Sekido and Umeda 2023). A set of the optimal coefficients is searched to minimize the mean value of the phase velocity errors in the whole wavenumber space. The numerical simulations have demonstrated that the anisotropy in the numerical dispersion is reduced. For large Courant numbers up to \(C=1\), the numerical instability is also suppressed.
Note that the present method is able to use acoustic analyses straightforwardly.
Availability of data and materials
The numerical code used in the present study is available from the corresponding author on reasonable request.
Abbreviations
 FDTD:

Finitedifference timedomain
 GIC:

Geomagnetically induced current
 ELF:

Extremely low frequency
 VLF:

Very low frequency
References
Chen W, Ma P, Tian J (2018) A novel ADECNFDTD with improved computational efficiency for dispersive media. IEEE Microwave Wirel Compon Lett 28:10. https://doi.org/10.1109/LMWC.2018.2861208
Cole JB (1997a) High accuracy solution of Maxwell’s equations using nonstandard finite differences. Comput Phys 11:3. https://doi.org/10.1063/1.168620
Cole JB (1997b) A highaccuracy realization of the Yee algorithm using nonstandard finite differences. IEEE Trans Microw Theory Tech 45:6. https://doi.org/10.1109/22.588615
Cooke SJ, Botton M, Antonsen TM Jr, Levush B (2008) A leapfrog formulation of the 3D ADIFDTD algorithm. Int J Numer Model Electron Netw Dev Fields 22:2. https://doi.org/10.1109/CEMTD.2007.4373546
Cummer SA (2000) Modeling electromagnetic propagation in the Earthionosphere waveguide. IEEE Trans Antennas Propag 48:9. https://doi.org/10.1109/8.898776
Ding C, Xiao Z, Su Y (2021) A potential subsurface cavity in the continuous ejecta deposits of the Ziwei crater discovered by the Chang’E3 mission. Earth Planets Space 73:53. https://doi.org/10.1186/s40623021013597
Fang J (1989) Time domain finite difference computations for Maxwell’s equations. Dept. of Elec. Eng., Univ. of California, Berkeley, CA
Fujiwara Y, Nogi T, Omura Y (2022) Nonlinear triggering process of whistlermode emissions in a homogeneous magnetic field. Earth Planets Space 74:95. https://doi.org/10.1186/s4062302201646x
Hadi MF, PiketMay M (1997) A modified FDTD (2, 4) scheme for modeling electrically large structures with highphase accuracy. IEEE Trans Antennas Propag 45:2. https://doi.org/10.1109/8.560344
Ikata E, Tay G (1998) Finitedifference time domain acousticwave algorithm. Il Nuovo Cimento D 20:12. https://doi.org/10.1007/BF03036596
Ishii K, Yokoo A (2021) Combined approach to estimate the depth of the magma surface in a shallow conduit at Aso volcano, Japan. Earth Planets Space 73:187. https://doi.org/10.1186/s4062302101523z
Kimura S, Nakagawa T (2008) Electromagnetic full particle simulation of the electric field structure around the moon and the lunar wake. Earth Planets Space 60:591–599. https://doi.org/10.1186/BF03353122
Kudo H, Kashiwa T, Ohtani T (2002) Numerical dispersion and stability condition of the nonstandard FDTD method. Electron Commun 85:1. https://doi.org/10.1002/ecjb.1083
Nakagawa T, Kimura S (2011) Role of the solar wind magnetic field in the interaction of a nonmagnetized body with the solar wind: an electromagnetic 2D particleincell simulation. Earth Planets Space 63:477–486. https://doi.org/10.5047/eps.2011.02.006
Nakamura S, Ebihara Y, Fujita S, Goto T, Yamada N, Watari S, Omura Y (2018) Time domain simulation of geomagnetically induced current (GIC) flowing in 500kV power grid in Japan including a threedimensional ground inhomogeneity. Space Weather 16:12. https://doi.org/10.1029/2018SW002004
Namiki T (1999) A new FDTD algorithm based on alternatingdirection implicit method. IEEE Trans Microw Theory Tech 47:10. https://doi.org/10.1109/22.795075
Ohtani T, Taguchi K, Kashiwa T, Kanai Y, Cole JB (2009) Nonstandard FDTD method for wideband analysis. IEEE Trans Antennas Propag 57:8. https://doi.org/10.1109/TAP.2009.2024467
Petropoulos PG (1994) Phase error control for FDTD methods of second and fourth order accuracy. IEEE Trans Antennas Propag 42:6. https://doi.org/10.1109/8.301709
Sekido H, Umeda T (2023) Relaxation of the Courant condition in the explicit finitedifference timedomain method with higherdegree differential terms. IEEE Trans Antennas Propag 71:2. https://doi.org/10.1109/TAP.2023.3234097
Sun G, Trueman CW (2003) Unconditionally stable CrankNicolson scheme for solving twodimensional Maxwell’s equations. Electron Lett 39:7. https://doi.org/10.1049/el:20030416
Taflove A (1980) Application of the finitedifference timedomain method to sinusoidal steadystate electromagneticpenetration problems. IEEE Trans Electromagn Compat 22:3. https://doi.org/10.1109/TEMC.1980.303879
Takenaka H, Komatsu M, Toyokuni G et al (2017) QuasiCartesian finitedifference computation of seismic wave propagation for a threedimensional subglobal model. Earth Planets Space 69:67. https://doi.org/10.1186/s4062301706511
Umeda T (2012) Effect of ion cyclotron motion on the structure of wakes: a Vlasov simulation. Earth Planets Space 64:16. https://doi.org/10.5047/eps.2011.05.035
Umeda T, Fukazawa K (2015) A highresolution global Vlasov simulation of a small dielectric body with a weak intrinsic magnetic field on the K computer. Earth Planets Space 67:49. https://doi.org/10.1186/s4062301502160
Wang X, Yin W, Chen ZZ (2013) (D.) Onestep leapfrog ADIFDTD method for simulating electromagnetic wave propagation in general dispersive media. Opt Express 21:18. https://doi.org/10.1364/OE.21.020565
Watari S, Nakamura S, Ebihara Y (2021) Measurement of geomagnetically induced current (GIC) around Tokyo, Japan. Earth Planets Space 73:102. https://doi.org/10.1186/s40623021014223
Xie G, Huang Z, Fang M, Wu X (2020) A unified 3D ADIFDTD algorithm with onestep leapfrog approach for modeling frequencydependent dispersive media. Int J Numer Model Electron Netw Dev Fields 33:2. https://doi.org/10.1002/jnm.2666
Yang B, Balanis CA (2006) An isotropyimproved nonstandard finitedifference timedomain method. IEEE Trans Antennas Propag 54:7. https://doi.org/10.1109/TAP.2006.877185
Yang Y, Chen RS, Yung EKN (2006) The unconditionally stable Crank Nicolson FDTD method for threedimensional Maxwell’s equations. Microw Opt Technol Lett 48:8. https://doi.org/10.1002/mop.21684
Yee KS (1966) Numerical solution of initial boundary value problems involving Maxwell’s equations in isotropic media. IEEE Trans Antennas Propag 14:3. https://doi.org/10.1109/TAP.1966.1138693
Yokoo A, Ishii K, Ohkura T et al (2019) Monochromatic infrasound waves observed during the 2014–2015 eruption of Aso volcano, Japan. Earth Planets Space 71:12. https://doi.org/10.1186/s406230190993y
Zhou L, Yang F, Zhou H (2015) A novel efficient nonstandard highorder finitedifference timedomain method based on dispersion relation analysis. Electromagnetics 35:1. https://doi.org/10.1080/02726343.2015.971669
Acknowledgments
Computations of this work were performed on the CIDAS computer system at the Institute for SpaceEarth Environmental Research, Nagoya University as a computational joint research program.
Funding
This work was supported by MEXT/JSPS under GrantInAid (KAKENHI) for Scientific Research (B) No.JP19H01868.
Author information
Authors and Affiliations
Contributions
HS developed the novel scheme, the numerical codes, performed the numerical tests, analyzed the numerical results, drafted the manuscript. TU suggested the basic concept of the numerical operator. Both of authors read and approved the final manuscript.
Corresponding author
Ethics declarations
Competing interests
The authors declare that they have no competing interests.
Additional information
Publisher's Note
Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.
Appendices
Appendix 1. Derivation of \(\mathcal{D}_{x}^{3,4}\)
The thirddegree spatial difference operator in the x direction with the fourthorder accuracy \(\mathcal{D}_{x}^{3,4}\) is defined as follows (Sekido and Umeda 2023):
The operator \(\mathcal{D}_{x}^{3,4}\) is factored out as
which is derived as follows.
The combined operators \(\mathcal{D}_{x}^{1,2} \mathcal{D}_{x}^{2,2}\) and \(\mathcal{D}_{x}^{1,2} \mathcal{D}_{x}^{2,2} \mathcal{D}_{x}^{2,2}\) are derived from Eq. (6) as follows:

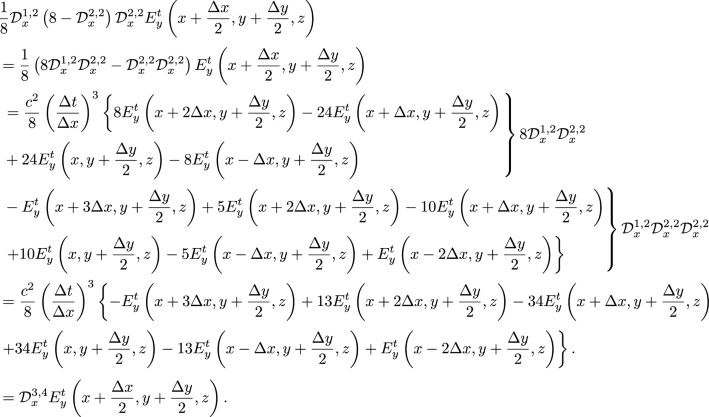

The Eq. (12) is derived from Eq. (14) as follows:
Appendix 2. Another type of the thirddegree difference with fourthorder accuracy

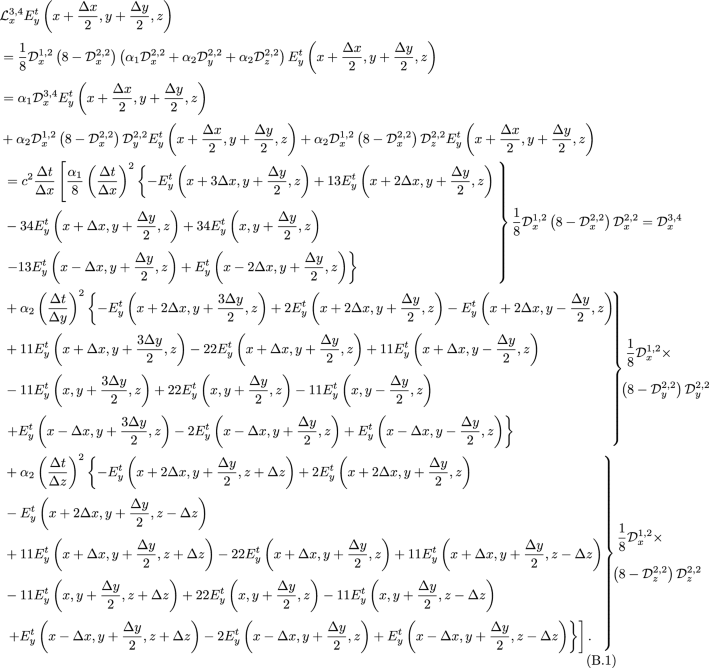

Another type of the operator \(\mathcal{L}_{x}^{3,4}\) is derived by replacing the last part of the onedimensional difference \(\mathcal{D}_{x}^{2,2}\) with the Laplacian difference \(\mathcal{D}_{x}^{2,2} + \mathcal{D}_{y}^{2,2} + \mathcal{D}_{z}^{2,2}\):
The dispersion relation is derived from the timedevelopment Eq. (3) with Eqs. (4) and (16):
Note that \(\mathcal{K}_{z}=0\) in two dimensions. This method is referred to as “scheme 3” in this paper.
Table 7 shows the sets of optimal coefficients for scheme 3 for \(0.5 \le C \le 1\) in two dimensions. Table 8 shows the sets of optimal coefficients for scheme 3 for \(0.4 \le C \le 1\) in three dimensions.
The numerical errors with scheme 3 are almost the same as those with scheme 2 in both two and three dimensions. However, the computational cost with scheme 3 is slightly larger than that with scheme 2.
