PCA and vTEC climatology at midnight over mid-latitude regions

Abstract

The effect of the thermospheric vertical neutral wind on vertical total electron content (vTEC) variations including longitudinal anomaly, remaining winter anomaly, mid-latitude summer night anomaly, and semiannual anomaly is studied at mid-latitude regions around zero magnetic declination at midnight during high solar activity. By using the principal component analysis (PCA) numerical technique, this work studies the spatial and temporal variations of the ionosphere at midnight over mid-latitude regions during 2000–2002. PCA is applied to a time series of global vTEC maps produced by the International Global Navigation Satellite System (GNSS) Service. Four regions were studied in particular, each located at mid-latitude and approximately centered at zero magnetic declination, with two in the northern hemisphere and two in southern hemisphere, and all are located near and far from geomagnetic poles in each case. This technique provides an effective method to analyze the main ionospheric variabilities at mid-latitudes. PCA is also applied to the vTEC computed using the International Reference Ionosphere (IRI) 2012 model, to analyze the capability of this model to represent ionospheric variabilities at mid-latitude. Also, the Horizontal Wind Model 2007 (HWM07) is used to improve our climatology interpretation, by analyzing the relationship between vTEC and thermospheric wind, both quantitatively and qualitatively. At midnight, the behavior of mean vTEC values strongly responds to vertical wind variation, experiencing a decrease of about 10–15% with the action of the positive vertical component of the field-aligned neutral wind lasting for 2 h in all regions except for Oceania. Notable results include: a significant increase toward higher latitudes during summer in the South America and Asia regions, associated with the mid-latitude summer night anomaly, and an increase toward higher latitudes in winter in the North America and Oceania regions, highlighting the remnant effect of the winter anomaly. Finally, the longitudinal variations of east–west differences, named longitudinal anomaly, show maximum values in March for North America, in December for South America and Oceania, and are not shown for Asia. Our results show that at mid-latitudes regions, the IRI model represents midnight ionospheric mean values with a similar spatial distribution, but the values are always lower than those obtained by GNSS. The differences between IRI and GNSS results include: the longitudinal anomaly is characterized by a stronger semiannual variation in both North America and South America, with a maximum in the equinoxes, while for the Asian region, the behavior is almost constant throughout the years, and finally, there is an absence of the winter anomaly remnant.

Introduction

At mid-latitude, the electron content in the ionosphere is primarily caused by solar irradiance. This effect varies on different timescales, but the rate of change of electron density also depends on loss processes, by recombination, and by electron movement (in terms of mean drift velocity), all of which are related by the continuity equation. According to the Chapman photochemical theory (Rishbeth and Garriot 1969), ionospheric electron content should have a diurnal variation with maximum values at noontime, when the solar zenith angle is lowest. Ionospheric electron density at any time and location depends on many factors: the composition of the neutral atmosphere and its physical conditions, such as density and temperature, the solar spectrum and any energetic particle fluxes able to ionize the atmospheric plasma, and finally the loss processes, both chemical and by transport. The production mechanism and the recombination process mainly depend on the concentrations of atomic oxygen and molecular nitrogen, respectively.

At night, solar irradiance almost disappears (sometimes existing due to a later sunset in summer); therefore, the main factors controlling electron concentration are the initial conditions of ionospheric plasma (i.e., before starting the night) and the loss processes. In the latter, the vertical wind modifies the recombination conditions, when the atmospheric plasma is moved. The vertical movement of ionization is caused by the field-aligned meridional winds component (it is in terms of equatorward and eastward wind components) and the eastward electric field (Rishbeth 1998). Some authors also propose the downward plasmaspheric flux as an additional cause of the electron content increase during night hours (Mikhailov et al. 2000; Richards et al. 2000).

Studies on vTEC behavior have an important role in our understanding of ionosphere–thermosphere coupling. The spatial and temporal variations of vTEC describe the coupling processes of neutral gas in the thermosphere and the plasma in the ionosphere.

At night and at mid-latitudes, the ionosphere is characterized by: annual and semiannual temporal variations (Rishbeth 1998), the mid-latitude summer night anomaly (MSNA) (Liu et al. 2010; Lin et al. 2010), and the east–west difference (Xu et al. 2013; Zhao et al. 2013). The MSNA has its origin in the Weddell Sea Anomaly, which is characterized by higher electron densities during the night than during the day near the Antarctic Peninsula. Some authors point out that the major reasons for producing this anomaly may be the increase in electron density at the southern part of the Equatorial Ionospheric Anomaly (EIA) along with stronger neutral winds to the equator at longitude 90°W (Lin et al. 2009). The offset of the magnetic equator to the south and the magnetic declination to the east also contributes to this anomaly. A similar anomalous feature was found in the northern hemisphere (40°N–60°N latitude and 120°E–140°E longitude) in the June solstice. Thampi et al. (2009) highlight two features of the MSNA: (1) the electron density is higher during night than daytime, and (2) often at night, the electron density at mid-latitudes remains higher than at lower latitudes.

Lastly, some authors report an ionospheric east–west difference in both sides of the longitudes with zero magnetic declination (Zhang et al. 2011; Xu et al. 2013; Zhao et al. 2013), hereafter named longitudinal anomaly. They suggested that this longitudinal anomaly is caused by the difference in magnetic declination that gives rise to upward and downward ion drifts across the zero declination for a given thermospheric zonal wind direction.

In our study, we attempt to link the vTEC data, obtained from Global Navigation Satellite System (GNSS) observations (Mannucci et al. 1998), to the vertical component of the field-aligned neutral wind (V) obtained by the Horizontal Wind Model 2007 (HWM07) (Drob et al. 2008) to describe the behavior of the ionosphere. To do so, we summarize results from previous studies and provide a more complete climatology for different regions at mid-latitude that are approximately centered at zero magnetic declination. Besides vTEC data, this climatology description is completed using the International Reference Ionospheric model 2012 (IRI 2012), highlighting similarities and limitations of the model.

Our result in the manuscript is not simply a comparison corresponding to mid-latitude region results, as it raises new features that are worth further study and that improve our current understanding of ionospheric variabilities.

The numerical technique PCA is applied to the three kinds of data sets. The main PCA modes define the most important variabilities, allowing us to link them to physical processes. “Data and methodology” section describes the data and models used and outlines the numerical technique applied to the data sets. “Results” section presents results for global vTEC maps, for the IRI 2012 model and for HMW07. “Discussion and conclusions” section presents a discussion and conclusions.

Data and methodology

Four regions in the northern and southern hemisphere (Fig. 1), approximately centered at zero magnetic declination, were selected to study the climatology at mid-latitude regions. In each region, two sectors were highlighted: one in the east (red rectangle) and the other in the west (blue rectangle), with respect to longitudes with zero declination. In this section, the data, models, and numerical tool are described.

Fig. 1

Regions in the northern and southern hemisphere approximately centered at zero magnetic declination. The zero magnetic declination is along the white line

vTEC from GNSS

Global vTEC maps from the International GNSS Service (IGS) were used in this work. These maps provide ionospheric electron content information every 2 h in a grid comprising latitude and longitude of 2.5° and 5°, respectively (Mannucci et al. 1998).

Three years of high solar activity, spanning 2000–2002, were selected. The data set was ordered to obtain one map per day at local midnight. To do this, slices of 30°, each centered on the same local time, were considered. This selection was based on the assumption that the ionosphere does not change in a 2-h window. Then, the slices were merged into a new vTEC map corresponding to their central longitude. Thus, following this procedure, a new vTEC map, hereafter called vTEC_GNSS, was built to match the local time selected.

vTEC from the IRI 2012 model

Simulated data were generated using the IRI 2012 model (Bilitza et al. 2014). It is a highly recommended empirical model of the ionosphere, built up by an international working group since the 1960s. Several steadily improved editions of the model have been released. For a given location, time, and date, IRI describes the electron density, electron temperature, ion temperature, and ion composition at an altitude range of approximately 50–2000 km and also the electron content. It provides monthly averages in the non-auroral ionosphere for magnetically quiet conditions.

The IRI model was used to generate vTEC data, hereafter called vTEC_IRI, at the same grid coordinates as vTEC_GNSS and the same local times.

V from the HWM07 model

Meridional winds cause ionization to move up or down the magnetic field lines, to regions of slower or faster loss (Titheridge 1995). The meridional wind is:

$$W_{{{\text{m}} }} = W_{\text{equ}} \cos \delta \pm W_{\text{east}} \sin \delta$$

(1)

where W _equ and W _east are the equatorward and eastward components, respectively, δ is the magnetic declination, and the + and − signs apply in the southern and northern hemisphere. The horizontal wind W _m has a field-aligned component $W_{\parallel } = W_{\text{m}} \cos I$ and a perpendicular component $W_{ \bot } = W_{\text{m}} \sin I$, where I is the dip angle. $W_{ \bot }$ has no effect on the ionization, while $W_{\parallel }$ carries the ionization along the field line, giving an effective vertical velocity, $W_{\parallel } \sin I$. Thus, an effective vertical component of the field-aligned neutral wind (V), which can move only in a direction parallel to the magnetic field, is:

$$V = W_{\text{m}} \cos I\sin I$$

(2)

where V describes the overall effect of the wind, for different values of declination and dip magnetic angle, in lifting or lowering the F2 region.

It is known that wind models often differ 20% or more (David et al. 2014). The Horizontal Wind Model (HWM07) (Drob et al. 2008) is chosen to compute the thermospheric wind values at 300 km, taking into account that this model gives an acceptable mean behavior of V to explain the vTEC variability studied in this work.

HWM07 provides a statistical representation of the horizontal wind fields of the Earth’s atmosphere from the ground to the exosphere (0–500 km). It represents over 50 years of satellite, rocket, and ground-based wind measurements. The computer model is a function of geographic location, altitude, day of the year, solar local time, and geomagnetic activity.

Finally, HWM07 was used to generate V at the same regions as vTEC data, hereafter called V _HWM07. In this case, only 2001 data were used because the HMW07 does not change with solar cycle (Hagan 1993; Burns et al. 2014).

Numerical tool

PCA is widely used in different areas of science. One of the most interesting advantages of this technique is the decomposition of a correlated data set on a new orthonormal base of minimum dimension.

In this work, we used this technique to describe the climatology at different mid-latitude regions. The data as described in “vTEC from GNSS,” “vTEC from the IRI 2012 model,” and “ V from the HWM07 model” sections were the vTEC_GNSS, vTEC_IRI, and V _HWM07. We present a brief description of the technique in “Appendix,” and further details about the algebraic foundations of PCA can be found in Preisendorfer (1988) and Wackernagel (1998).

Results

Figure 2 shows the average values of vTEC_GNSS and V _HWM07 for each region at 22 LT and 00 LT. The data corresponding to 22 LT are included to analyze the effect that vertical component field-aligned neutral wind (V) has on vTEC_GNSS at midnight. The vTEC_GNSS in all regions shows values lower at 00 LT than at 22 LT, and these changes can be understood by taking into account the mean V _HWM07 variability.

Fig. 2

Average values of vTEC_GNSS for each region at 22 LT (panels a, e, i and m); at 00 LT (panels c, g, k and o). Average values of V _HWM07 for each region at 22 LT (panels b, f, j and n); at 00 LT (panels d, h, l and p)

Table 1 lists the mean difference values of vTEC between 22 LT and 00 LT in TECu and in percentages with respect to the mean value vTEC at 22 LT. The standard deviation of the mean difference values is shown, and the last column is the mean value of the vertical component of the field-aligned neutral wind at 22 LT, using all the data within each region shown in Fig. 2. Owing to the discrepancy shown by the wind models (David et al. 2014), it is difficult to establish a quantitative relationship between the wind value and the vTEC decrease. However, we can see that with a mean vertical wind of 18 m/s, there is a decrease of 8–11% in all regions except for Oceania. In this region, the wind is lower, with a mean value of about 3 m/s, and the decrease in vTEC is slightly higher, reaching values of 13.4%. Therefore, in all regions, the winds values are not strong enough to maintain the F region density above the altitude range of recombination, because according to David et al. (2014), V values of 80 m/s (upward drift) are required.

Table 1 Mean difference values of vTEC between 22 LT and 00 LT in TECu and with respect to the mean value vTEC at 22 LT (in %), standard deviation of the mean difference values, and mean value of the vertical component of the field-aligned neutral wind at 22 LT

PCA decomposition allows for the quantification of the contribution of each mode and enables identification of physically meaningful patterns in spatial and temporal variations. Table 2 lists the contributions of the first components for each data set and region. These few components represent more than approximately 95% of the total variance of the original data, so it is reasonable to use these modes as well as the associated principal components to describe the variations.

Table 2 Percentage of variability for each data set and region

As explained in “Appendix,” each mode can be written as the product (a _i ·e ^T _i ), where e _i contains the spatial variation over each region, a _i contains the temporal variation of the data set spanning 2000–2003, and i is associated with the mode (1, 2, or 3). The units of the product of a _i and e _i are TECU (1 TECU = 10¹⁶ electron/m²) for vTEC_GNSS or vTEC_IRI and m/s for V _HWM07. Equation (9) enables rewriting of the values of vTEC_GNSS/IRI and V _HWM07 variability for each mode as follows:

$${\text{mode}}_{i} \left( {t,x} \right) = a_{i} \left( t \right)e_{i}^{\text{T}} \left( x \right),$$

(3)

for i = 1, 2, 3, where t is the day of the year, and x is the latitude and longitude.

Consequently, to reconstruct the original signal with the modes that represent the major variability, ${\text{vTEC}}_{\text{GNSS/IRI}}^{*} \left( {t,x} \right)$ data can be written as:

$${\text{vTEC}}^{*}_{\text{GNSS/IRI}} \left( {t,x} \right) = \overline{\text{vTEC}}_{\text{GNSS/IRI}} \left( x \right) + \mathop \sum \limits_{i = 1}^{3} a_{i} \left( t \right)e_{i}^{\text{T}} \left( x \right)$$

(4)

where t is the day of the year, x is the latitude and longitude, and $\overline{\text{vTEC}}_{\text{GNSS/IRI}} \left( x \right)$ is the mean value of ${\text{vTEC}}_{\text{GNSS/IRI}}$ for each x location.

Global vTEC maps from IGS have an error of 4–5 TECU (Hernández-Pajares et al. 2009). Once the PCA technique is applied, the reconstruction using only a few modes has an error one order of magnitude lower than the original data errors. Therefore, the error of the PCA solution (Huang et al. 2005) is proportional to the data error and inversely proportional to the square root of the count of data over time (in our case, 365 * 3); i.e., the error of our PCA results is approximately equal to (4–5) TECu * 0.03.

To analyze the wind effect on vTEC variability, we applied the PCA technique on the vertical component of the field-aligned neutral wind (V) obtained using the HWM07 model, V _HWM07.

PCA on vTEC_GNSS

Figures 3, 4, 5, and 6 show the PCA applied on the vTEC_GNSS over the North America, South America, Asia, and Oceania regions, respectively. The PCA modes are located in distinguished rows in each figure, and the last row shows the mean vTEC_GNSS spatial variation and the mean synthesized values of vTEC_GNSS (Eq. 4) for each highlighted sector and its difference. The columns from left to right are ordered as follows: the amplitude (or temporal variation, a _i ), spatial variation (e _i ), mean synthesized data for each mode over red (east) and blue (west) rectangles, and difference between red and blue curves. Table 3 provides the mean vTEC_GNSS, V _HWM07, and the east–west difference (dvTEC_GNSS and dV _HWM07) values for each highlighted sector in all regions. Figures 7, 8, 9, and 10 show the PCA applied on V _HWM07 to improve the interpretation of the influence of these winds on vTEC_GNSS at night.

Fig. 3

vTEC_GNSS over the North American region: a amplitude of the temporal variation, a ₁ (the y-axis has to be multiplied by a factor of 10⁻²), b eigenvector or spatial variation, e ₁, c synthesized data for mode 1 (a ₁·e ^T₁ ) for red (east) and blue (west) rectangles, d difference between red and blue curves of c, e the amplitude of the temporal variation, a ₂ (the y-axis has to be multiplied by a factor of 10⁻²), f eigenvector or spatial variation, e ₂, g synthesized data for mode 2 (a ₂·e ^T₂ ) for red (east) and blue (west) rectangles, h difference between red and blue curves of g, i the amplitude of the temporal variation, a ₃ (the y-axis has to be multiplied by a factor of 10⁻²), j eigenvector or spatial variation, e ₃, k synthesized data for mode 3 (a ₃·e ^T₃ ) for red (east) and blue (west) rectangles, and l difference between red and blue curves of k. Finally, the time-averaged $\overline{\text{vTEC}}_{{{\text{GNSS}} }} \left( x \right)$ (m), the synthesized data, n $\overline{\text{vTEC}}^{*}_{\text{GNSS}} \left( t \right)$, for red (east) and blue (west) rectangles, and the difference ($\overline{\text{dvTEC}}_{{{\text{GNSS}} }}^{*} \left( t \right)$) between red and blue curves of n (o)

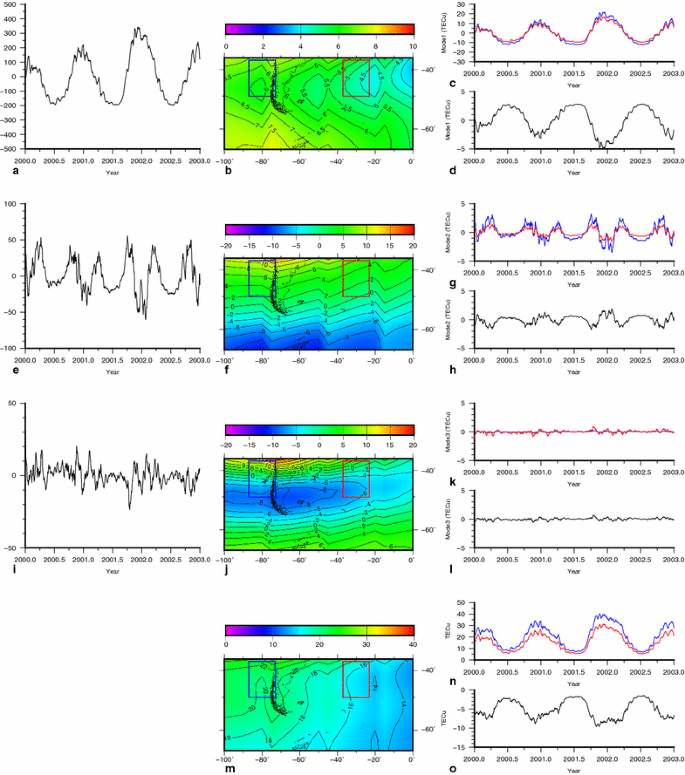

Fig. 4

Idem Fig. 3 for the South American region

Fig. 5

Idem Fig. 3 for the Asian region

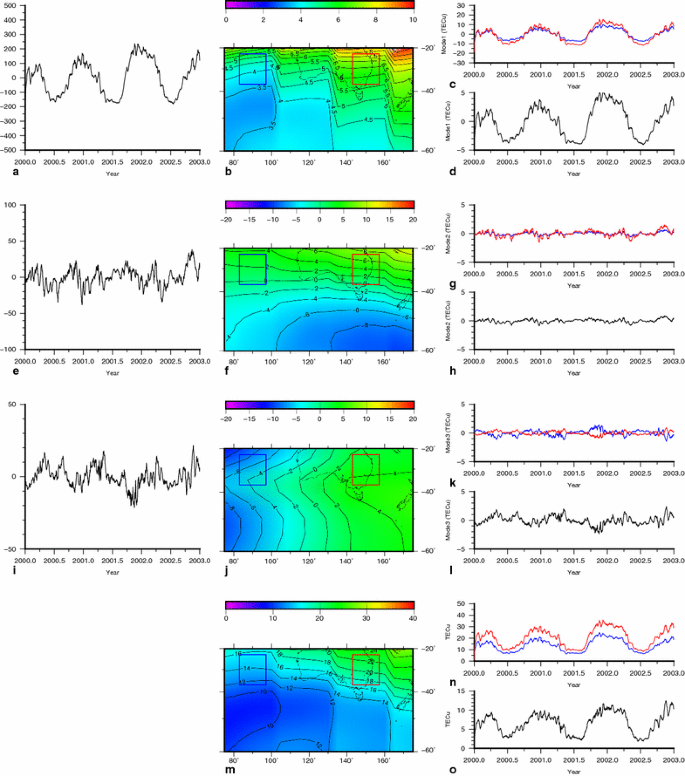

Fig. 6

Idem Fig. 3 for the Oceania region

Table 3 Mean values of vTEC_GNSS, V _HWM07, and the east–west difference, dvTEC_GNSS, and dV _HWM07, at 00 LT for the highlighted sectors in the four regions

Fig. 7

V _HWM07 over the North American region: a amplitude of the temporal variation, a ₁ (the y-axis has to be multiplied by a factor of 10⁻²), b eigenvector or spatial variation, e ₁, c synthesized data for mode 1 (a ₁·e ^T₁ ) for red (east) and blue (west) rectangles, d difference between red and blue curves of c, e the amplitude of the temporal variation, a ₂ (the y-axis has to be multiplied by a factor of 10⁻²), f eigenvector or spatial variation, e ₂, g synthesized data for mode 2 (a ₂·e ^T₂ ) for red (east) and blue (west) rectangles, h difference between red and blue curves of g. Finally, the time-averaged $\bar{V}_{{{\text{HWM07}} }} \left( x \right)$ (i), the synthesized data, j $\bar{V}_{\text{HWM07}}^{*} \left( t \right)$, for red (east) and blue (west) rectangles, and the difference ($\overline{{{\text{d}}V}}_{\text{HWM07}}^{*} (t)$) between red and blue curves of j (k)

Fig. 8

V _HWM07 over the South American region: a amplitude of the temporal variation, a ₁ (the y-axis has to be multiplied by a factor of 10⁻²), b eigenvector or spatial variation, e ₁, c synthesized data for mode 1 (a ₁·e ^T₁ ) for red (east) and blue (west) rectangles, d difference between red and blue curves of c; e the amplitude of the temporal variation, a ₂ (the y-axis has to be multiplied by a factor of 10⁻²), f eigenvector or spatial variation, e ₂, g synthesized data for mode 2 (a ₂·e ^T₂ ) for red (east) and blue (west) rectangles, h difference between red and blue curves of g, i the amplitude of the temporal variation, a ₃ (the y-axis has to be multiplied by a factor of 10⁻²), j eigenvector or spatial variation, e ₃, k synthesized data for mode 3 (a ₃·e ^T₃ ) for red (east) and blue (west) rectangles, l difference between red and blue curves of k. Finally, the time-averaged $\bar{V}_{{{\text{HWM07}} }} \left( x \right)$ (m), the synthesized data, n $\bar{V}_{\text{HWM07}}^{*} \left( t \right)$, for red (east) and blue (west) rectangles, and the difference ($\overline{{{\text{d}}V}}_{\text{HWM07}}^{*} \left( t \right)$) between red and blue curves of n (o)

Fig. 9

Idem Fig. 7 for the Asian region

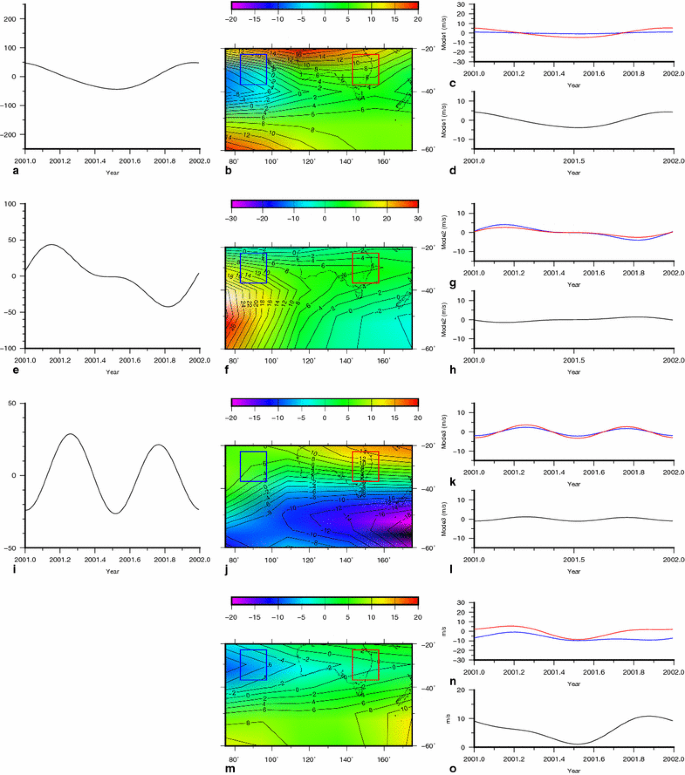

Fig. 10

Idem Fig. 8 for the Oceania region

In the North American region (Fig. 3), the main vTEC variability (mode 1, Fig. 3a) is a strong annual variation, with the highest values occurring in the later March equinox and the lowest values occurring in the December solstice, with a semiannual component overlapped (and at maximum near the equinoxes). The spatial variation increases toward the lower latitudes, and its behavior is similar to the average values of vTEC_GNSS (Fig. 3m). This variability is the result of the combined effect of the neutral composition, mean vertical wind, and the solar irradiation variations. The latter is related to the daytime electron density distribution, which is the starting condition before beginning the nighttime loss processes. The second highlighted feature (mode 2, Fig. 3e, f) is a strong latitudinal variation, where the values are positive for latitudes higher than 40°–45° and negative for latitude lower than 40°–45° during the December solstice, with opposite behavior occurring during the equinoxes; however, this mode does not contribute during the June solstice. This seasonal variation could be related to the winter anomaly at higher mid-latitudes (Rishbeth 1998). This ionospheric anomaly is enhanced at high solar activity during daytime hours (Jee et al. 2004). We also see this effect during nighttime hours, and thus, hereafter, we name this behavior “the remnant of the winter anomaly.” Finally, the third mode contribution shows a larger vTEC_GNSS variation at the east coast than the west coast from September and April (Fig. 3i, j), correlated with the V _HWM07 variability represented in its first PCA mode (Fig. 7a, b). Their values are negative, but are lower at the western coast than at the eastern coast for the same time period, producing a greater loss of electron in the west coast. The longitudinal anomaly (east–west difference) can be explained with a higher mean value of vTEC_GNSS for the eastern coast during the 3 years (Table 3), with the influence of mode 1 (Fig. 3a, b) and mode 3 (Fig. 3i, j) contributing to a higher positive difference in the March equinox but close to zero during the December solstice (Fig. 3o). Similar results were found by Zhang et al. (2011,2013), Xu et al. (2013), and Chen et al. (2015).

In the South American region (Fig. 4) the main variability (mode 1, Fig. 4a) is a strong annual variation, with the highest values occurring in the December solstice and the lowest values occurring in the June solstice. During the December solstice, the minimum values are located between − 40 and − 55 latitude, increasing at higher and lower latitudes and from east to west (Fig. 4b); the opposite occurs during the June solstice. This first mode describes the vTEC_GNSS variability, caused by the combined effect of the neutral composition, mean vertical wind, the solar irradiation variations (which define the starting conditions before beginning the nighttime loss processes), and the first two modes of V _HWM07. The more significant feature in the second mode (Fig. 4e, f) is the strong latitudinal variation; the values are positive for latitudes higher than − 50° and negative for lower latitudes during the equinoxes; the opposite occurs during solstices. Figure 8 shows the V _HWM07 PCA results. The first and second modes play an important role in describing its variability (Table 2). Figure 8a, b shows an annual variation with a semiannual component overlapped, with positive increasing V _HWM07 toward higher latitudes during the December solstice. This variation drives higher vTEC_GNSS values at mid-high latitudes during the December solstice, and this result is shown in the first and second modes of vTEC_GNSS (Fig. 4). Therefore, the combined contribution of modes 1 and 2 describes a maximum vTEC_GNSS variation toward mid-high latitudes during the summer, related to the MSNA (Lin et al. 2010; Jee et al. 2009; Meza et al. 2015). This highlights the second feature mentioned by Thampi et al. (2009), where the electron density at mid-latitude remains higher than that at lower latitudes.

Our results also show an east–west difference in the South America region. The longitudinal anomaly can be explained by a higher mean value of vTEC_GNSS for the western side over the 3-year period (Table 3) and the contribution of modes 1 and 2; they show a higher difference in both the equinoxes and in summer (Fig. 4o). The variation in vTEC_GNSS can be related to the negative mean value of the east–west difference of V _HWM07 (Fig. 8m) and the contribution of the PCA mode on V _HWM07 (Fig. 8i, j). Xu et al. (2013) analyzed the longitudinal anomaly in South America at different local times from 2001 to 2010 and found negative values for the east–west difference, with larger values during December and lower ones during June; our results are similar.

In the Asia region (Fig. 5), the main variability (mode 1, Fig. 5a) is a strong annual variation, with the highest values occurring in the later March equinoxes and the lowest values in the December solstices, with a semiannual component overlapped (and at maximum near the equinoxes). The vTEC_GNSS increases toward the lower latitudes, and its behavior is analogous to the average values of vTEC_GNSS (Fig. 5m), similar to the North American region.

The second important feature (mode 2, Fig. 5f) is a strong latitudinal variation. During solstices the vTEC_GNSS variability is positive at latitudes higher than 50° (larger in June than during the December solstice), the opposite of what happened during the equinoxes. The combined contribution of mode 1 (Fig. 5a, b) and mode 2 (Fig. 5e, f) describes why vTEC_GNSS values are slightly higher toward mid-high latitudes during the June solstice. This could be related to the MSNA as its appearance is weak, and similar results have been obtained by others (Lin et al. 2010), especially in a region centered at 135°E, where those authors worked (Fig. 6 in Lin et al. 2010). Analyzing the V _HWM07 PCA results, the first mode (Fig. 9a, b) shows large positive values at the southwestern side during the June solstice, decreasing to the eastern side, and in the eastern side, the values increase toward the north. This can be related to the second mode of vTEC_GNSS variability (Fig. 5e, f), which shows negative vTEC_GNSS variation at latitudes lower than 50° during the solstices, and is larger toward the eastern side than the western.

The longitudinal anomaly can be explained by a slightly higher mean value of vTEC_GNSS to the east than the west during the 3-year period (Table 3) and by the contributions of modes 1 and 2, which show a weak positive difference during the equinoxes and a weak negative difference during the solstices (Fig. 5o); this is related to the V _HWM07 behavior (Fig. 9 k).

In the Oceania region (Fig. 6), the main variability (mode 1, Fig. 6a) is an annual variation, with the highest values occurring during the December solstice. The vTEC_GNSS increases toward lower latitudes and toward the east, and its behavior is analogous to the average values of vTEC_GNSS (Fig. 6b, m). This variability is caused by the combined effect of the neutral composition and the solar irradiation variations (which define the starting condition before beginning the nighttime loss processes). The second important feature (mode 2, Fig. 6e, f) is a strong latitudinal variation, where the vTEC_GNSS variation is positive for mid-high latitudes (− 40° to − 60°) during the solstices; the opposite behavior occurs during the equinoxes. Similar to the North America region, this seasonal variation with the first PCA mode contribution can be related to the remnant of the winter anomaly at higher mid-latitudes.

The first, second, and third modes on V _HWM07 (Fig. 10) can be correlated with the third PCA mode on vTEC_GNSS. The longitudinal anomaly can be explained by a higher mean value of vTEC_GNSS for the eastern side over the 3-year period (Table 3) and the contribution of modes 1 and 3, showing a higher difference from September to April, especially during the December solstice (Fig. 6o).

PCA on the IRI model

The IRI 2012 model provides monthly averaged ionospheric parameters for magnetically quiet conditions. The model is constructed from both satellite and ground-based observations.

Figures 11, 12, 13, and 14 show the PCA applied to the vTEC_IRI over the North America, South America, Asia, and Oceania regions, respectively. The organization of these figures is similar to those for vTEC_GNSS. Comparing the two PCAs, on vTEC_GNSS and vTEC_IRI, some similarities and discrepancies appear, described below.

Fig. 11

vTEC_IRI over the North American region: a amplitude of the temporal variation, a ₁ (the y-axis has to be multiplied by a factor of 10⁻²), b eigenvector or spatial variation, e ₁, c synthesized data for mode 1 (a ₁·e ^T₁ ) for red (east) and blue (west) rectangles, d difference between red and blue curves of Fig. 11c; e the amplitude of the temporal variation, a ₂ (the y-axis has to be multiplied by a factor of 10⁻²), f eigenvector or spatial variation, e ₂, g synthesized data for mode 2 (a ₂·e ^T₂ ) for red (east) and blue (west) rectangles, h difference between red and blue curves of Fig. 11g. Finally, the time-averaged $\overline{\text{vTEC}}_{\text{IRI}} \left( x \right)$ (i), the synthesized data, j $\overline{\text{vTEC}}^{*}_{\text{IRI}} \left( t \right)$, for red (east) and blue (west) rectangles, and the difference ($\overline{\text{dvTEC}}_{{{\text{IRI}} }}^{*} \left( t \right)$) between red and blue curves of Fig. 11j (k)

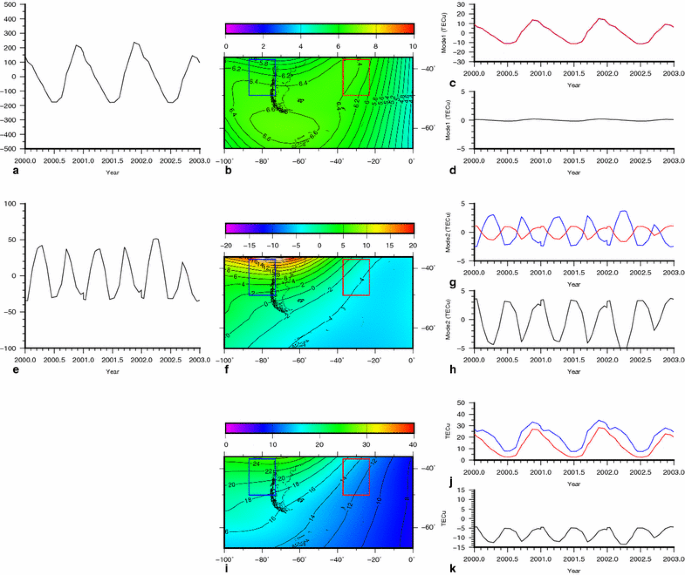

Fig. 12

Idem Fig. 11 for the South American region

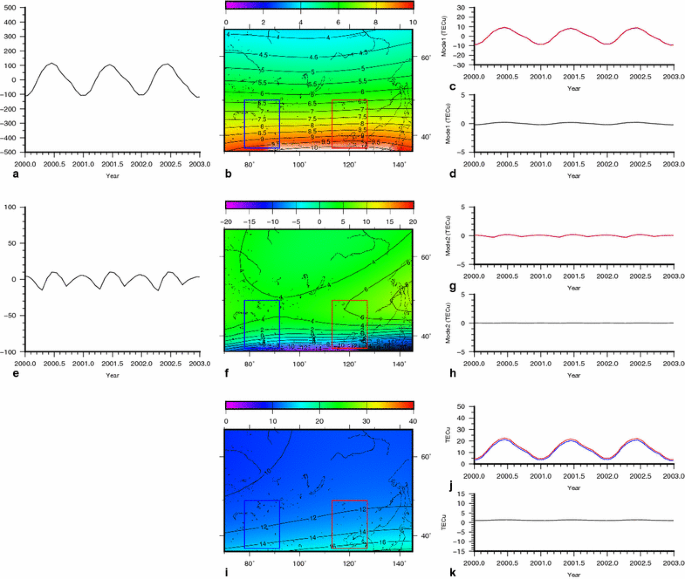

Fig. 13

Idem Fig. 12 for the Asian region

Fig. 14

Idem Fig. 13 for the Oceania region

For all regions, the mean values of vTEC_IRI (Figs. 11i, 12i, 13i, 14i) are lower (Table 4) than those obtained from vTEC_GNSS for similar spatial variations.

Table 4 Mean values at 00 LT for vTEC_GNSS and vTEC_IRI for the four regions

In North America, the main variability (mode 1, Fig. 11a) is a strong annual variation with a maximum in March–June. The vTEC_IRI variation (Fig. 11b) increases toward lower latitudes during the June solstice, and the opposite occurs during the December solstice. There is no evidence of semiannual variation or winter anomaly. The second important feature is a longitudinal variation in vTEC_IRI (Fig. 11f), with larger values at the east coast than the west coast during both equinoxes, higher in April. This pattern is similar to that observed in the third PCA mode of vTEC_GNSS. The longitudinal anomaly can be explained by a higher mean value of vTEC_IRI for the eastern coast over the 3-year period (Table 3) and the main contribution of mode 2. Contrary to the results for vTEC_GNSS, the contribution of the first mode is insignificant and shows a higher difference during the equinoxes (Fig. 11k).

In the South America region, the main variability (mode 1, Fig. 12a) is a strong annual variation, with maximum values occurring during the December solstice located in a region centered approximately at − 60° in latitude and − 70° in longitude and decreasing radially (Fig. 12a, b). The other important feature in the second mode is the strong latitudinal variation (Fig. 12e, f) between longitudes − 50° and − 100°; the values are positive for latitudes higher than − 50° and negative for lower latitudes during the equinoxes, and the opposite occurs during the solstices. Therefore, at latitudes lower than − 50°, the vTEC_IRI variation is positive during the solstices (Fig. 12f). The combined contribution of modes 1 and 2 shows a clearer maximum vTEC_IRI variation toward mid-high latitudes than that described by the MSNA (Hsu et al. 2011). The longitudinal anomaly can be explained by a higher mean value of vTEC_IRI in the western coast during the 3-year period (Table 3) and the contribution of mode 2. Contrary to the results for vTEC_GNSS, the contribution of the first mode is insignificant and shows a higher difference during both equinoxes (Fig. 12k).

In the Asia region, the main variability (mode 1, Fig. 13a) is a strong annual variation, with the highest values occurring during the June solstice, with a strongly latitudinal variation (Fig. 13b), increasing toward lower latitudes. The second mode (Fig. 13f) shows a positive variation at latitudes higher than 40° during solstices (larger in June than in December); the opposite happened during the equinoxes (Fig. 13e, f). There is a weak longitudinal anomaly, and it can only be explained by a slightly higher mean value of vTEC_IRI for the eastern coast during the 3-year period (Table 3), as the contributions of mode 1 and 2 are nearly zero (Fig. 13k). Although the values of the longitudinal anomaly are small (as was the case with vTEC_GNSS), a seasonal variation cannot be distinguished.

In Oceania, the main variability (mode 1, Fig. 14a) is an annual variation, with the highest values occurring during the December solstice. The spatial variation increases toward lower latitudes and toward the east (Fig. 14b), and its behavior is similar to vTEC_GNSS (Fig. 6b). The contribution of the second mode is very small. The vTEC_IRI variation increases to the east during the equinoxes (Fig. 14e, f). There is no evidence of a winter anomaly. The longitudinal anomaly can be explained by a higher mean value of vTEC_IRI for the eastern coast during the 3-year period (Table 3) and the contribution of mode 1. A higher difference is shown during the December solstice and the equinoxes (Fig. 14k), and these results are similar to those of vTEC_GNSS.

Discussion and conclusions

We studied the effect of the thermospheric vertical neutral wind on vTEC variations, including longitudinal anomaly, remaining winter anomaly, MSNA, and semiannual anomaly at different mid-latitudes regions around zero magnetic declination at midnight during high solar activity.

First, at midnight the behavior of mean vTEC_GNSS values responds to vertical wind variation, experiencing a decrease of about 10% with the action of the positive vertical wind lasting for 2 h in all regions except Oceania. There, the situation is quite different, with values reaching up to 15% with almost no vertical wind. Hence, the vertical component of the field-aligned neutral wind (V) is not strong enough to maintain electron density above the altitude range of recombination because the wind velocity is less than 80 m/s (David et al. 2014).

The MSNA has been extensively studied by others (Horvath and Essex 2003; Horvath 2006; Lin et al. 2010). All agree that this feature is more intensive during low solar activity and near the Weddell Sea. Our results showed that, in South America and Asia, a maximum vTEC_GNSS variation toward mid-high latitudes during summer is related to the MSNA, and it is weaker in the Asian region (Lin et al. 2009). This agrees with the main vertical wind variability, as described in “Results” section. Therefore, we support the belief that the thermospheric wind is one of the most important components of the MSNA (Lin et al. 2009; Thampi et al. 2009).

The winter anomaly in the F2 region is defined as the condition in which a greater daytime electron density is seen at the F2 peak in winter than in summer (Burns et al. 2014; Rishbeth and Garriot 1969). This anomaly is primarily due to greater winter to summer differences of [O]/[N2] at solar maximum than at solar minimum for daytime hours. When we see this effect during nighttime hours, we call it the remnant of the winter anomaly. This effect was observed in North America and Oceania, at a similar magnitude for both regions.

It is worth noting that these two anomalies, namely the MSNA and the remnant of the winter anomaly, are confined to different regions. We will try to explain why we see the MSNA in Asia and South America but not in North America nor Oceania, and vice versa for the remnant of the winter anomaly. As mentioned previously, the winter anomaly is principally due to an enhancement of the [O]/[N2] ratio that is related to the circulation processes in the thermosphere. The composition change is a result of the summer hemisphere being heated and the lighter neutral constituents being convected to the winter hemisphere (Johnson 1964). This anomaly is clearly seen from our results in the North America and Oceania regions. Thus, the question remains: Why is the remnant of the winter anomaly not seen in the South American nor Asian regions? One explanation is that the mean vertical winds in these two regions during nighttime are two or more times larger than those in North America and Oceania, reaching mean values of 40 m/s during the summer. If we use the same geomagnetic latitude for the four regions, i.e., 45°, where the MSNA and the remnant of the winter anomaly take place, then the mean vertical component of the field-aligned neutral wind (V) values is 20, 41, 31, and 2 m/s for North America, South America, Asia, and Oceania, respectively. Although the winter anomaly, in accordance with Johnson (1964), should be observed throughout the winter hemisphere, the fact that the winds are two times larger than in Oceania and North America masks the remnant of the winter anomaly. Therefore, in South America and Asia, there are higher vTEC values at high latitudes during summer, which could be related to the MSNA. Sun et al. (2015) suggested that the MSNA is a phenomenon that moves eastward with local time in the Asian region; thus, this effect could also be happening in the Oceania region.

The longitudinal anomaly east–west difference has been reported by some authors (Zhang et al. 2011; Xu et al. 2013; Zhao et al. 2013). They have suggested that this longitudinal anomaly is caused by the difference in magnetic declination, which gives rise to upward and downward ion drifts across the zero declination for a given thermospheric zonal wind direction. The longitudinal anomaly is present when the east–west difference is nonzero, as shown in Figs. 3o, 4o, 5o, and 6o.

The mean values of vTEC_GNSS, $\overline{\text{vTEC}}_{{{\text{GNSS}} }}$, and the mean values of the effective vertical component of the field-aligned neutral wind, $\bar{V}_{\text{HWM07}}$, are computed for the east and west highlighted sectors (Table 3). The east–west difference of vTEC, ${\text{d}}\overline{\text{vTEC}}_{\text{GNSS}}$, and the east–west difference of $\bar{V}_{\text{HWM07}}$, ${\text{d}}\bar{V}_{\text{HWM07}}$ show that when ${\text{d}}\bar{V}_{\text{HWM07}}$ is positive/negative, ${\text{d}}\overline{\text{vTEC}}_{\text{GNSS}}$ is also positive/negative. These results agree with those of David et al. (2014). They show [Fig. 5 (bottom plot)] how the TEC is affected by the vertical ion drift acting for 2 h. From this figure, we see that the TEC does not change when the wind speed is 80 m/s, and for lower wind values, although the TEC decreases, the relationship is not linear; i.e., the change in TEC is larger when the winds are between 0 and 10 m/s than when they are between 10 and 20 m/s.

In our analysis (Table 3) for North America, ${\text{d}}\overline{\text{vTEC}}_{\text{GNSS}}$ is + 4 TECu, the ${\text{d}}\bar{V}_{\text{HWM07}}$ is about + 10 m/s, and $\bar{V}_{\text{HWM07}}$ reaches values between + 10 and + 20 m/s, producing a change in ${\text{d}}\overline{\text{vTEC}}_{\text{GNSS}}$ that ends up giving a value around + 4 TECu. For South America, ${\text{d}}\overline{\text{vTEC}}_{\text{GNSS}}$ is − 5 TECu and ${\text{d}}\bar{V}_{\text{HWM07}}$ is about − 10 m/s, but in this region the wind values are about + 5 and + 15 m/s; therefore, they produce such change in the $\overline{\text{vTEC}}_{\text{GNSS}}$ that ${\text{d}}\overline{\text{vTEC}}_{\text{GNSS}}$ ends up giving a value larger than that for North America. For Asia, $d\overline{\text{vTEC}}_{\text{GNSS}}$ is + 1 TECu and there is consequently a small value of ${\text{d}}\bar{V}_{\text{HWM07}}$. For Oceania, ${\text{d}}\overline{\text{vTEC}}_{\text{GNSS}}$ is + 6 TECu and the ${\text{d}}\bar{V}_{\text{HWM07}}$ is + 6 m/s; thus, in this region the values of $\bar{V}_{\text{HWM07}}$ are lower than in the American regions, with values of 0 and − 6 m/s. Consequently, the east–west difference, ${\text{d}}\overline{\text{vTEC}}_{\text{GNSS}}$, ends up giving + 6TECu, larger than in the American regions, although the ${\text{d}}\bar{V}_{\text{HWM07}}$ is smaller.

To study the seasonal east–west difference of vTEC, we used the PCA-reconstructed signal (Eq. 4). Therefore, the east–west difference was computed averaging the ${\text{vTEC}}^{ *}_{\text{GNSS}} \left( {t,x} \right)$ values inside the highlighted sectors, named $\overline{\text{dvTEC}}_{{{\text{GNSS}} }}^{*} \left( t \right)$ (Figs. 3o, 4o, 5o, 6o; black curves). Then, to analyze its relationship with V _HWM07, we did the same for $V^{*}_{\text{HWM07}} \left( {t,x} \right)$, obtaining $\overline{{{\text{d}}V}}_{\text{HWM07}}^{*} \left( t \right)$ (Figs. 7k, 8o, 9k, and 10o, black curves). Looking at these figures, the maximum values for $\overline{\text{dvTEC}}_{\text{GNSS}}^{*} \left( t \right)$ are in March (with a second maximum in September) for North America, and $\overline{{{\text{d}}V}}_{\text{HWM07}}^{*} \left( t \right)$ shows maximum values during the equinoxes; during the December solstice for Oceania, and $\overline{{{\text{d}}V}}_{\text{HWM07}}^{*} \left( t \right)$ also shows a maximum value during December; in Asia the values are too small, and $\overline{{{\text{d}}V}}_{\text{HWM07}}^{*} \left( t \right)$ shows values near zero throughout the year; and finally in December (with a light tendency in October–November) for South America, and $\overline{{{\text{d}}V}}_{\text{HWM07}}^{*} \left( t \right)$ shows a maximum in September. In the last case, the $\overline{\text{dvTEC}}_{\text{GNSS}}^{*} \left( t \right)$ and $\overline{{{\text{d}}V}}_{\text{HWM07}}^{*} \left( t \right)$ seasonal variations show larger discrepancies. From the previous results (Table 3; Figs. 3o, 4o, 5o, 6o, 7k, 8o, 9k, 10o), we can conclude that the mean wind values obtained from the HWM07 model can explain quantitatively the mean east–west difference in ${\text{vTEC}}_{\text{GNSS}}$ behavior and are also able to closely describe, qualitatively, the seasonal variations of ${\text{dvTEC}}_{\text{GNSS}}$ for all regions except for South America. One reason for this discrepancy could be that the wind model shows some limitations in representing the horizontal winds due to the lack of measurements and physical assumptions, especially when the wind altitude is higher than 250 km (Drob et al. 2015). Another reason could be related to another factor that controls the higher production of vTEC at the west than at the east during night hours, which is linked to the effect of the lower atmosphere–ionosphere electrodynamical coupling and magnetosphere–ionosphere electrodynamical coupling (Xu et al. 2013). However, further study, including other wind models and/or different kinds of measurements, is needed to better understand the discrepancies in these seasonal differences.

Lastly, with respect to general features, there are some coincidences between the vTEC_GNSS results and those obtained using the IRI 2012 model. These include: annual components, longitudinal anomaly, and the MSNA. It is worth noting that although IRI can reproduce these patterns, the vTEC_GNSS shows greater values than the overall average. On the contrary, vTEC_IRI does not show the remnant of the winter anomaly. As was mentioned previously, the change in the winter to summer ratio [O]/[N2] is one of the drivers of the winter anomaly. The IRI 2012 uses the NRLMSIS-00 model to generate this relation (Bilitza et al. 2014), and Burns et al. (2014) demonstrated that this model has some problems in reproducing the change in [O]/[N2]. Therefore, this could be the reason why the IRI 2012 does not show this anomaly.

Appendix: Principal component analysis in one dimension

Let V contain the information of vTEC_GNSS, vTEC_IRI, or vertical wind obtained from HWM07. The columns are the temporal variation, and each row represents a different geographic latitude and longitude, i.e., the spatial variation:

$$V = v_{ij} \left( {t,x} \right) = \left( {\begin{array}{*{20}c} {v_{11} } & \ldots & {v_{1m} } \\ \vdots & \ddots & \vdots \\ {v_{n1} } & \ldots & {v_{nm} } \\ \end{array} } \right)\quad i = 1, \ldots ,n\quad j = 1, \ldots ,m$$

(5)

First we subtract the time average on each row ($\overline{{v_{ij} }}$). The new data set has zero mean.

$$V^{{\prime }} = v^{{\prime }}_{ij} \left( {t,x} \right) = v_{ij} \left( {t,x} \right) - \bar{v}_{ij} \left( {t,x} \right)$$

(6)

Second, the scatter matrix, S, is defined as:

$$S = V^{{\prime {\text{T}}}} V^{\prime }$$

(7)

As S is a square matrix, it has a set of orthonormal eigenvectors (e _j ), enabling a representation of S in a new basis. Using these e _j we can construct the principal components (or amplitudes) of the data set, a _j (t):

$$\varvec{a}_{j} = v_{ij}^{{{\prime }{\text{T}}}} \varvec{e}_{j} \quad {\text{or}}\quad A = V^{{{\prime }{\text{T}}}} E\quad ({\text{Analysis of}}\;V^{\prime})$$

(8)

where the columns of E, {e ₁, e ₂, …, e _m }, are the eigenvectors of S, and each element represents the coefficients to obtain the amplitude in each station.

These a _j (t) can be thought of as a family of time series {a _j (t): t = 1,…, n}. The most important property of these time series is that they are mutually uncorrelated, carrying information about the variance of the data set along the directions e _j .

Finally, and most importantly, the original centered data set can be represented exactly in the form:

$$v_{ij}^{{{\prime }{\text{T}}}} = a_{j} e_{j}^{\text{T}} \quad {\text{or}}\quad V^{{'{\text{T}}}} = AE^{\text{T}} \quad ({\text{Synthesis}}\;{\text{of}}\;V^{{\prime }} )$$

(9)
