Isolated intermediate-depth seismicity north of the Izu peninsula, Japan: implications for subduction of the Philippine Sea Plate


The subduction of the Philippine Sea (PHS) Plate toward the north of Izu peninsula, Japan, is of great interest because intraslab seismicity is absent where the buoyant Izu volcanic arc has been subducting over the past 15 Myr. This study analyzes 42 earthquakes in an isolated seismic cluster that occurred ~ 100 km north of Izu peninsula at depths of 40–90 km and discusses seismogenesis in the context of plate subduction. We picked P- and S-wave arrival times of earthquakes to produce a complete hypocenter catalogue, carried out double-difference event relocations, and then determined focal mechanism solutions of 7 earthquakes from P-wave polarity data. Based on the focal mechanism solution, the largest earthquake (M3.1) is interpreted as a thrust earthquake along the upper surface of the PHS Plate. Locations of other earthquakes relative to the largest event suggest that most earthquakes occur within the subducting PHS Plate. Our results suggest that the PHS Plate north of Izu peninsula has temperatures low enough to facilitate thrust and intraslab earthquakes at depths of 60–90 km. Earthquakes are likely to occur where pore pressures are locally high, which weakens pre-existing faults. The presence of the intermediate-depth seismic cluster indicates the continuous subduction of the PHS Plate toward the north of Izu peninsula without any disruption.


In central Japan, the relatively young Philippine Sea (PHS) Plate is being subducted at the Sagami and Nankai Troughs, while the older Pacific Plate is being subducted below the PHS Plate (Fig. 1). The PHS Plate located east of the Izu volcanic arc formed before 40 Ma, while that located west of the arc formed as a back-arc basin from 27 to 15 Ma (e.g., Okino et al. 1999). The Izu volcanic ridge on the PHS Plate, which formed in an intraoceanic setting, has been colliding with central Japan at the western margin of the Kanto district since 15 Ma (e.g., Soh et al. 1998). Geological observations have revealed the collision and partial accretion of a tectonic slice of buoyant Izu–Bonin arc (e.g., Taira et al. 1998), while seismological observations suggest that only the lower crust and mantle of the Izu volcanic arc are subducting (e.g., Arai et al. 2014).

Fig. 1
figure 1

Tectonic setting of central Japan with seafloor topography. Pink and blue lines denote iso-depth contours of the PHS Plate (Hirose et al. 2008; Nakajima et al. 2009) and Pacific Plate (Nakajima et al. 2009), respectively. Green shading represents an area where the bottom of the PHS Plate is in contact with the upper surface of the Pacific Plate (Nakajima et al. 2009; Uchida et al. 2009). Black triangles denote active volcanoes. Red squares represent the epicenters of thrust earthquakes that occurred along the upper surface of the PHS Plate. The red star denotes the epicenter of the M3.1 earthquake analyzed in this study. The focal mechanism of the M3.1 earthquake, as determined by the Japan Meteorological Agency (JMA), is shown in an equal-area lower-hemisphere projection. Gray arrow shows the relative plate motion of the PHS Plate with respect to the continental plate. The rectangle shows the area highlighted in Fig. 2a

The subduction of the PHS Plate beneath Kanto has been inferred to a depth of ~ 60 km from the occurrence of thrust earthquakes including small repeating earthquakes (red squares in Fig. 1) (Uchida et al. 2010a) and to ~ 120 km from seismicity and the presence of high-velocity anomalies that are interpreted as the mantle of the PHS Plate (e.g., Ishida 1992; Matsubara et al. 2005; Hori 2006; Wu et al. 2007; Nakajima et al. 2009; Uchida et al. 2010a). In contrast, the presence of the PHS Plate beneath Tokai can be confirmed by intensive seismicity that deepens toward the north, to a maximum depth of ~ 60 km (Fig. 2a) (e.g., Nakajima and Hasegawa 2007). However, seismicity is almost absent northwest of Izu peninsula (Fig. 2a), and there is an ongoing debate about whether the PHS Plate is continuous between Kanto and Tokai (e.g., Ishida 1992).

Fig. 2
figure 2

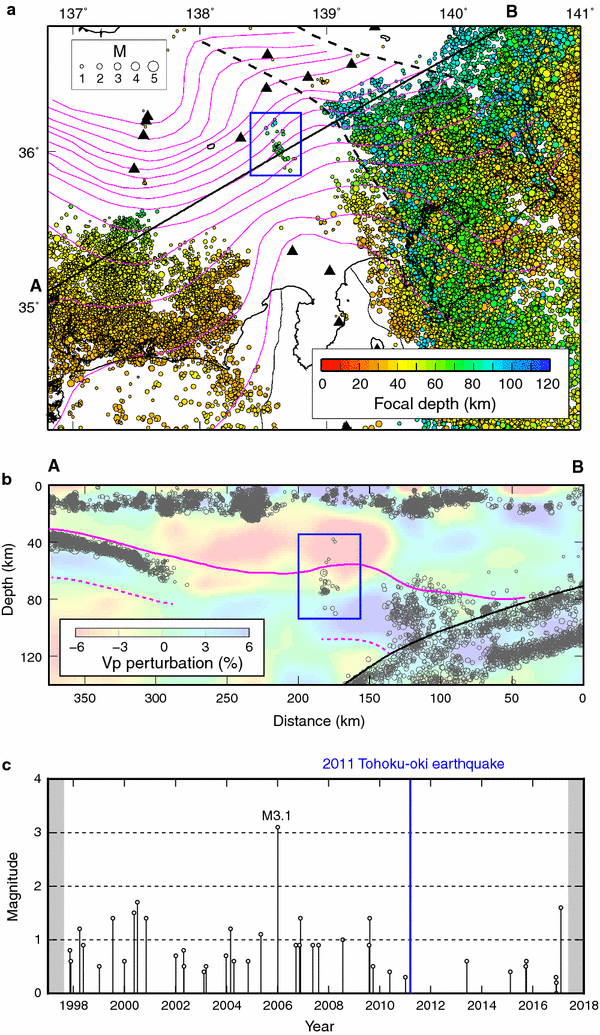

a Distribution of earthquakes at depths of 30–100 km from October 1997 to May 2017. Colors and sizes of circles are proportional to focal depths and earthquake magnitudes, respectively. Dashed lines denote the western and northeastern boundaries of the slab contact zone. The isolated cluster of seismicity analyzed in this study is bounded by the blue rectangle. Line A–B is a profile along which a vertical cross section is shown in b. Other symbols are the same as in Fig. 1. b Vertical color-shaded cross section of P-wave velocity perturbations (Nakajima et al. 2009) along line A–B and seismicity (gray circles) within 10 km of the profile. Pink and black lines represent the upper surfaces of the PHS and Pacific Plates, respectively. Pink dashed line shows the bottom of the PHS Plate inferred from the distribution of high-velocity anomalies. c Magnitude versus time plot of 42 earthquakes that occurred in the area indicated by blue rectangles in a and b. The origin time of the 2011 Tohoku-Oki earthquake is indicated by a vertical blue line. Shaded zones at both ends of the panel denote unanalyzed periods

Since October 1997, the Japan Meteorological Agency (JMA) has processed waveform data from seismograph stations throughout the Japanese islands to produce a comprehensive seismic catalogue (the JMA unified catalogue). This catalogue has reported several earthquakes located ~ 100 km north of Izu peninsula at depths of 40–90 km, forming an isolated cluster of seismic activity (seismicity in blue rectangles in Fig. 2a, b). Matsubara et al. (2008) first pointed out the occurrence of an M3.1 earthquake in 2006 at a depth of 61 km and interpreted that the earthquake occurred on the upper surface of the PHS Plate. Nakajima et al. (2009) followed Matsubara et al.’s interpretation and proposed a continuous plate subduction model between Kanto and Tokai without any disruption or splitting (pink contours in Fig. 1). This study analyzes small earthquakes in the isolated seismic cluster and discusses their seismogenesis in the context of subduction of the PHS Plate.

Data and methods

An isolated seismic cluster is located ~ 100 km north of Izu peninsula at focal depths of 40–90 km. The JMA unified catalogue includes 42 earthquakes in this region from October 1997 to March 2017, with the largest event (M3.1) on January 1, 2006; the 42 earthquakes do not occur in swarms, but rather are evenly distributed over time (Fig. 2c). The spatial distribution of the hypocenters shows that they tend to become deeper toward the north (Fig. 3a).

Fig. 3
figure 3

a Map and cross-sectional views of the JMA locations of 42 earthquakes analyzed in this study. Colors and sizes of circles are proportional to the focal depth and magnitude, respectively. The focal mechanism of the M3.1 earthquake determined by the JMA is shown. Gray squares with names denote seismograph stations. The dashed rectangle outlines the area shown in b. b Density scatter plots (small dots) of two earthquakes at depths of 50–55 km. Circles and stars denote JMA hypocenters and hypocenters relocated by NLLoc (Lomax et al. 2000), respectively. In the inset, red and black lines denote the 1D P-wave velocity model used in NLLoc and the JMA2001 model (Ueno et al. 2001), respectively

For the 24 earthquakes that occurred after 2004, waveform data were downloaded from the Hi-net Web site ( and P- and S-wave arrival times were manually picked at stations whose arrival times were not determined by the JMA, to produce a complete phase arrival catalogue. SP times at stations with epicentral distances of ≤ 10 km are positively correlated with the focal depths determined by the JMA (Fig. 4a). Examples of waveforms recorded at station N.KWKH, the nearest station to the epicenter of the M3.1 earthquake (see Fig. 3), show that the onsets of P- and S-waves are clear on the vertical and horizontal components, respectively, and that arrival times can be identified with uncertainties of < 0.1 s for P-waves and < 0.3 s for S-waves (Fig. 4b). We are therefore confident that the depth extent of the 42 earthquakes over 50 km is constrained well by SP times determined from high-quality waveforms. Since waveforms of the earthquakes include high-frequency (> 10 Hz) energy, these earthquakes cannot be deep low-frequency earthquakes, which have a dominant frequency of 2–4 Hz and virtually no energy above 8 Hz (e.g., Hasegawa and Yamamoto 1994; Ukawa 2005).

Fig. 4
figure 4

a Distribution of focal depths with respect to SP times observed at stations with epicentral distances of < 10 km. Error bars in focal depths are taken from the JMA unified catalogue; error bars for SP times are calculated from uncertainties in each P- and S-wave pick. b Examples of waveforms of UD and NS components at station N.KWKH. Waveforms are band-passed from 2 to 16 Hz and then aligned with manually picked P-wave arrival times. P- and S-wave arrival times are indicated by arrows on the UD and NS components, respectively. Focal depths and magnitudes are indicated in the leftmost side below each waveform. Waveforms are not shown for earthquakes without P-wave picks at this station

To improve the relative hypocenter locations, the earthquakes were relocated with the double-difference relocation algorithm (hypoDD) (Waldhauser and Ellsworth 2000) using phase-picked differential travel times with a maximum earthquake pair separation of 10 km. A total of 3823 P-wave and 3726 S-wave differential time data were obtained at 59 stations. Forty of the initial 42 earthquakes were relocatable (Figs. 3, 5). The standard deviations of the hypocentral shifts of relocated earthquakes with respect to the initial JMA locations were 1.2, 1.3, and 1.0 km in latitude, longitude, and depth, respectively. Two earthquakes relocated to depths of 50–55 km were 5–10 km shallower than the upper surface of the PHS Plate. The missing earthquakes were the two shallowest earthquakes, with JMA focal depths of ~ 40 km.

Fig. 5
figure 5

a Map showing the distribution of 40 earthquakes relocated with hypoDD (see text for procedural details). Available earthquake focal mechanisms (#1–#7 and M3.1 earthquake) are shown in equal-area lower-hemisphere projections. Two lines, A–A’ and B–B’, are profiles along which cross sections are shown in b and c, respectively. b Vertical cross section of earthquakes along line A–A’, showing events within 3 km of the line. c As for b, but for line B–B’. d Focal mechanism solutions of seven earthquakes (#1–#7) determined in this study. Filled and open circles indicate compressional and dilatational first motions, respectively. Magnitudes of earthquakes are shown above their respective beach ball plots

Since double-difference relocation does not significantly improve the absolute locations, the absolute errors of the two earthquakes at 50–55 km were estimated by probabilistic, nonlinear hypocenter relocation (NLLoc) (Lomax et al. 2000). Unlike linear approaches, NLLoc provides comprehensive uncertainty and relocation information, represented by an a posteriori probability density function. We first constructed a one-dimensional (1D) layered P-wave velocity model (red line in the inset in Fig. 3b) based on the JMA2001 velocity model (Ueno et al. 2001) and then relocated the two earthquakes using manually picked P- and S-wave arrival times assuming a constant Vp/Vs ratio of 1.73. Relocated results showed that the two earthquakes deepened slightly with respect to the JMA locations, but are still located ~ 5 km above the upper boundary of the PHS Plate (Fig. 3b).

The JMA determined the focal mechanism of the M3.1 earthquake to be reverse faulting (Fig. 1). To investigate the focal mechanism solutions of other small earthquakes, the P-wave polarities of the 24 earthquakes after 2004 were picked and the focal mechanisms were determined for earthquakes with 10 or more polarities using the method of Hardebeck and Shearer (2002). As a result, focal mechanisms were obtained for seven additional earthquakes with polarity errors of < 15%. Six of the seven focal mechanisms show reverse or strike-slip faulting (Fig. 5d).

Results and discussion

The relocated hypocenters do not differ substantially from the initial JMA locations (Figs. 3, 5), but seismicity located at ~ 75 km depth in the central part of the seismic cluster was tightened after relocation. The M3.1 earthquake was relocated to 63 km. One of the nodal planes of the M3.1 earthquake has a dip of 30°, which is roughly consistent with the dip of the upper surface of the PHS Plate (Fig. 5b). The slip vector of the M3.1 earthquake (N40°W) is sub-parallel to the relative plate motion between the PHS Plate and the overlying continental plates (N48°W for the North American Plate; N54°W for the Okhotsk Plate) (Kreemer et al. 2014). Most events occur deeper than the M3.1 earthquake, and none of the deeper earthquakes has a thrust-type focal mechanism; therefore, a simple interpretation is that the M3.1 earthquake occurred along the upper surface of the PHS Plate, as assumed by Matsubara et al. (2008) and Nakajima et al. (2009), while other earthquakes occurred in the subducting PHS Plate.

One key to interpreting seismogenesis in the subducting PHS Plate is the thermal regime, because thrust (interplate) and mantle earthquakes are considered to occur at temperatures of < 350 °C (e.g., Hyndman et al. 1997) and < 600–650 °C (e.g., McKenzie et al. 2005; Braunmiller and Nábělek 2008), respectively, above which materials are ductile. Numerical simulations of PHS Plate subduction suggest that temperatures at the locations of deep thrust earthquakes at 50–60 km beneath Kanto (red squares in Fig. 1) and the M3.1 earthquake are well above 400 °C (Yoshioka et al. 2015; Wada and He 2017), higher than the critical temperature of thrust earthquakes. Existing thermal models assume that the age of the incoming PHS Plate is 20–40 Ma and pre-subduction plate temperatures are calculated with a 1D cooling model of an oceanic plate (Ji et al. 2017; Wada and He 2017). However, as a result of subduction of the Pacific Plate beneath the PHS Plate along the Izu–Bonin trench, the fore-arc of the incoming PHS Plate is cooled long before its subduction by the underlying cold Pacific Plate (Fig. 1). This effect, which is not fully modeled in the numerical simulations, may lower pre-subduction temperatures significantly in the fore-arc of the PHS Plate relative to the initial plate temperatures prescribed in the numerical models. If this is the case, actual temperature conditions of the slab surface may be much lower than those modeled in numerical simulations, and such low temperatures may trigger thrust earthquakes even at depths of 50–60 km, where the M3.1 earthquake (red star in Fig. 1) and deep thrust earthquakes beneath Kanto (red squares in Fig. 1) occurred. Numerical simulations of PHS Plate subduction in consideration of the pre-subduction cooling effect will aid our understanding of the seismogenesis of deep thrust earthquakes of the PHS Plate.

Our interpretation of the M3.1 earthquake at 63 km is a thrust earthquake along the upper surface of the PHS Plate, because the depth of the M3.1 earthquake is comparable to that of deep thrust earthquakes beneath Kanto (50–60 km) and the focal mechanism can be explained by shear slip on the PHS Plate. Considering the locations of other earthquakes relative to the M3.1 earthquake, the majority occur within 5–15 km from the slab surface. The pre-subduction crustal thickness of the fore-arc and sub-arc PHS Plate is estimated to be 7–25 km and shows marked spatial variations resulting from the evolutionary history of crustal structure (e.g., Kamimura et al. 2002; Takahashi et al. 2009; Kodaira et al. 2010). In addition, the crust of the PHS Plate is possibly thinned by an accretionary process at the collision zone (e.g., Taira et al. 1998; Arai et al. 2014). These complex evolution and subduction processes make it difficult to conclude whether earthquakes occur mainly in the subducting crust or the subducting mantle.

The seismic cluster analyzed in this study is distributed across an area of 30 × 10 km. The localization of seismicity surrounded by an aseismic portion of the slab suggests differences in the mechanical properties of the two regions. Since slab stress is unlikely to vary significantly in space on such length scales, it is postulated that the PHS slab is locally hydrated in the seismogenic region, thereby facilitating intermediate-depth earthquakes by fluid-related embrittlement (e.g., Hacker et al. 2003; Hasegawa and Nakajima 2017). Overpressurized fluids weaken fault strength and eventually induce the reactivation of pre-existing, variously oriented faults under differential stresses generated by subduction. Although it has been suggested that the PHS Plate beneath the Izu volcanic arc was dried as a result of the consumption of a large amount of fluid for melt production before subduction (Arai et al. 2014), the seismogenic region may have been locally hydrated before subduction and remained hydrated afterward.

The hypocenters relocated by NLLoc show that the absolute location errors of two earthquakes at depths of 50–55 km are < 5 km (Fig. 3b), suggesting that they occurred in the uppermost mantle; the depth of the continental Moho in the region is estimated to be ~ 40 km (Katsumata 2010). Mantle earthquakes are not usual, but earthquakes above the subducting plate are locally observed down to a depth of ~ 60 km in NE Japan (Uchida et al. 2010b). Temperatures around mantle earthquakes in NE Japan are estimated to be 400 °C (e.g., Wada et al. 2015), which is well below the 600–650 °C critical temperature of mantle earthquakes (e.g., McKenzie et al. 2005; Braunmiller and Nábělek 2008). Since the estimated values of surface heat flow are not very high above the seismic cluster (Yoshioka et al. 2015) and the slab surface temperatures are likely to be < 350 °C at the location of the M3.1 earthquake, temperatures 5–10 km above the slab surface might be low enough for mantle earthquakes to occur at 50–60 km depth. Such earthquakes are likely to be facilitated by slab-derived fluids in a spot where permeability is low and pore fluid pressures can be enhanced to near-lithostatic values to bring the system into brittle failure.

A volume of intense seismic activity isolated from nearby seismicity is known as an earthquake nest: One famous example is the Bucaramanga Nest in Colombia at depths of 145–165 km. The Bucaramanga Nest includes normal and reverse fault earthquakes with similar waveforms, which are interpreted as repeating ruptures on the same fault or sub-parallel faults with reserved slip directions (e.g., Prieto et al. 2012). In the Pacific slab beneath NE Japan, nest-like seismicity is observed at a depth of ~ 155 km (Nakajima et al. 2013), and the seismicity includes tensional earthquakes located 1 km above compressional earthquakes. Nakajima et al. (2013) suggested that eclogitization-related stresses cause local tension within a volume of down-dip compressional stresses in the slab crust. Even though a pair of tensional and compressional earthquakes was not identified in the seismicity of this study at depths of ~ 75 km (Fig. 5), the lateral extent of the seismicity is comparable to that of the nest-like seismicity in NE Japan. The occurrences of larger earthquakes in this cluster would enable us to increase the number of focal mechanisms and to better constrain relative earthquake locations. Further studies of this cluster and other nests at intermediate depths will improve our understanding of the genesis of intermediate-depth earthquakes.


We analyzed an isolated cluster of seismicity north of Izu peninsula in a depth range of 40–90 km, relocated 40 earthquakes by hypoDD using catalogue-derived arrival time differences, and determined focal mechanism solutions of seven earthquakes from P-wave polarity data. A total of 37 earthquakes occurred in the subducting PHS Plate and 2 occurred in the overlying mantle. We interpret the M3.1 earthquake as a thrust earthquake. Although there are no observations other than the focal mechanism to support the conclusion that the M3.1 earthquake occurred on the PHS Plate, earthquakes outside subducting plates at depths of > 60 km have yet to be observed beneath the Japanese islands. Therefore, it is concluded that the majority of the earthquakes in the isolated cluster are distributed in the PHS Plate, where temperatures are sufficiently low, pore fluid pressures are locally high, and earthquakes are consequently facilitated under the deviatoric stresses generated by plate subduction.

The seismic cluster analyzed in this study provides a direct observation supporting the subduction of the PHS Plate toward the north of Izu peninsula. However, the lateral extent of the seismic cluster is too small to update the iso-depth contours of the PHS Plate proposed in previous studies. High-resolution seismic tomography and waveform analysis, as well as the detection of smaller intraslab earthquakes north of Izu peninsula, will provide additional constraints on the subduction and continuity of the PHS Plate in this tectonically complex area.



Philippine Sea
