Triangulation scale error caused by the 1894 Shonai earthquake: a possible cause of erroneous interpretation of seismic potential along the Japan Trench

Abstract

Horizontal crustal strain in the Tohoku area during the twentieth century based on triangulation showed N–S extension and E–W contraction was not significant. This feature was one of the reasons why the 2011 Tohoku-oki earthquake was unexpected for many scientists. The first triangulation conducted in the late nineteenth century used a length scale defined by baseline surveys, direct measurements of short (2–10 km) baselines with steel rods. The Shionohara baseline in the Yamagata prefecture was measured in May–July 1894 and the 1894 Shonai (M7.0) earthquake occurred in its western neighbor 3 months after the measurement. The earthquake possibly elongated the baseline by as large as 5 cm or 10 ppm. However, the original length measured before the earthquake was used for the network adjustment of the entire triangulation network, causing extensive underestimation of the length scale of the network as large as 5–10 ppm in northeast Japan. The scale error effect was comparable to tectonic deformation signal over 100 years. The baseline length was re-surveyed in 2012, 1 year after the Tohoku-oki earthquake, and the result is consistent with the hypothesis of scale bias considering interseismic deformation.

Introduction

The 2011 Mw9.0 Tohoku-oki earthquake was an unexpected giant earthquake for most seismologists. Matsuzawa (2011) summarized five reasons why seismologists believed that there would be no potential for a giant M9 earthquake along the Japan Trench: (1) The subducting Pacific plate is old and cold. Based on comparative subductology (Uyeda and Kanamori 1979), interplate coupling was considered small; (2) triangulation data for the last 100 years showed no E–W contraction; (3) there existed a high activity of small to middle sized earthquakes that were supposed to release tectonic strain at weakly coupled plate interface; (4) major earthquakes along the Japan trench were followed by large afterslip (e.g. Kawasaki et al. 2001), which suggested interplate coupling was not strong; (5) many small repeating earthquakes have been occurring along the Japan Trench (Igarashi et al. 2003), which indicates fault creep on the plate interface. Among these reasons, the lack of E–W contraction during the last 100 years was the most important since an E–W contraction is direct evidence of tectonic stress build-up associated with the subduction of the Pacific plate and interplate coupling. In this paper, we argue this understanding was probably inaccurate and try to explain why such misunderstanding occurred.

The Japanese triangulation network was established in the late nineteenth century to provide a reference for precise surveying and mapping of the whole country. Since Japan is located in a tectonically active region, conspicuous crustal deformation occurs associated with large earthquakes and volcanic activities. In addition, significant crustal deformation also occurs during interseismic periods, reflecting tectonic stress build-up due to plate motions. Resurveying of the triangulation network has provided us with important knowledge about crustal movements, and many studies have been conducted by utilizing those data (e.g. Muto 1932; Ando 1971; Harada and Kassai 1971; Nakane 1973a, b; Sato 1973; Fujii et al. 1986; Tada 1986; Hashimoto 1990; Hashimoto and Jackson 1993; Ishikawa and Hashimoto 1999).

In northeastern Honshu, the main island of Japan, continuous GPS observation has revealed accumulation of E–W contraction in the late 1990′s (Fig. 1b) (Sagiya et al. 2000) and numerous studies had pointed out accumulation of interplate slip deficit (Ito et al. 2000; Mazzotti et al. 2000; Nishimura et al. 2004; Hashimoto et al. 2009). On the other hand, crustal strain obtained from the comparison between triangulation results over a century was dominated by N–S extension and E–W contraction due to subduction of the Pacific plate was not apparent (Fig. 1c) (Fujii et al. 1986; Tada 1986; Hashimoto 1990; Ishikawa et al. 1998; Ishikawa and Hashimoto 1999). These results were considered as important evidence to hypothesize that crustal strain caused by interplate coupling was released in some way and had not been accumulated in a long term (Matsuzawa 2011). Along the Japan Trench, afterslips of several major earthquakes were reported to be even larger than the main shocks (Heki et al. 1997; Kawasaki et al. 2001). Thus, these afterslips were considered to play an important role to keep the seismic moment budget along the Japan Trench and seismologists believed there was virtually no long-term slip deficit.

Fig. 1
figure 1

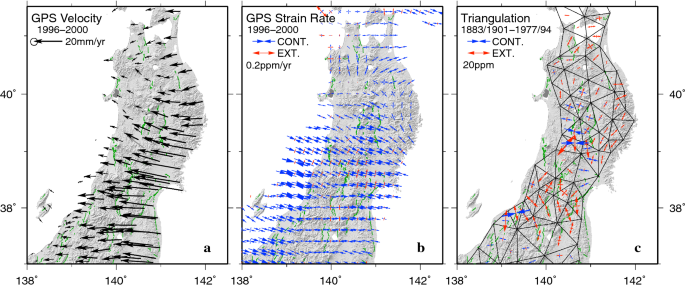

Geodetic data in the Tohoku area. a GPS velocity during 1996–2000. Reference point is Oogata (950241) along the Japan Sea coast of the southwestern end of the plot. Green lines show the active fault traces. Gray velocity arrows are removed for the strain rate calculation because of local disturbances. b Strain rate distribution calculated from GPS velocity using the method of Shen et al. (1996). c Strain distribution from repeated triangulation (1883/1901—1977/94)

The occurrence of the 2011 Tohoku-oki earthquake revealed that our evaluation about the seismic moment budget was wrong, implying a possible defect in the interpretation of the triangulation records. However, there has been no explanation why such misunderstanding occurred. In the following, we demonstrate that an unintentional error in the original triangulation in the l890′s has brought a significant bias in the reference system over a wide area in northeast Japan and caused misinterpretation of the crustal deformation which led to the underestimation of accumulated slip deficit along the Japan Trench.

Strain rate of northeast Japan

Figure 1 compares the strain rate distribution in northeast Japan based on GPS data during 1996–2000 and that based on triangulation for 100 years (Ishikawa et al. 1998). E–W contraction is evident all over the Tohoku area in the GPS result. On the other hand, E–W contraction is not evident in the triangulation result over the twentieth century and significant N–S extension is identified. Similar pattern was reported by Hashimoto (1990) and Ishikawa and Hashimoto (1999) who corrected coseismic offsets due to major earthquakes to estimate interseismic crustal strain rate.

Discrepancies between the two results need some explanation. One possible explanation is that E–W contraction was a short-term feature that would be released by aseismic fault slips either as afterslips following large earthquakes or as unknown slow slip events during interseismic periods. Kawasaki et al. (2001) demonstrated that aseismic fault slips following M7 class earthquakes along the Japan trench contribute equally to or even larger than the coseismic slips. Plate boundary slips can release interseismic E–W contraction. But this interpretation cannot explain how to reproduce N–S extension identified in the triangulation.

Another possibility to be considered is a scale bias in the triangulation data. The strain distribution shown in Fig. 1c is obtained from two surveys, one during the 1890′s by a triangulation survey, and the other during the 1980′s by a trilateration survey. In the latter survey, each baseline length was directly measured using electromagnetic distance measurement (EDM). On the other hand, the first survey was conducted mainly by measurements of angles between the triangulation control points. The distance scale of the triangulation network was defined by baseline surveys, direct measurements of short baselines using 4-m-long steel rods called Hilgard baseline rods. In case of the Japanese triangulation network, there were 15 baselines all over the Japan islands (7 in Honshu, 1 in Shikoku, 2 in Kyushu, 4 in Hokkaido, 1 in Okinawa) with a baseline length of 2–10 km (Fig. 2). If a baseline length measurement has an error that will affect the size of the surrounding triangulation network. As is schematically shown in Fig. 3, if the original triangulation network had a systematic bias due to a scale error originating from an erroneous baseline length, the scale error not only suppresses the E–W contraction signal but also generates N–S extension at the same time. Thus, the N–S extension found in the triangulation data may suggest an existence of a scale bias on the order of ~ 10 ppm. Fujii et al. (1986) pointed out a possibility of a scale error of ~ 3 ppm in the crustal strain in the Tohoku area since that was the accuracy of the triangulation survey in the nineteenth century. But no more investigation was conducted after that.

Fig. 2
figure 2

First-order triangulation network in Japan except for Hokkaido. Dense networks with gray circular background indicate the locations of baselines. The network shown by red color was measured until October 1894 while the blue network was measured after October 1894

Fig. 3
figure 3

Schematic diagram showing an apparent N–S extension as a sum of a true E–W contraction signal plus an isotropic scale error

Such a significant discrepancy between crustal strain patterns is found only in the Tohoku area. This indicates, if the baseline survey caused this discrepancy, the baseline in the Tohoku area should be responsible for the error. As is shown in Fig. 2, there are only two baselines in the Tohoku area, one is the Shionohara baseline in the Yamagata Prefecture in middle Tohoku, and the other is the Tsurunokotai baseline in the Aomori Prefecture. Since the discrepancy between the GPS and triangulation strain rate pattern is significant in middle-southern Tohoku, we considered the measurement of the Shionohara baseline might have a problem.

The Shionohara baseline

The Shionohara baseline (5129.5872 m) is composed of the two first-order triangulation control points at its eastern and western ends. This is the only original baseline in Japan whose both control points still exist at their original locations today, connected by a straight road for surveying. The baseline was constructed and measured from May to July in 1894. Then, surveys of a dense triangulation network around the Shionohara baseline was conducted from August to October in 1894. To the south of the Shionohara baseline, the Pacific coastal side was surveyed before 1894, while the Japan Sea coastal side was surveyed later. The whole network to the north was surveyed afterward (Fig. 2). The original survey as well as calculation records of the Shionohara baseline is preserved in the archives of the Geospatial Information Authority of Japan (former Geographical Survey Institute, the successor of the Military Land Survey that conducted the original triangulation survey). We checked the original calculation log for the Shionohara baseline. Detailed survey record is shown in Table 1. The overview of the baseline survey is summarized as follows.

The 5.1-km-long baseline was divided into 12 segments whose lengths were 390–491 m. Each segment was measured 4 times on different days, twice in the morning (5–9 a.m.) and the rest in the evening (3–7 p.m.), and the measurement of each segment took a half day. The measurement was conducted from May 31 to July 5, 1894. Based on the four measurements of each segment, the standard deviation ranges 0.2–1.1 mm, corresponding to a relative precision of 0.4–2.8 ppm. The final baseline length and its error were evaluated based on those four independent measurements. Obtained baseline lengths for each measurement was 5129.5870, 5129.5808, 5129.5943, and 5129.5867 m. The final value of the baseline length was obtained as the average of the four independent measurements, 5129.5872 ± 0.0055 m. The formal error (single standard deviation) was 1.1 ppm. It is concluded that the measurement was conducted very precisely and the baseline measurement error is not feasible to explain the possible scale error of ~ 10 ppm in the triangulation. On the other hand, as we already mentioned, we noticed that the baseline measurement was conducted during May to July of 1894, which implies a possibility that the baseline was heavily affected by a large inland earthquake that occurred near the baseline, the 1894 Shonai earthquake (M7.0) on October 22 of the same year.

Table 1 Detailed survey record of the Shionohara baseline

The 1894 M7.0 Shonai earthquake

The 1894 Shonai earthquake was one of the most devastating earthquake in the Yamagata Prefecture of the western Tohoku area in its recent history. The earthquake is supposed to have occurred along the Eastern Shonai Plain fault zone, an eastward dipping reverse fault located at the eastern edge of the Shonai plain (Headquarters for the Earthquake Research Promotion 2009). Based on seismic intensity data, the magnitude of this earthquake was estimated as M7.0 (Usami 2003). As is shown in Fig. 4, the distance between the surface trace of the Eastern Shonai Plain fault zone and the Shionohara baseline is only about 30 km. It is highly possible that the baseline length was significantly altered by the coseismic as well as postseismic deformation of the 1894 Shonai earthquake.

Fig. 4
figure 4

Local map of the source region of the 1894 Shonai earthquake. The red lines denote the Eastern Shonai Plain fault zone. The pink ellipse denotes the area of severe damage (seismic intensity 5+ or larger). SB denotes the location of the Shionohara baseline. MOGA, SHIN, TACH are the GEONET stations

Although there exist no instrumental observation data of the 1894 Shonai earthquake, we estimate its possible effect on the Shionohara baseline. We assume a single rectangular fault plane and use elastic dislocation model (Okada 1985) to calculate length change of the Shionohara baseline due to the faulting of the 1894 Shonai earthquake. Since there is a large uncertainty in fault parameters, we test a range of fault parameters as summarized in Table 2. We conduct a Monte Carlo simulation for 1 million runs for different moment magnitude cases (Mw 6.8–7.2), and the results are shown in Fig. 5 as probability distribution for the length change of the Shionohara baseline. The simulation result clearly shows that 5 cm (~ 10 ppm) elongation is feasible for an earthquake with moment magnitude 6.9–7.0. On the contrary, if the moment magnitude was smaller than 6.9 or larger than 7.0, the expected baseline length change will become shorter. It is reasonable that a smaller event causes less effect. On the other hand, as long as we assume a shallow-dipping uniform rectangular fault, coseismic displacement of larger earthquakes extends to a larger distance and the spatial gradient of the displacement becomes smaller near the source fault. It should be noted that actual earthquake sources are much more complex and the resultant displacements or baseline length changes can be different.

Table 2 Fault parameters of the 1894 Shonai earthquake and its tested ranges and assumed sampling in the Monte Carlo simulations
Fig. 5
figure 5

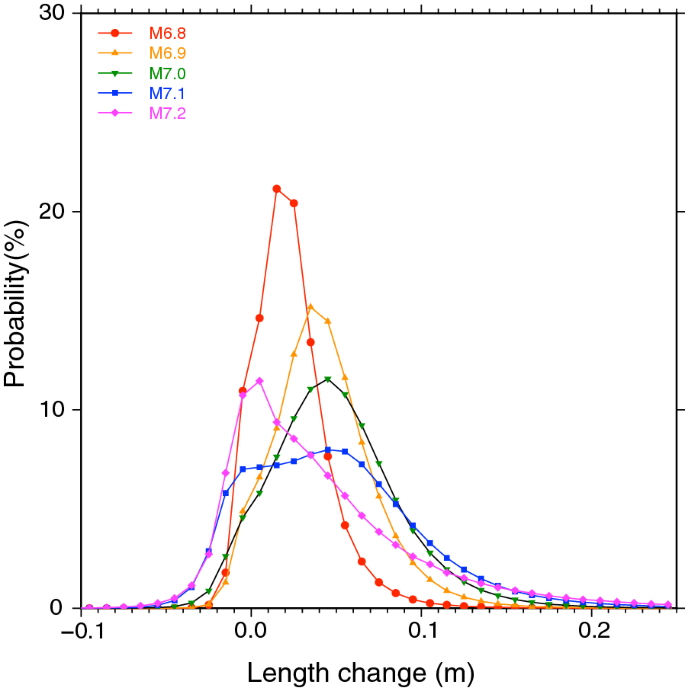

Monte Carlo simulation results for the length change of the Shionohara baseline due to the 1894 Shonai earthquake. Each curve shows a probability distribution of expected baseline length change for different moment magnitude obtained from 1 million test cases

There can be a significant deformation due to postseismic deformation of the Shonai earthquake. Such a postseismic deformation was observed, for example, following the 2008 Iwate-Miyagi earthquake (Ohzono et al. 2012). According to Ohzono et al. (2012), the postseismic deformation may have added extension to the coseismic one on the hanging-wall side at the distance from 20 to 30 km, and the extension rate was around 1 ppm/year. Thus, it is reasonable to assume that, in the case of the Shonai earthquake, the coseismic change had a larger effect on the Shionohara baseline by an order of magnitude than the postseismic deformation.

In summary, we conclude that it is highly possible that the 1894 Shonai earthquake elongated the Shionohara baseline by as large as 5 cm or 10 ppm.

Scale bias effects in the triangulation

We hypothesize that the Shionohara baseline was elongated by about 5 cm due to the 1894 Shonai earthquake shortly after its measurement. We first confirmed that the original baseline length (5129.5872 m) was used for the network adjustment for the nationwide triangulation network. Then the question is how this wrong baseline length affected the network adjustment. As is shown in Fig. 2, observation before (red color in Fig. 2) and after (blue color in Fig. 2) the 1894 Shonai earthquake is mixed in the dataset of the first survey. Thus, it is not straightforward to extract the effects of coseismic deformation. In this study, we conduct a network adjustment calculation simply by changing the Shionohara baseline length and compared the result with the original one to calculate differential strain between those solutions. This approach is supposed to demonstrate the scale bias effect at its maximum possible level for a specific value of the baseline length error. We use a triangulation network adjustment code PLATEAU (Program for Large-scale Geodetic Network Adjustment) developed by Komaki (1993) for our analysis. We conduct network adjustment calculation for three cases. In the first case, the original length (5129.5872 m) for the Shionohara baseline is assumed. Considering the coseismic displacement of the 1894 Shonai earthquake, this result has a bias of − 5 cm (− 9.7 ppm) for the Shionohara baseline to calculate coordinates after 1894. In the second case, the Shionohara baseline length is assumed to be 5129.6372 m, that is, a presumably correct value after the Shonai earthquake. As a third case, we also conduct a network adjustment with the Shionohara baseline length of 5129.6872 m, + 10 cm (+ 19.5 ppm) change from the original value. We confirm that the strain bias over the whole network is simply proportional to the assumed baseline length correction. So we mainly discuss the comparison of the first two cases. We calculate the coordinate differences (the + 5 cm case minus the original case) between these two network adjusted solutions and convert them into a 2-dimensional strain tensor for each triangle composed of the first-order control points (Fig. 6). As is shown in Fig. 6, the baseline bias has a significant as well as extensive effect on the scale of the triangulation network. Dilatational strain is biased more than 6 ppm over the whole Tohoku region and a smaller effect over 2 ppm is recognized even in the Kanto and northern Chubu regions. Such an extensive effect is reasonable considering the location of the Shionohara baseline. As was previously mentioned, there were only two baselines in the Tohoku area and one of them is located at the northern end. Since the triangulation survey in the nineteenth century was conducted to provide the first geodetic reference for the Japanese territory, there was no reference for the absolute position beforehand. Under such a condition, the biased baseline length of the Shionohara baseline downscaled the triangulation network mainly in the Tohoku area as large as 5–10 ppm.

Fig. 6
figure 6

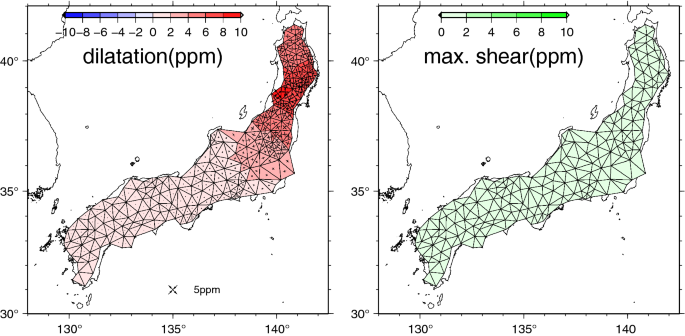

Strain bias due to a + 5 cm error of the Shionohara baseline. a Arrows indicate principal strain axes, and dilatational bias is shown by colors. b Bias in the maximum shear strain

We also show distribution of the maximum shear strain change in Fig. 6b. The effect of the baseline bias is negligible (less than 1 ppm) for the maximum shear strain. The result is consistent with the fact that shear strain can be obtained only from angle measurements (e.g. Frank 1966). Fukushima et al. (2012) compared the shear strain distribution based on both triangulation data and GPS results before 2011 and concluded that E–W contraction has been continued over the twentieth century although the shortening might be enhanced in the southern Tohoku area. Our calculation result supports their conclusion.

Figure 7 shows the horizontal crustal strain over 100 years after a correction of the scale bias. Since the scale bias effect appears only in the dilatational strain but not in the shear strain component, we simply subtract a half of the dilatational bias (Fig. 6a) from the principal strain axes (Fig. 1c). Figure 7a shows the scale correction result for the case of + 5 cm. N–S extension in the central Tohoku area has disappeared and the strain pattern looks closer to the GPS-based strain rate distribution (Fig. 1b). On the other hand, N–S extension is still evident in the southern Tohoku area around 38ºN. Crustal strain in this area may be heavily affected by the 1938 Shioya-oki earthquakes (Abe 1977) and the 1964 Niigata earthquake (e.g. Abe 1975). There can be some other unknown sources of error or bias in the triangulation network. We just point out that 10 cm correction of the Shionohara baseline improves the situation better as shown in Fig. 7b.

Fig. 7
figure 7

Crustal strain during the 100 years after correction of scale bias. a Case of + 5 cm of the Shionohara baseline. b Case of + 10 cm

We also tested correction of the possible 1894 Shonai earthquake in the original triangulation. For this purpose, we hypothesize two fault models of the 1894 Shonai earthquake (source parameters are shown in Table 4), corresponding to 5 and 10 cm of the Shionohara baseline elongation. Then we calculate coseismic displacement at benchmarks using the elastic dislocation code by Okada (1985) and corrected the triangulation angles measured before the 1894 earthquake. We conducted network adjustments using these corrected angles and baseline length for two cases and evaluate the expected crustal strain distribution (Additional file 1: Figure S1). These corrected crustal strain distributions show some notable changes from those in Fig. 7, for example, in the degree of the N–S extension due to the scale bias. However, the overall strain patterns do not change from those in Fig. 7 and the effect of coseismic angle changes is not serious. Since the hypothetical fault model contains large uncertainties, we prefer to present Fig. 7 to demonstrate the scale bias effects on the triangulation result.

Re-survey of the Shionohara baseline

As is already mentioned, the control points at both ends of the Shionohara baseline still exist at their original positions. The current length of the baseline may provide an additional constraint on the coseismic disturbance of the 1894 Shonai earthquake. Therefore, we conducted the baseline length survey in August 2012.

We measure the baseline length by using GPS. Currently, the eastern control point is located beneath a roadway and the western control point is located at the edge of a cedar grove, and both locations are not suitable for GPS measurement (Fig. 8). Thus, we established temporary benchmarks to conduct static GPS measurements and obtain the correction vectors between the temporary benchmarks and the baseline control points by using a total station. GPS observation was done for two 6-h sessions. We analyze GPS data by using Bernese GNSS software version 5.2 with the final satellite orbit and earth rotation parameters provided by the International GNSS Service (IGS). The observation result was summarized in Table 3. Since the original baseline length was calculated on the Bessel ellipsoid referring to the old Japanese geodetic datum, we convert the coordinates of the both control points from the GRS80 ellipsoid to the Bessel ellipsoid using the TKY2JGD software provided by the Geospatial Information Authority of Japan (http://vldb.gsi.go.jp/sokuchi/surveycalc/tky2jgd/main.html). Finally, we obtain a baseline length in 2012 as 5129.6526 m (Bessel ellipsoid), which is longer than the original value (May–July 1894) by 0.0654 m (12.7 ppm). The total measurement error in our 2012 survey is estimated to be about 5 mm.

Fig. 8
figure 8

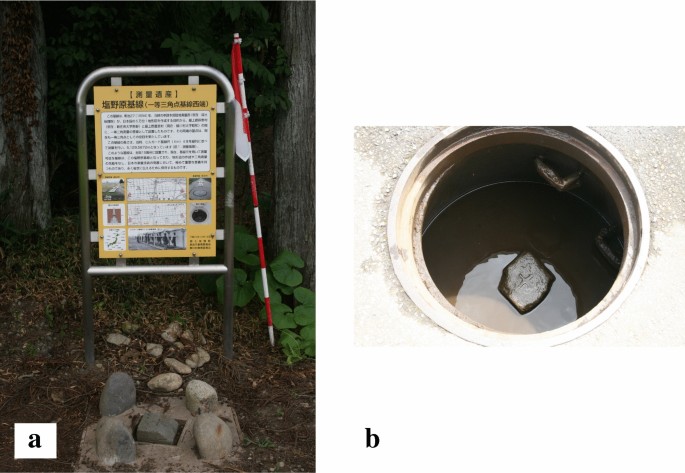

Photographs of the first-order triangulation control points of the Shionohara baseline (photographs taken by T. Sagiya). a Western end. b Eastern end

Table 3 Measured coordinates and length of the Shionohara baseline

In order to compare the baseline length in 2012 with that in 1894, we need to consider effects of various earthquakes in the surrounding areas and interseismic deformation during last 100 years. Among them, the 2011 Tohoku-oki earthquake contributed to the largest baseline change. Two GEONET baselines, Mogami (MOGA)-Shinjo (SHIN) (15.6 km) and Shinjo (SHIN)-Tachikawa (TACH) (31.4 km) aligned in the E–W direction nearly parallel to the Shionohara baseline (see Fig. 4 for locations), had length changes of ~ 0.25 m (+ 16.0 ppm) and ~ 0.50 m (+ 15.9 ppm), respectively, including coseismic as well as postseismic changes until August 2012. Thus, the total effects of the 2011 Tohoku-oki earthquake on the Shionohara baseline are evaluated as an elongation of around + 16 ppm (8 cm). Based on the GPS data before 2011, baseline length change rate for Mogami-Shinjo was nearly 0 and that of the Shinjo-Tachikawa was − 3 mm/year (− 0.1 ppm/year). It is reasonable to assume the interseismic shortening ratio of the Shionohara baseline as 0–0.1 ppm/year.

Table 4 and Additional file 2: Figure S2 summarizes major earthquakes between 1894 and 2011 in and around the Tohoku area and coseismic baseline length change based on an elastic dislocation model using the Okada’s (1985) code. The 1964 Niigata earthquake (M7.5, + 8.0 mm) and the 2008 Iwate-Miyagi Nairiku earthquake (Mw7.2, + 11.3 mm) are considered to have the largest effects on the Shionohara baseline. The total effect of these earthquakes is expected to be around + 20 mm. We also evaluate postseismic viscoelastic relaxation effects of these earthquakes using PSGRN/PSCMP software (Wang et al. 2006) assuming the lithospheric thickness of 50 km and the asthenospheric viscosity of 1.0 × 1019 Pa s. Large postseismic effects until 2012 are expected for the 1896 Rikuu (− 5.2 mm), the 1933 Sanriku (− 3.0 mm), and the 1964 Niigata (+ 3.0 mm) earthquakes. We also expect the 1894 Shonai earthquake might cause a 5 mm of postseismic contraction though the source fault model has a larger uncertainty. In total, the postseismic effects are expected to be contraction of several millimeters. Based on this consideration, we summarize two simple scenarios of the Shionohara baseline length change in Fig. 9. In both scenarios, we assume the original baseline length in July 1894 (5129.5872 m) and the one in August 2012 (5129.6526 m). In addition, steady interseismic shortening and stepwise coseismic offsets listed in Table 4 are included. Other effects such as postseismic transients or interseismic velocity change are not considered in these scenarios. Case 1 assumes the coseismic elongation of 50 mm (~ 10 ppm). In order to fit the baseline length in 2012, we need a slightly higher shortening ratio of − 0.15 ppm/year. On the other hand, if we assume a shortening ratio consistent with GPS observation (− 0.10 ppm/year), baseline change due to the 1894 Shonai earthquake reduces to about − 19 mm (− 3.7 ppm). From GPS observation, the interseismic shortening ratio can be as small as 0 based on GPS observation before 2011. However, if we assume no interseismic deformation, coseismic length change of the 1894 Shonai earthquake is estimated to be negative, which we consider unlikely. Considering a large degree of uncertainty about interseismic deformation rate and coseismic as well as other aseismic changes, we conclude that our observation of the Shionohara baseline in 2012 is consistent with our hypothesis that the baseline length was significantly changed by the 1894 Shonai earthquake. It should be also noted that the apparent baseline change between 1894 and 2012 is roughly attributed to the coseismic change of the 2011 earthquake. Thus, if we had compared the baseline length just before the 2011 with the 1894 result, we would have detected no significant change, which is consistent with the actual situation of no apparent E–W contraction over 100 years described in the introduction. However, as was demonstrated in the GPS observation before 2011, it is highly probable that the baseline was shortened over 117 years and the baseline length extrapolated backward to 1894 significantly exceeds the original value.

Table 4 Major earthquakes around the Shionohara baseline and calculated baseline changes
Fig. 9
figure 9

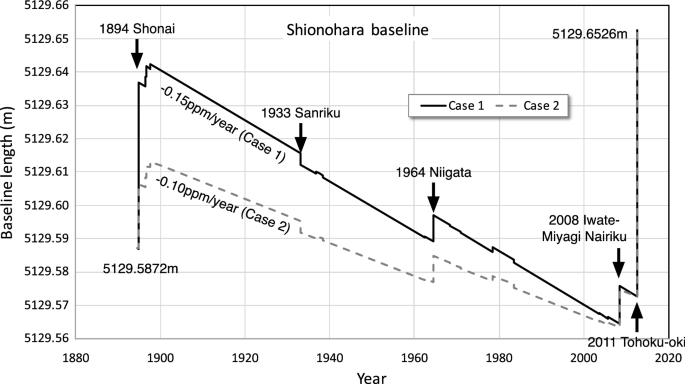

Two scenarios of length change history of the Shionohara baseline

Discussion

We first summarize our hypothesis about the Shionohara baseline and related consequences. The Shionohara baseline was measured during May–July 1894, and the value of 5129.5872 m was obtained with an expected precision of ~ 1 ppm. On October 22 of the same year, the Shonai earthquake happened and the baseline length was increased by about 10 ppm. However, the baseline was never re-surveyed after the earthquake and the original value was used for network adjustment. As a result, the triangulation network in northeast Japan was defined with a negative isotropic scale bias of 5–10 ppm, or the network was defined 5–10 ppm smaller than its actual size. After the first survey, tectonic plate motion and interplate coupling at the Japan trench accumulated E–W contraction roughly at 0.1 ppm/year as a regional average. After 100 years from the first survey, the cumulative contraction reaches about 10 ppm in E–W direction. In the comparison of triangulation data, the E–W contraction signal was not identified since the original network was defined smaller by almost the equal amount to the cumulative contraction during 100 years. Instead, the comparison of triangulation surveys revealed extensive N–S extension because the original network size was underestimated in N–S direction, too. This hypothesis explains why we did not identify geodetic signals showing tectonic strain accumulation in the Tohoku area.

The N–S extension in the Tohoku area was pointed out as early as in 1971 by Harada and Kassai (1971) who compared the re-survey of the triangulation network in the Showa era (1948–1968) with the original solution in the nineteenth century. By using Frank’s (1966) method, Sato (1973) and Nakane (1973a, b) evaluate shear strain rate of Japan Islands. They also estimated the maximum contraction in the Tohoku area was in the E–W direction, but this estimate was consistent with the N–S extension since the applied method could not resolve the dilatation. Later, Hashimoto (1990) and Ishikawa and Hashimoto (1999) estimated horizontal crustal strain rates using multiple survey results and reached a similar conclusion to Harada and Kassai (1971). Hashimoto and Jackson (1993) discussed interseismic deformation using angle change rate and concluded interseismic coupling at the Japan Trench was weak. Though there have been so many studies using triangulation data, no reasonable interpretation has been given about the observed N–S extension signal before. The observational error of the original triangulation in the nineteenth century was considered as large as 10 ppm based on the internal consistency of the network adjustment (Komaki 1985). But all the previous authors considered that the observation error was random and they did not consider a possibility of the scale bias as pointed out in this study. Hashimoto (1990) and Ishikawa and Hashimoto (1999) calculated strain rates from baseline length change rates using network adjustment results of all the available surveys. In the calculation of baseline length change rate, even with a large formal error, data from the first survey are highly influential since they are the only data in the first half of the analysis period.

The measurement of the Shionohara baseline finished in early July of 1894. However, according to the record, angle measurements of the first-order benchmarks continued until October of the same year. We speculate that the survey team should know that the Shonai earthquake occurred just after their survey. Only 3 years before the Shonai earthquake, there occurred the 1891 Nobi earthquake, which heavily affected the nearby triangulation network and the first recovery survey took place. Thus, there remains a question why a similar recovery survey was not conducted around the Shionohara baseline. While the town of Sakata to the west of the source fault was heavily damaged, almost no damage was reported in Shinjo close to the survey area (Omori 1895). Probably the survey team did not expect such a significant deformation to occur at the baseline.

Scale bias derived from the baseline length error is very extensive as is shown in Fig. 6, but it does not cause any inconsistency in the adjustment result. So, it is very difficult to recognize from the network adjustment. On the other hand, erroneous angle measurements can be easily identified through the network adjustment with large residuals. It is a fatal fault that we have overlooked the possibility of such a scale error. Since everybody knows that triangulation survey has a weakness in its scale, we should have investigated the unbiased observables such as angles or shear strains. Also, those who discuss seismic potential using geodetic data should understand how those data were obtained and what kind of errors could be contained.

In spite of such annoying data errors, conventional geodetic data such as triangulation and leveling still keep their scientific value. Our observation history with precise instruments such as GPS is still only 25–30 years long. Many geological phenomena such as earthquakes and volcanic eruptions are all unique, and we still lack of experience to make forecast or prediction on what happens in the future. In order to fully utilize the legacy of old observations, we should pay the most careful attention to data quality and various errors contained in the observation data.

On the other hand, it was nothing but an unfortunate coincidence that such a bias sneaked in the triangulation data. If the baseline had been constructed in a different place, if the baseline had been designed in the N–S direction, if the earthquake had occurred several months earlier, if the earthquake had been a little smaller or even larger, if one of us had been careful enough to investigate such a possibility, we could have avoided such an erroneous interpretation. This example provides a very important lesson that we can never be too careful in preparing for future natural hazard.

Conclusion

We revisited the original record of the Shionohara baseline survey conducted in 1894 and confirmed that the survey was conducted normally with a good precision. But we also found a possibility that the baseline length was significantly affected by the Shonai earthquake that occurred only 30 km to the west of the baseline. We numerically investigated a possible effect of the Shonai earthquake to the Shionohara baseline length and found that an earthquake with magnitude 6.9–7.0 could effectively elongate the baseline length as much as 5 cm or 10 ppm. Network adjustment calculations demonstrate that an error of 10 ppm at the Shionohara baseline causes significant as well as extensive scale bias in the strain calculation. A bias of 10 ppm was large enough to conceal tectonic strain accumulation over 100 years and to create apparent N–S extension signal over the entire Tohoku area. The re-survey of the Shionohara baseline was done in August 2012, after the 2011 Tohoku-oki earthquake. In spite of a large uncertainty in the interseismic deformation rate, the result is consistent with the hypothesis of the baseline scale bias. Thus, our understanding of no significant elastic strain accumulation in the Tohoku area before the 2011 Tohoku earthquake was caused by the isotropic scale bias of ~ 10 ppm in the original triangulation network adjustment result, for which coseismic deformation of the 1894 Shonai earthquake was responsible.
