Precise prediction of polar motion using sliding multilayer perceptron method combining singular spectrum analysis and autoregressive moving average model
Earth, Planets and Space volume 75, Article number: 179 (2023)
Abstract
The precise prediction of polar motion parameters is needed for the astrogeodynamics, navigation and positioning of the deep space probe. However, the current prediction methods are limited to predicting polar motion for specific periods, either short or longterm. In this study, a sliding multilayer perceptron (MLP) method combined singular spectrum analysis (SSA) and autoregressive moving average (ARMA) for short and longterm polar motion prediction was proposed. MLP was introduced into PM prediction due to its automatic learning characteristics and its ability to effectively process nonlinear and multidimensional data. The SSA was used to extract and predict the principal components of polar motion, while the remaining components were predicted using ARMA. In the meantime, SSA and ARMA were used to provide training data and target learning data for the MLP model. MLP input data were constructed by sliding processing with a window of 7 days, composed of n series of the same length (18 years). Finally, MLP was employed to predict the residuals generated during SSA and ARMA prediction. To evaluate the accuracy of the proposed method, the polar motion prediction was applied for a 364day lead time based on the IERS EOP 14C04 product. The method outperformed the IERS Bulletin A, as demonstrated by the meanabsolute errors of the x and y components of polar motion on the 30th day, which were lower (5.14 mas and 3.37 mas, respectively) than those predicted by IERS Bulletin A (6.66 mas and 3.94 mas). Similarly, the meanabsolute errors on the 364th day were 17.79 mas and 16.29 mas, respectively, compared to the 19.24 mas and 18.81 mas predicted by IERS Bulletin A.
Graphical Abstract
Introduction
Polar motion (PM) refers to the movement of the Earth’s rotation axis on its surface (Jin et al. (2021a); Wu et al. 2021; Zhu 1982; Lambeck 1980). The accuracy of realtime PM parameters is crucial for highprecision satellite navigation and positioning systems and spacecraft tracking (Stamatakos 2017). To obtain precise PM parameters, various technologies such as Global Navigation Satellite System (GNSS), Satellite Laser Ranging (SLR), Very Long Baseline Interferometry (VLBI), Doppler Orbitography and Radiopositioning Integrated by Satellite (DORIS) can be employed (Dill and Dobslaw 2010). However, in satellite navigation technology, interruption the communication link between the satellite and ground are common, necessitating the conversion between reference frames using earth orientation parameters (EOP). This emphasizes the importance of accurately predicting PM and obtaining realtime PM parameters (Gambis and Luzum 2011; Wang et al. 2017).
Polar motion parameters are playing an increasingly crucial role in the field of space science. The rapid development of celestial dynamics has led to increasingly high requirements for the accuracy of polar motion parameters, and the accuracy of polar motion prediction directly affects the accuracy of satellite orbit determination. Due to the complexity of polar motion data processing, obtaining realtime polar motion parameters is not feasible and they can only be obtained through highprecision prediction methods (Su et al. 2014; Shen et al. 2018). The excitation source of polar motion is relatively complex, which also requires high accuracy of prediction methods. At the same time, different prediction methods exhibit varying levels of skill across different PM prediction time scales, and establishing relatively stable PM prediction methods is a challenge in the current PM prediction process.
Various methods were proposed and utilized, such as least squares (LS) (Kosek et al. 2007; Yao et al. 2013; Wu et al. 2018; Akulenko et al. 2002), singular spectrum analysis (SSA) (Shen et al. 2017; Jin et al. (2021b)), autoregressive model (AR) (Schuh et al. 2002), wavelet analysis (Zhao and Lei 2019), copulabased analysis (Modiri et al. 2018), and artificial neural networks (ANN) (Liao et al. 2012). LS and AR exhibit satisfactory performance in shortterm PM prediction. However, the presence of redundant data and inappropriate orders can result in overfitting, thereby significantly diminishing their efficacy in midlongterm PM prediction. Therefore, both LS and AR are not suitable for mid to longterm PM prediction alone. Wavelet analysis proves effective in segregating high and low frequency components within PM series. As a result, it is commonly employed in conjunction with other models to enhance the accuracy of mid to longterm PM prediction. Although existing prediction methods majority provide good ultra shortterm (< 10 days), shortterm (< 30 days) prediction results, they do not perform satisfactorily enough for longterm predictions (Sun et al. 2019). There are many PM prediction methods performing better in the short term or only in the midlong term.
To overcome the limitations and instability of existing prediction methods, IERS organized the Earth Orientation Parameters Combination of Prediction Pilot Project (EOPC PPP) in July 2010. The LS + AR prediction method officially recognized by IERS, has high accuracy in shortterm forecasting but substantial error accumulation with increasing predicted time (Kosek et al. 2011). The LS + AR method also has a high requirement on data quality, affecting the midlongterm PM prediction accuracy to a certain extent (Su et al. 2014; Guo and Han 2009).
SSA has been successfully applied in various fields, including geophysics, meteorology, and oceanography, to extract and reconstruct signals with different periods from the original signal and predict their principal components (Kong et al. 2020; Marques et al. 2006; Briganti and Beltrami 2008; Vautard and Ghil 1989). However, the use of SSA alone for polar motion prediction can result in distortion at the end of the fitted series (end effect) and overfitted. By combining SSA with other models, the overall PM predicted accuracy can be improved (Zhang et al. 2011; Zotov 2010; Heng and Suetsugi 2013). Shen et al. (2018) combined the SSA and ARMA model, demonstrating the applicability of this method, and improved the end effects and overfitting problems. But its shortterm prediction accuracy needs improvement. Furthermore, the MLP model with its nonlinearmapping and selfaccommodating characteristics (Zhang 2003; Singh 2018), has been used to predict in several fields, including medicine, meteorology, economics, and geology (Choi et al. 2019). Polar motion is influenced by various excitation sources, which have a significant impact on the accuracy of longterm polar motion prediction. And although the PM series was fitted by SSA + ARMA, there still are complex residual changes. As a nonlinear neural network model, MLP has the processing ability to dispose complex characteristic of PM time series and improve the accuracy of PM prediction. Therefore, using MLP as a nonlinear model for predicting polar motion is theoretically appropriate.
This study proposed a new sliding method for predicting PM by combining the SSA + ARMA model with the MLP model. This method takes the characteristics of the PM series into consideration, mainly including the periodic characteristics of PM series and the ‘nonlinearity’ of PM series caused by complex excitation sources. The meaning of ‘nonlinear’ is that the polar motion series is not a linear combination of signals due to its complex excitation. It is obvious that this excitation caused the complexity of polar motion prediction. By decomposing and reconstructing the PM time series using the SSA + ARMA model, the obtained data are input into the MLP model. This integration of deep learning techniques enables the leveraging of their inherent advantages to improve the accuracy and stability of PM prediction. The sliding SSA + ARMA + MLP method proposed in this study has achieved pretty prediction accuracy in ultrashort term, short term, and midlong term (364 days).
Methodology
Data
The PM time series from January 11, 1987, to December 26, 2019, was analyzed and used to predict PM from January 5, 2017, to December 26, 2019 by utilizing the sliding SSA + ARMA + MLP model. The original time series (PMX, PMY) covering the period of 1982 to 2019 is shown in Fig. 1. The PM data used in this study were sourced from the IERS 14 C04 product (https://www.iers.org/IERS/EN/DataProducts/EarthOrientationData/eop.html), which provides EOP data, since 1962 with a sampling interval of 1 day (Bizouard et al. 2019). The IERS also publishes fast products and data to meet engineering application criteria. Bulletin A is a prediction file regularly issued by the IERS Fast Service and Forecast Center of the U.S. Naval Observatory (USNO). Bulletin A provides the prediction of polar motion parameters for the last week and the next year, with a sampling interval of 1 day and updated once a week, with products delayed by one week upon release.
Overview of the SSA + ARMA + MLP
As shown in Fig. 2, SSA and ARMA were used to provide training data for the MLP model while predicting PM. MLP training data were constructed by sliding with a window of 7 days, composed of n rows of the same length. The nth series was obtained by sliding the (n1)th series backward for 7 days, as outlined in Sect. "Prediction of MLP". PM time series were predicted using SSA, with the remaining components (RC) and SSA predictions obtained. The difference between observations and SSA predictions was used to derive the SSA predicting residuals. ARMA was then used to predict the RCs, providing ARMA modeling residuals and predictions. The difference between SSA predicting residuals and ARMA predictions was used to obtain ARMA predicting residuals, with ARMA modeling residuals serving as the training data Q, and ARMA predicting residuals as the target learning data T. The input data for MLP comprised the ARMA modeling and predicting residuals.
The PM prediction process comprised three main parts. Firstly, the principal components (PCs) were predicted using sliding SSA. To better compare Bulletin A and construct the MLP input data, the sliding window was set to 7 days. After SSA completed one prediction, it slid back 7 days to complete the next prediction. The predicted part was considered as the missing part, and the PCs were repeatedly filled iteratively after filling the PM data to obtain the SSA predictions and PM residuals. In the second part, the residual components (RCs) were predicted using the ARMA model, which obtained the ARMA predictions. Lastly, the MLP model was used to predict the ARMA modeling residuals. After training, the MLP model completed a 364day PM prediction. Finally, the PM predictions were derived by adding the predicted PCs from the SSA model, the predicted RCs from the ARMA model, and the predicted ARMA residuals from the MLP model.
Prediction of SSA
Singular spectrum analysis constructs a onedimensional nonlinear time series into a multidimensional trajectory matrix, which can be further decomposed and reconstructed to extract various signals (Elsner and Tsonis 1996). For the PM time series, SSA can be used to decompose different signals, such as longterm trends, periodic terms, or noise, which can reconstruct the original time series in PM prediction.
As one of the critical parameters in SSA time series analysis, the window size affects the results. A reasonable window size setting can better separate the PCs of the time series, and an appropriate window size should be a multiple of the PC period. For longterm PM time series, the days of Chandler wobble and annual oscillation period were both considered in the window size M, which was set to 2190 (Zotov 2010). After SSA decomposed and reconstructed the time series, the original PM time series could be replaced by the superposition of the first j reconstructed components. The size of j needs to be determined by SSA analysis. In Sect. "Singular spectrum analysis of PM time series analysis", the determination process of the j value is introduced in detail.
The analysis of filling the PM time series and repeating iterations during the SSA prediction period was based on previous publications (Shen et al. 2018; Schoelhamer 2001). In this study, the following are the main steps:

(1)
The original PM time series length was set to \(N = 6570\), the PM prediction data length was set to \(u = 364\) and a new PM time series \((N + u)\) was constructed by adding \(n\) zeros at the end of the original PM time series, where \(u\) is the number of zeros.

(2)
SSA decomposed the new PM time series \((N + u)\). The last n values of the new PM time series were replaced those at the end of the first PC (PC1), and this process was repeated until PC1 converged.

(3)
After the first cycle, a second PC (PC2) was added to reconstruct the prediction data. PC1 and PC2 were superimposed to obtain the prediction data. Step (2) was repeated until the PC1 + PC2 series converged.

(4)
The above process was repeated iteratively until the j PC series complete the numerical replacement. Finally, the u values at the end of the new PM time series were the j PC predictions of the PM time series.
Prediction of ARMA
After obtaining the RC through SSA prediction, they still contained various other stationary periods or noises. Therefore, the RCs were further modeled and predicted using the ARMA. According to the principles of multiple regression, the ARMA model used in this study can be expressed as:
where \(\beta_{{\text{i}}} (i = 1,2, \ldots ,p)\) and \(\theta_{i} (i = 1,2, \ldots ,q)\) represent the autoregressive (AR) and moving average (MA) coefficients, respectively, and \(\alpha_{N}\) is white noise. To determine the appropriate orders of \(p\) and \(q\) for the model, the extended autocorrelation function (EACF) analysis was selected in this study. Based on the EACF analysis, the ARMA (2, 1) model was suitable for PM prediction, where \(p = 2\) and \(q = 1\).
Prediction of MLP
After ARMA completed the RC prediction and output the residuals, the MLP model used the ARMA residuals as the training data. Considering the complex characteristics of the PM time series, the MLP model leveraged its deep learning capability to enhance overall PM prediction accuracy. MLP is a typical feedforward artificial neural network, where each neuron is only connected to the previous layer of neurons, making is well suited for classifying extensive data and establishing complex problems (Pal and Mitra 1992). By selecting a limited number of input and output variables, the MLP model can effectively simulate the relationship between the input and output data, thereby facilitating the establishment of a prediction method based on the MLP model (Kuremoto et al. 2014). Given that the PM prediction method employed in this study entails mapping multiple input variables to output variables, the MLP model is utilized.
As depicted in Fig. 3, the MLP model represents a network comprising densely connected information processing nodes, known as neurons. Neurons serve as the fundamental units constituting neural networks, functioning as mathematical models that emulate biological neurons for information processing and transmission purposes. The MLP model encompasses an input layer, one or more hidden layers, and an output layer (Ghasemloo et al. 2022). The input layer serves as the neuron responsible for data input, with its number aligning with the count of data variables. The hidden layers and output layer consist of neurons and output variables, respectively. Adjacent layers are fully interconnected, while neurons within the same layer remain unconnected.
The MLP model consists of three basic elements: weights, biases, and activation functions. The training process consists of two steps: from input to hidden layers and from hidden to output layers. From input to hidden layers, \(I = h(W_{1} x + r_{1} )\), where I is the output vector of the hidden layer, h is the activation function, W_{1} is the weight, x is the input vector, and r_{1} is the bias. From hidden to output layers, \(O = g(W_{2} y + r_{2} )\), where O is the output vector of the output layer, g is the activation function, W_{2} is the weight, y is the input vector, and r_{2} is the bias.
The MLP accomplishes the mapping from input to output by processing and transmitting information via neurons. The core of MLP learning lies in the iterative adjustment of the activation function and bias, achieved through information transmission and error backpropagation within the network. This iterative process aims to minimize the discrepancy between the desired output of the MLP and the actual output.
Lippmann (1988) proved that a two hiddenlayer neural network can generate arbitrarily complex decision regions and approximate continuous nonlinear functions with any precision. In this study, considering the number of input neurons, three hidden layers were set to achieve a better training effect.
The ARMA residuals were used as the training data and target learning data by sliding, respectively. The MLP model was trained and used to predict PM using the following steps:

(1)
Network initialization involved weight and bias initialization to determine the activation function simultaneously. The window size of \(L = 6570\) was set to the length of the 18year historical data, which is the length of the training data, and the target step size \(N = 364\) was set to the size of the prediction period.

(2)
For data normalization, selecting the maximum and minimum values of the PM series in the PMX and PMY, respectively. Then, min–max normalization was used to normalize the PMX and PMY of the MLP model training dataset. \(x\) was mapped to \(x^{\prime}\):
$$x^{\prime} = (x  x_{\min } )/x_{\max }  x_{\min } .$$(2)
(3)
To construct the training data Q by sliding, the ARMA modeling residuals were utilized, taking into account the training window size L and the prediction period size N. The normalized data were also incorporated, the training data Q are expressed as:
$${\mathbf{Q}} = \left( {\begin{array}{*{20}c} {x_{1,1} } & \ldots & {x_{1,L} } \\ \vdots & \ddots & \vdots \\ {x_{n,1} } & \cdots & {x_{n,L} } \\ \end{array} } \right)$$(3)The target learning data T were generated based on the ARMA predicting residuals and can be expressed as:
$${\mathbf{T}} = \left( {\begin{array}{*{20}c} {y_{1,1} } & \ldots & {y_{1,N} } \\ \vdots & \ddots & \vdots \\ {y_{{{\text{n}},1}} } & \cdots & {y_{n,N} } \\ \end{array} } \right),$$(4)where, \(x_{1} = \left\{ {\begin{array}{*{20}c} {\begin{array}{*{20}c} {x_{1,1} } & {x_{1,2} } & {x_{1,3} } \\ \end{array} } & {\begin{array}{*{20}c} \cdots & {x_{1,L} } \\ \end{array} } \\ \end{array} } \right\}\) is the ARMA modeling residuals between January 11, 1987 and January 6, 2005, the data length is L, and \(x_{2} = \left\{ {\begin{array}{*{20}c} {\begin{array}{*{20}c} {x_{2,1} } & {x_{2,2} } & {x_{2,3} } \\ \end{array} } & {\begin{array}{*{20}c} \cdots & {x_{2,L} } \\ \end{array} } \\ \end{array} } \right\}\) is the ARMA modeling residuals obtained by sliding \(x_{1}\) backward for 7 days. The sliding window was maintained as remains 7 days, the data length L remained unchanged, and \(x_{n} = \left\{ {\begin{array}{*{20}c} {\begin{array}{*{20}c} {x_{n,1} } & {x_{n,2} } & {x_{n,3} } \\ \end{array} } & {\begin{array}{*{20}c} \cdots & {x_{n,L} } \\ \end{array} } \\ \end{array} } \right\}\) is the ARMA modeling residuals sliding to the predicted start time (PST). \(y_{1} = \left\{ {\begin{array}{*{20}c} {\begin{array}{*{20}c} {y_{1,1} } & {y_{1,2} } & {y_{1,3} } \\ \end{array} } & {\begin{array}{*{20}c} \cdots & {y_{1,N} } \\ \end{array} } \\ \end{array} } \right\}\) is the ARMA predicting residuals corresponding to ARMA modeling residuals \(x_{1}\) and the data length is N. \(y_{2} = \left\{ {\begin{array}{*{20}c} {\begin{array}{*{20}c} {y_{2,1} } & {y_{2,2} } & {y_{2,3} } \\ \end{array} } & {\begin{array}{*{20}c} \cdots & {y_{2,N} } \\ \end{array} } \\ \end{array} } \right\}\) is the ARMA predicting residuals corresponding to \(x_{2}\) and \(y_{n} = \left\{ {\begin{array}{*{20}c} {\begin{array}{*{20}c} {y_{n,1} } & {y_{n,2} } & {y_{n,3} } \\ \end{array} } & {\begin{array}{*{20}c} \cdots & {y_{n,N} } \\ \end{array} } \\ \end{array} } \right\}\) corresponds to \(x_{n}\) ARMA predicting residuals.

(4)
The MLP model was established and trained. The window size L for the longterm PM series was set to 6570, which considered the Chandler wobble and the annual oscillations. During the PM prediction with a period of 364 days, the number of neurons was 6570, 128, 64, 32, and 364 in sequence. Figure 3 shows the structure of the MLP model.

(5)
Using the trained MLP model for prediction, the ARMA modeling residuals were used as the input data, and the prediction was \(y_{n + 1} = \left\{ {\begin{array}{*{20}c} {\begin{array}{*{20}c} {y_{n + 1,1} } & {y_{n + 1,2} } & {y_{n + 1,3} } \\ \end{array} } & {\begin{array}{*{20}c} \cdots & {y_{n + 1,N} } \\ \end{array} } \\ \end{array} } \right\}\). The denormalized formula is:
$$y^{\prime}_{n + 1} = y_{n + 1} (x_{\max }  x_{\min } ) + x_{\min } .$$(5)
(6)
The iterative prediction process was repeated 20 times, and the final MLP predictions were obtained by taking the average value, which is a common practice to reduce the effects of random fluctuations and obtain more stable and reliable results.
Results and discussion
Singular spectrum analysis of PM time series analysis
SSA is a method for identifying and analyzing signals based on their time and frequency domain characteristics (Ghil et al. 2002). To determine the principal components of the PM series, the PM time series from January 11, 1987, to December 26, 2019, was analyzed by SSA. As described in the prediction of SSA, considering the Chandler wobble and annual wobble periods, the window size L generally needed to meet \(1<L<N/2\) (N is the length of the data), L was set to 2190.

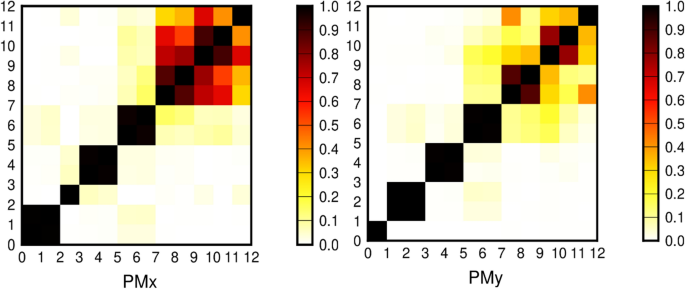

The correlation between the PM time series was analyzed using the Wcorrelation method (Hassani 2007). Different signals with greater correlation can be divided into a group by SSA, and PCj is the jth PC obtained by SSA. To determine the optimal value of j, the variance contribution rate of PM is shown in Fig. 4, while Fig. 5 displays the results of the Wcorrelation analysis of the PM time series.
As illustrated in Figs. 4 and 5, in the PMX, the variance contribution rates of PC1 and PC2 were relatively large, at 38.80% and 37.51%, respectively. PC3 had a variance contribution rate of 7.83%, and those of PC4 and PC5 were 7.34% and 7.27%, relatively. All other PCs had low variance contribution rates, which decreased with increasing order. For the PMY, PC1 had the largest variance contribution rate, reaching 85.54%, while PC2, PC3, PC4, and PC5 contributed 6.16%, 6.11%, 0.99%, and 0.96%, respectively. Figure 5 demonstrates strong independence among the first seven PCs, the first seven PCs account for 99.42% and 99.88% of the total variance contribution rates in both the X and Y directions of PM. Therefore, the first seven PCs of PMX and PMY were able to more accurately represent the original PM time series.
Figure 6 shows the PM components decomposed by SSA. For PMX, the Chandler wobble, the annual term, and a periodic term of approximately 489 days were three relatively prominent periodic components for PMX, corresponding to PC1 and PC2, PC4 and PC5, and PC6 and PC7, respectively. PC3 represented the trend term, while other components were not well separated due to their small correlation and were considered residual terms. For the Y direction of the PM series, PC2 and PC3 represented the Chandler wobble, PC4 and PC5 represented the annual term, and PC6 and PC7 represented the periodic term of approximately 489 days. The trend term was represented by PC1.
Prediction of PM
This study was based on historical data. The fundamental data used for the prediction were the historical observations from January 11, 1987, a period of 18 years before PST. The basic time series was updated with each prediction, and the historical length of 18 years remained unchanged. For each year, 52 time series were selected, and a total of 156 time series were selected for PM prediction. The PM prediction was compared to that of the IERS EOP 14 C04 product. In addition, the mean absolute error (MAE) was selected as the evaluation standard (Kalarus et al. 2010):
where \(P_{i}\) is the predicted value corresponding to period i, \(O_{i}\) is the observed value corresponding to period i, and t is the prediction length.
Bulletin A (https://datacenter.iers.org/eop//somos/5Rgv/%20getTX/6) releases a PM prediction series once a week, with approximately 52 PM prediction series per year. To enable better comparison with Bulletin A, a sequence of 52 PM series was selected each year, resulting in a total of 156 PM time series analyzed in this study. The accuracy of PM prediction was compared with Bulletin A, which was released by IERS. Figure 7 shows a comparison of MAE (364day lead prediction), and Table 1 lists the relevant statistics. The reliability of the prediction method proposed in this study is illustrated in Fig. 7 and Table 1, with the Bulletin A solution represented in blue, the SSApredicted data in orange, the combined results of SSA + ARMA in green, and the combined results of SSA + ARMA + MLP in red.
Based on the results presented in Fig. 7, it can be observed that the proposed method outperformed Bulletin A predictions for the PM prediction period. Specifically, for PMX, our method exhibited higher accuracy than Bulletin A for days 1–57 and 99–364. Furthermore, for the 364daylead prediction, the MAE of the SSA + ARMA + MLP model for the first 312day predictions was superior to that of the SSA + ARMA model. Similarly, for PMY, the MAE of SSA + ARMA + MLP was significantly smaller than that of Bulletin A for days 1–37 and 127–364. Additionally, the SSA + ARMA + MLP model achieved better predictions than the SSA + ARMA model for days 1–70 and 106–301. The MAE for the first 30daylead prediction were separately compared, and the results presented in Fig. 8 showed that our method outperformed Bulletin A predictions in terms of MAE for both PMX and PMY, with MAE ranging from 0.23 mas to 5.14 mas and 0.22 mas to 3.37 mas, respectively.
The MAE values are shown in Table 1. The MAEs of SSA + ARMA + MLP in the 30day, 180day, and 360day predictions for PMX were 5.14mas, 14.37mas and 17.76mas, respectively, which are lower than the 6.66 mas, 17.08 mas, and 19.37 mas obtained for the Bulletin A predictions. For PMY, the MAEs from SSA + ARMA + MLP in the 30day, 180day, and 360day were 3.37mas, 15.38mas, and 15.94mas, respectively, lower than those of Bulletin A (3.94mas, 21.56mas, and 18.88mas).
Because the SSA model can effectively extract the Chandler and annual wobbles of the PM series, it has an advantage in reconstructing and predicting the PC. At the same time, the ARMA model in predicting the stationary RC of the PM series after removing the trend and periodic terms were leveraged in this study. Additionally, the MLP model combined with the SSA + ARMA model enhanced the overall adaptability of the prediction model, leading to improved precision of midlongterm PM prediction. However, it should be noted that the MAE predicted by our proposed method for days 38–126 was still greater than that of Bulletin A, particularly for PMY. The complex variation in highfrequency signals during this period may have been the cause, which needs further investigation.
The prediction and accuracy of the SSA + ARMA + MLP model in this study are compared with Shen et al (2018), and the results are shown in Table 2. As depicted in Table 2, in the Y direction, the prediction accuracy of the SSA + ARMA + MLP model surpasses that of the SSA + ARMA model (Shen et al. 2018) on the 30th and 360th days of the prediction period. Similarly, in the X direction, this study achieves significantly superior results compared to the SSA + ARMA model (Shen et al. 2018) on the 180th and 360th days of the prediction period.
Figure 9 clearly shows the improvement analysis of SSA + ARMA + MLP model. Yellow color indicates improvement, the MAE of SSA + ARMA + MLP is lower than that of Bulletin A. Green color indicates failure, the prediction accuracy of SSA + ARMA + MLP is higher than that of Bulletin A. SSA + ARMA + MLP improved the accuracy of shortterm, midterm and longterm polar motion prediction.
Figure 10 displays the distribution of absolute errors for the entire 364day period. The results showed that for the SSA + ARMA + MLP model, the percentage of absolute errors for PMX and PMY that were smaller than 30 mas were 89.71% and 89.55%, respectively, which are higher than the corresponding values for Bulletin A of 85.59% and 81.51%. These findings indicate that the SSA + ARMA + MLP model can significantly reduce the overall range of PM prediction errors, and the incorporation of the MLP model can further enhance the precision of PM prediction.
Conclusion
In this study, we analyzed the PM time series using SSA and demonstrated that it can effectively separate and extract the principal components of PM. Subsequently, we incorporated ARMA into the SSA to mitigate overfitting and the end effects. Considering the ‘nonlinear’ characteristics of PM time series, which are caused by complex excitation source, and processing complex SSA + ARMA predicting residuals, we further introduced MLP into the SSA + ARMA model. By leveraging the nonlinear processing capabilities and deep learning techniques offered by MLP, we aimed to enhance the accuracy of midlong term PM prediction. Summary, we considered that different predicting method have different predicting skills on different time scales, and then we proposed the sliding SSA + ARMA + MLP model for short and longterm PM prediction and conducted 156 experiments to compare the performance of our method with that of Bulletin A. Our results show that the SSA + ARMA + MLP model outperforms Bulletin A in the 30daylead and 364daylead prediction, achieving better accuracy on days 1–57 and 99–364 for PMX and days 1–37 and 127–364 for PMY, with smaller MAEs compared to Bulletin A. This improvement can be attributed to the introduction of the MLP model, whether compared with the SSA + ARMA model proposed by other scholars or the SSA + ARMA model in this study, the introduction of MLP has improved the shortterm and longterm accuracy of pole shift prediction, which enhances the overall accuracy of PM prediction. Overall, our proposed method takes the advantages of SSA, ARMA and MLP models, exhibiting high reliability and accuracy and is well suited for the prediction of PM in both short and longterm period.
Availability of data and materials
The polar motion data are available at https://www.iers.org/IERS/EN/DataProducts/EarthOrientationData/eop.html.
