Numerical forecast of the upper atmosphere and ionosphere using GAIA

Abstract

Upper atmospheric conditions are crucial for the safe operation of spacecraft orbiting near Earth and for communication and positioning systems using radio signals. To understand and predict the upper atmospheric conditions, which include complex variations affected by both low altitude and upper surrounding environments, we have developed a quasi-real-time and forecast simulations using a physical global model, the Ground-to-topside model of Atmosphere and Ionosphere for Aeronomy (GAIA). The GAIA simulation system provides a global distribution of ionospheric total electron content (TEC) with background atmospheric and electric distributions including a few-days prediction. The prediction accuracy for the detection of significant ionospheric storms decreases with increasing lead time, i.e., the duration of the model simulation which is not constrained by realistic input parameters. Similar characteristic variations associated with sudden stratospheric warmings (SSWs) are reproduced with the full or limited input of meteorological data at least the prior 3 days. This is a first step toward the usage of GAIA for space weather forecasting.

Introduction

The upper atmosphere shows irregular variations in addition to regular daily, seasonal, and regional variations. These variations are results of the combination of (i) disturbances propagated from low atmospheres; (ii) interaction between the neutral and ionized atmosphere, i.e., ionosphere; (iii) energy input from the magnetosphere above, and (iv) radiation from the Sun. The effect of the upper atmospheric disturbance on today’s society, which relies on highly advanced information techniques, has been increasing; for example, ionospheric disturbances affect the radio signals used for communication and positioning systems, and thermospheric density variation can affect operation of artificial satellites orbiting near Earth and space debris, the latter may damage satellites. “Space weather” of the upper atmosphere should cover not only the disturbances related to solar storms, but also the disturbances that are sometimes independent of solar storms, such as (i) and part of (ii) above.

Ionosphere and thermosphere models are expected to be essential tools for estimating and forecasting these upper atmospheric disturbances. There are both empirical and physical modeling approaches. The empirical models provide specific parameter/regions with high prediction accuracy. For example, neural networks are widely used for the prediction of the ionospheric variations (e.g., Nakamura et al. 2007; Sai Gowtam and Tulasi Ram 2017; Srivani et al. 2019).

Physical models are also applied to space weather forecasting. The Coupled Thermosphere Ionosphere Plasmasphere electrodynamics (CTIPe) model (Codrescu et al. 2012) provides results from real-time and 1-h forecasts run at their website (https://www.swpc.noaa.gov/products/ctipe-total-electron-content-forecast). Fernandez-Gomez et al. (2019) reported the difference between the real-time and research simulations using the CTIPe model. By necessity, they used different solar wind inputs to the real-time and research simulations. For the real-time simulation, they used real-time solar wind observation data provided by the Advanced Composition Explorer (ACE) spacecraft. For the research simulation, they used OMNI post-processed data. Both neutral density and total electron content (TEC) from the operational simulation are underestimated compared with those from the research simulation and actual observation during a magnetospheric storm event on November 20, 2003. They found that the discrepancy in the ionospheric parameter is more significant relative to the thermospheric parameter. The Whole Atmosphere Community Climate Model with thermosphere and ionosphere extension (WACCM-X) (e.g., Liu et al. 2018) is another global whole atmosphere and ionosphere model. Real-time parameters from WACCM, the atmosphere part of the WACCM-X, are provided in their website (https://www2.acom.ucar.edu/acresp/forecasts-and-near-real-time-nrt-products).

The empirical modeling approaches usually provide better prediction accuracy. On the other hand, the physical modeling approach is useful for its ability to predict various parameters including physical processes and sufficient spatial and temporal coverage/resolution beyond the observational limitation. In addition, approaches using different physical models would provide opportunities to test various model settings and behaviors.

The purpose of this study is to apply the other physical model, namely, Ground-to-topside model of Atmosphere and Ionosphere for Aeronomy (GAIA), for quasi-real-time and forecast uses. There are several target phenomena: (i) ionospheric storms; (ii) ionospheric disturbances during sudden stratospheric warmings (SSWs) (Jin et al. 2012); (iii) sporadic-E layers (Shinagawa et al. 2017), and (iv) plasma bubbles (Shinagawa et al. 2018). The performance of GAIA for phenomena (ii–iv) using GAIA research simulation was examined in those previous studies. The most challenging points in the application to real-time and forecast uses is achieving sufficient prediction accuracy under the limitation of input data. How much accuracy could be achieved in such a situation is an important question. In addition to the magnetospheric potential driven by the solar wind investigated by Fernandez-Gomez et al. (2019), the upper atmosphere is also affected by inputs from the low-altitude region. Here, we mainly focus on the effect of the low-altitude data limitation on the prediction accuracy of the upper atmosphere. In this paper, we target the (i) ionospheric storms in Japan and (ii) appearance of SSW events. Application to (iii) sporadic-E layers is investigated and reported by Shinagawa et al. (this issue). One of the objectives of these GAIA real-time and forecast simulations is to contribute to space weather forecasting carried out by the National Institute of Information and Communications Technology (NICT). This is the first system that provides a numerical forecast of the ionosphere/thermosphere with a few days of lead time.

In “Model and real-time procedure” section, we introduce GAIA and model settings for the real-time and few-days forecasting runs. Applications for the ionospheric storm events and SSW events are reported in “Target 1: ionospheric storms” and “Target 2: sudden stratospheric warming” sections, respectively, followed by the “Summary and future works” section.

Model and real-time procedure

Here, firstly we briefly introduce GAIA (e.g., Jin et al. 2011). Then we describe specific settings for the quasi-real-time and forecast run.

GAIA

GAIA consists of three parts: a whole atmospheric general circulation model (GCM) part, an ionospheric part, and an electrodynamics part. These parts exchange physical parameters (Fig. 1 of Jin et al. (2011)). We use a GCM version with a resolution of 2.8° in longitude and latitude and a vertical resolution of 0.2 scale height. The GCM provides neutral atmospheric parameters such as wind velocity and temperature information from the nonlinear primitive equations for continuity, momentum, and thermodynamics including photo-chemical processes (O2 and O) in the thermosphere and important physical processes from the troposphere, stratosphere, mesosphere, and up to the thermosphere (e.g., Miyoshi and Fujiwara 2003). The ionospheric part provides the main ion compositions (N2+, O2+, O+, and NO+), ion dynamics, and ion and electron temperatures, by solving equations of mass, momentum, and energy with 2.5° (longitude), 1° (latitude), and 10–100 km (altitude) resolution (e.g., Shinagawa 2009). By using the GCM neutral wind velocity and ionospheric conductivity information, the electrodynamics part estimates electric potential from a potential solver with 2.8° (longitude) and 0.2–0.6° (latitude) resolution at 75 km height (Jin et al. 2011).

The current version of GAIA includes variations of the solar extreme ultraviolet (EUV) emission and meteorological forcing. The variation of the solar EUV emission is treated by referring to a solar EUV flux model for aeronomic calculation (EUVAC) (Richards et al. 1994) as a function of the solar radio flux at 10.7 cm, i.e., the F10.7 index. Realistic meteorological forcing is included by assimilating the meteorological reanalysis data set, the Japanese 55-year Reanalysis (JRA-55), provided by the Japan Meteorological Agency (Kobayashi et al. 2015; Harada et al. 2016) at low altitude (< ~ 40 km) in the GAIA GCM part.

For external forcing from the magnetosphere, this GAIA version assumes a quiet convection electric field with a cross polar cap potential of 30 kV and weak auroral precipitation, as described in, e.g., Fujiwara and Miyoshi (2010), without variation. Therefore, this simulation does not contain the ionospheric and atmospheric responses to the solar wind and magnetospheric variations. The inclusion of these variations is one of the important future works.

Procedure for real-time and forecast simulations

Figure 1 shows a timeline of GAIA quasi-real-time and forecast simulations. JRA data of the prior 2 days is uploaded by the Japan Meteorological Agency at universal time (UT) ~ 6:10 every day. We run GAIA for the prior 2 days assimilating JRA data for 24 h using outputs of the similar run of the previous day as the initial condition. This simulation setting is called “WJRA” (with JRA) hereafter. Then, we run GAIA without JRA data assimilation for 4 days to cover the forecast information; this setting is called the “WOJRA-1/2/3/4” setting for the 1st-/2nd-/3rd-/4th-day simulation without JRA, respectively. WOJRA simulations are necessitated by input latency and the desire for long lead-time prediction of a few days. GAIA itself includes meteorological processes in the troposphere. It takes ~ 3 h for this 5-day simulation sequence using the current supercomputer facility at NICT. The space weather forecast briefing at NICT is held daily at UT 5:30 (local time (LT) 14:30) for now (June 2020) to provide the space weather forecast within 24 h. WOJRA-3 and WOJRA-4 settings cover these periods. This GAIA run refers to the F10.7 index at UT 20:00 provided by Natural Resources Canada up to one day prior. The latest F10.7 value at one day prior is also input for WOJRA-2/3/4 simulations, i.e., constant solar EUV input over the WOJRA runs, for simplicity. This simulation sequence is iteratively operated from June 2019.

Fig. 1
figure1

Schematics representing the timeline of GAIA quasi-realtime and forecast simulations. GAIA run on each day consists of 1-day simulation (blue thick arrow) including the meteorological data JRA and 4-day simulation without JRA input (light blue thick arrow). The WJRA calculation on the current day (middle ribbon) uses the final condition of the WJRA (with JRA) calculation on 1-day prior (top ribbon) as an initial condition. SWx denotes space weather, and UT denotes universal time. The simulation launch time following a data download is shown by filled stars. See details in the text

Both the meteorological and solar EUV information are limited for the simulation: the former is included until 2 days prior and the latter until one day prior. Usage of meteorological forecast data instead of the reanalysis data, which are not publicly open, is future work (“Summary and future works” section). Since model accuracy becomes worse with longer lead time for the prediction, how the accuracy behaves with lead time is an important information for both operational and scientific viewpoints. We investigate this for the ionospheric storm and SSW events in the following sections. Note that the ionospheric storms provided by this GAIA system do not originate from the magnetosphere. Some large ionospheric storms are associated with the magnetospheric storms, while a certain amount of them occur during magnetospheric low activity time.

Target 1: ionospheric storms

Figure 2 shows the F10.7 (input) and TEC (output) variations derived from the GAIA simulation run on January 6, 2020, example of an ionospheric storm. The F10.7 value was ~ 72 × 10−22 Wm−2 Hz−1 during the interval (Fig. 2a). Figure 2b shows the variation of TEC averaged over 35–39° latitude and 125–147° longitude, for 5 days from January 4 to January 8. The TECs obtained under the WJRA setting (red line) and WOJRA settings (orange line) show a diurnal variation with enhancements during the local daytime. We refer to a 27-day median at the same local time as a reference profile. Compared with this reference profile (black line in Fig. 2b), several deviations are apparent, the largest one occurring in early 8 January. The grey hatches correspond to a scale indicating a significance of the deviation of the TEC profile from the reference profile. We measure the significance and detect ionospheric storms using the “I-scale” index (Nishioka et al. 2017) derived for GAIA (see Appendix). The shade of grey represents the deviation normalized by a standard deviation derived using long-term (1996–2016) simulation outputs. The significance levels are shown by the different darkness levels. The TEC variation (red or orange line) within the dark grey region is not significant, while that extending to the light grey or white region is a significant disturbance above the regular variation. From this index, two significant ionospheric storms are detected when the TEC values increased to the light grey region from the end of January 7 to UT 3:00 on January 8 and UT 8:00–18:00 on 8 January, as indicated by IP2 labels in Fig. 2b. According to results based on observations using the Global Navigation Satellite System (GNSS) (Nishioka et al. 2017), the IP2 positive storm was seen at UT 17:00–22:00 on January 7, which is slightly earlier than the first event.

Fig. 2
figure2

Time variation of a the F10.7 index used as the simulation input and b obtained TEC variation averaged over 35–39° latitude and 125–147° longitude (red line: under the WJRA setting and orange line: under the WOJRA setting) as functions of UT. c TEC map at UT 0:00 on January 8, 2020, d reference TEC map, i.e., median of TEC at the same UT over the previous 27 days, and e their difference. All from the GAIA simulation carried out on January 6, 2020. The dashed line in a with F10.7 values within brackets indicates the unknown information at the simulation time. Grey hatches in b indicate the significance level of the TEC deviation from the 27-day median values (black line) measured on the I-scale (see details in the text and Appendix), as shown in the color bar on the right-hand side, and pink vertical bands show the start and end times of significant TEC variations. The white boxes in ce show the region of our interest for ionospheric storm forecasting. The colors of the contour maps for c, d are common

Figure 2c–e shows TEC global maps related to the large enhancement seen at LT midnight on January 7–8 at ~ 37° in Japan. The difference between the instantaneous profile (Fig. 2c) and the reference TEC, i.e., 27-day median at the same local time (Fig. 2d), provides a deviation TEC map (Fig. 2e). For this event, our simulation suggests that localized TEC enhancements around Japan at the west edge of a northern equatorial anomaly create this event.

To understand the cause of the TEC enhancements, we also output electric field, neutral wind, and atmospheric composition. The east electric field lifts the ionospheric plasma by ExB drift. Southward (northward) neutral wind drags up the plasma along the slanted magnetic field in the middle latitudes in the northern (southern) hemisphere. Fewer recombinations take place at high altitude with fewer molecular ions. The O/N2 ratio, a measure of ion production versus ion loss processes, also varies with season and magnetospheric activity caused by atmospheric dynamics.

The above parameters during this ionospheric event on January 8, 2020 are shown in Fig. 3. The time variation of the latitudinal profile of TEC at 135° longitude from the same GAIA run shows the extension of the equatorial anomaly with 30 TECU (1 TEC unit = 1016 m−2) at 30° latitude and 20 TECU beyond 47° latitude in early January 8 (Fig. 3a). All parameters are dominated by diurnal variations, and some variations are added. The eastward electric field is dominant in the dayside at high latitudes owing to magnetospheric convection, as well as at mid-low latitudes (Fig. 3b). Further enhancement of the eastward electric field over a wide range of latitude is seen from late January 7 and continues LT daytime and evening time on January 8. The meridional neutral wind is northward at daytime and southward at night time at the northern mid-latitude of our interest (Fig. 3c). The O/N2 ratio at 300 km altitude is high in the northern winter hemisphere (Fig. 3d). The ratio rather decreases to < 5 at UT 0:00–8:00 on January 8 compared with O/N2 of ~ 7 at the same time the previous day. Therefore, the TEC enhancement on January 8 would be mainly related to the enhancement of the east electric field, originated from the neutral wind dynamics and/or polarization field.

Fig. 3
figure3

Time variation of latitudinal distribution of a TEC at 135° longitude, b eastward electric field, c southward neutral wind, and d O/N2 ratio at 135° longitude and 300 km altitude, for 3 days from January 6 to January 8, 2020 from the GAIA run carried out on January 6. Vertical white dotted lines show UT 0:00, and horizontal white solid lines show 27° and 47° latitudes

Next, we test the predictability of ionospheric storms using the WJRA simulation and WOJRA simulations from July 2019 to March 2020. Figure 4 shows the GAIA simulation results under these five settings with results based on observations using the GNSS (Nishioka et al. 2017). Here, flag = 1 is assigned when a strong positive (IP2) or negative (IN2) storm is detected in at least one of the TEC I-scales at the five latitudes in Japan (see Appendix), and flag = 2 is assigned when a severe positive (IP3) or negative (IN3) storm is detected in at least one of the TEC I-scales at the five latitudes. Other days are assigned flag = 0. Figure 4 also shows the daily maximum of the Kakioka K index for a reference of the magnetospheric activity (blue line). The observation shows flag enhancements sometimes over the entire year, and some of them are associated with the large K index, e.g., on day of year (DOY) ~ 216 and ~ 243. On the other hand, the current GAIA simulation assumes a quiet magnetospheric condition. The GAIA flag values appear slightly concentrated on days 270–300 and 340–400 from January 1, 2019, which would mainly reflect a seasonal variation. This more sensitive seasonal dependence of the model might be partly affected by the constant quiet magnetospheric setting. These concentrations of flag appearance are more significant under WOJRA-2/3/4 and seem to be improved under WOJRA-1 and WJRA settings.

Fig. 4
figure4

Daily variation of flags from the GAIA simulation (black crosses) and results based on observation (red diamonds), and daily maxima of Kakioka K-index (blue line, right y-axis) for the a WJRA, b WOJRA-1, c WOJRA-2, d WOJRA-3, and e WOJRA-4 settings from July 2019 to March 2020

To evaluate the estimation, we use accuracy, threat score (TS), and Heidke’s skill score (HSS), which are calculated as

$${\text{Accuracy }} = \, \left( {{\text{TP}} + {\text{TN}}} \right)/N,$$
(1)
$${\text{Threat score }} = {\text{ TP}}/\left( {{\text{TP}} + {\text{FP}} + {\text{FN}}} \right),$$
(2)
$${\text{Heidke's skill score}} = {\mkern 1mu} \left( {{\text{TP}} + {\text{TN}} - {\text{Sc}}} \right)/{\mkern 1mu} \left( {N - {\text{Sc}}} \right),$$
(3)

where TP (true positive) is the number of “hits”, i.e., both the observation and model report events (flag ≥ 1). FP (false positive) is the number of “false alarms”, i.e., the model forecasts events while the observation does not (flag = 0). FN (false negative) is the number of “misses”, i.e., the model forecasts quiet while the observation shows events. TN (true negative) is the number of events that both model and observation forecasts as quiet. N = TP + FP + FN + TN. HSS represents the score excluding the random prediction. Sc is the hit rate by random prediction defined as follows.

$${\text{Sc }} = \, \left( {{\text{TP}} + {\text{FN}}} \right) \, /N*\left( {{\text{TP}} + {\text{FP}}} \right) + \left( {{\text{FP}} + {\text{TN}}} \right)/N*\left( {{\text{FN}} + {\text{TN}}} \right).$$
(4)

These scores for the WJRA and WOJRA settings are shown in Fig. 5. All scores decrease with the lead time. The accuracy decreases from 0.80 to 0.72 (Fig. 5a). The TS decreases with time after the cessation of WJRA input: TS = 0.11 (0.096) for the WJRA setting, TS = 0.10 (0.090) for WOJRA-2, and TS = 0.061 (0.044) for WOJRA-4 of all case of K (limited daily maximum K < 4). Both the decreasing trend and values are similar to those in the analysis using magnetospheric quiet days with daily maximum K of less than 4 (blue dashed line in Fig. 5). Since the occurrence number of ionospheric storm events is small, the TS is considered to be a better evaluation than the accuracy for this case. The results of this analysis confirmed that the input of realistic low-altitude information improves the model prediction accuracy.

Fig. 5
figure5

a Accuracy, b threat score, and c Heidke’s skill score obtained under the WJRA and WOJRA settings for the whole period from July 2019 to March 2020 (black solid line) and for the case of magnetospheric quiet condition with daily maximum K < 4 (blue dashed line). Error bars represent the sensitivity of the values derived from one hit event being moved from or into the true negative case, i.e., TP and TN in Eqs. (1, 2, 3, 4) are replaced by TP ± 1 and TN  1, respectively

As mentioned above, HSS represents the score excluding the random prediction, with positive value means better prediction compared to the random prediction. The derived score shows the positive value for the WJRA and WOJRA-1 ~ 3 settings, while it becomes negative for the WOJRA-4 setting (Fig. 6c). This indicates that the prediction ability is better than the random prediction up to the WOJRA-3 setting, while the accuracy is worse for the WOJRA-4 setting. Therefore, the maximum lead time is evaluated to be ~ 1-day.

Fig. 6
figure6

Time variation of altitudinal profiles of a zonal mean temperature around the south pole (88° latitude) and b zonal mean zonal wind velocity at 60° latitude from the GAIA simulation including JRA (WJRA), and c zonal mean temperature around the south pole and d zonal mean zonal wind velocity at 60° latitude from the WOJRA-4 (see details in the text), during an SSW event that occurred in the southern hemisphere in August–September 2019. The colors of the contour maps for each parameter are common and are shown in each column. e Time variation of neutral temperature around the south pole and 10 hPa under the WJRA (black line), WOJRA-1 (blue), WOJRA-2 (light blue), WOJRA-3 (green), and WOJRA-4 (yellow-green) settings, and f expanded plot for 13 days from August 26. The dotted line indicates the event definition for SSW temperature increase, i.e., 25 K within 7 days

On the other hand, if the prediction for tomorrow is assumed to be the same as today, the accuracy, TS, and HSS are 0.78, 0.19, and 0.20, respectively. The neural network method provides the prediction of ionospheric storms using the critical ionospheric frequency foF2 from the ionosonde at Tokyo over 1985–1996 (Nakamura et al. 2007) with the accuracy of 0.63, TS of 0.22, and HSS of 0.11 based on their Table 15. Although prediction ability of our numerical model is less than their neural net approaches except for the accuracy value, we can obtain spatial and temporal variation with physical backgrounds, as described in Fig. 3. To contribute to space weather forecast efficiently, the improvements of our model and system improvements described in the last paragraph of “Summary and future works” section are required.

Target 2: sudden stratospheric warming

The changes in the low and middle atmospheres during SSWs cause significant disturbances in the ionosphere. Atmospheric tides are considered to be a primary driver for the ionospheric disturbances via the modulation of the E region dynamo in the equatorial and low-latitude regions and via direct propagation with changes in the thermosphere neutral composition in the middle- and high-latitude regions (e.g., Pedatella et al. 2016). The ionospheric storm flags (see details in “Target 1: ionospheric storms” section) often appear during SSW events; therefore, predicting SSW is also important for the ionospheric forecast. Karpechko et al. (2018) reported that two of the nine forecast models could predict the occurrence of a SSW in February 2018 at 12 days prior, and most of the models could predict the SSW at least 4 days prior (Karpechko et al. 2018). Here, we investigate the SSW signature in the GAIA with the WJRA and WOJRA settings, i.e., dependence on the low-altitude forcing.

Figure 6 shows an SSW event that occurred in the southern hemisphere in August–September 2019. SSW in the southern hemisphere is rare compared with the northern hemisphere. As is typical of SSW, the local maximum of the zonal mean neutral temperature decreases its altitude (Fig. 6a) with an eastward neutral wind (Fig. 6b). A boundary where the zonal mean wind switches from easterly to westerly reaches ~ 1 hPa (up to ~ 5 hPa) on September 9 (September 17). The temperature (Fig. 6c) and velocity variations (Fig. 6d) under the WOJRA-4 setting show similar distributions to those in the WJRA simulation. This suggests that WOJRA-4 is sufficiently useful for forecasting including SSWs effects.

The time variations of the zonal mean temperature at 10 hPa and 88° latitude show a similar trend among the five settings, while there are modifications in the details. For example, the temperature on August 27 under the WOJRA-4 setting is 200 K, and this decreases to 196 K under the WJRA setting. On the other hand, the temperature on August 31 gradually increases from ~ 202 K under the WOJRA-4 setting to 205 K under the WJRA setting. This temperature difference is enough significant compare to a numerical error of ~ 0.4 K derived as a standard derivation of temperature distribution during this period. These modifications make the slope of the temperature steeper. The temperature increase after September 15 is greater than the threshold level of the SSW definition, ~ 25 K in 1 week, as shown by the dotted line, under all settings.

Figure 7 shows an SSW event that occurred in the northern hemisphere in February 2020. Similarities in the results under the WJRA and WOJRA-4 settings are again found. Note that white vertical lines in Fig. 7a–d show the results from the same simulation run which was carried out on DOY 38. The WJRA setting provides profiles up to DOY 36, as shown by the white lines in Fig. 7a, b indicating a growth of SSW with decreasing altitude of the local maxima of the temperature and eastward velocity. The WOJRA-4 output indicates an increase in the altitude of the temperature peak for the following DOY 37–39 with the appearance of a new enhancement of eastward velocity at ~ 1 hPa on DOY 38–39. The cessation of SSW growth is foreseen for this event.

Fig. 7
figure7

As in Fig. 6, except for parameters in the northern hemisphere during an SSW event in the northern hemisphere in February 2020

Figure 8 shows the ionospheric storm flag over Japan estimated by observation and simulations for the same period as in the case of Fig. 7f. Observation shows disturbances on DOY 33 and 34 under weak magnetic activity with the daily maximum Kakioka K indexes of 3 and 1, respectively. The WOJRA-4 simulation predicts disturbances on DOY 30–31 and 35–36, which would be associated with the continuous increase in temperature over DOY 29–33 and a larger enhancement of temperature on DOY 34–35 (Fig. 7f) under the WOJRA-4 setting. As the estimated temperature decreases, the disturbance flag shifts to DOY 31–32. Although no exact prediction, i.e., ionospheric disturbance on DOY 33–34, was achieved by the system for this event, the occurrence of SSW is useful information for predicting ionospheric disturbances.

Fig. 8
figure8

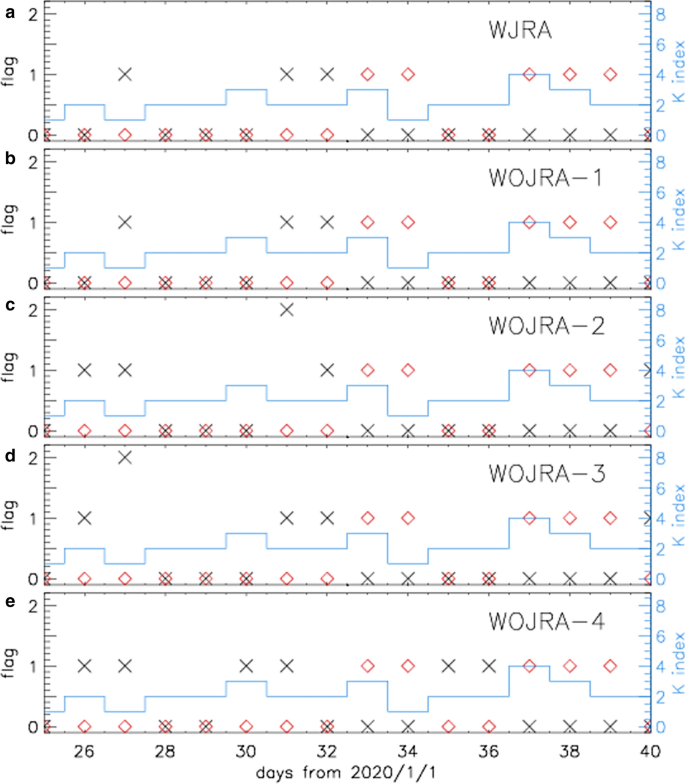

As in Fig. 4, except for showing the period during the SSW event in February 2020

The SSW is suggested to be more predictable for a few weeks prior (Karpechko et al. 2018). GAIA can also predict SSW growth and decay at least 2 days prior and it is expected to serve well in space weather forecasting. We briefly check the maximum lead time for a prediction of the SSW in 2019 using GAIA. Figure 9a shows the time variation of zonal mean neutral temperature at the southern pole at 10 hPa altitude from extended simulations carried out from August 26 (red line) to September 5 (light blue), 2019. Compared to the steep increase on September ~ 6 under the WJRA setting (black line), the temperature in the simulation run on August 26 (red) shows a smaller increase ~ 14 K (Fig. 9b) with less latitudinal shift of the temperature maxima (top left plot of Fig. 9c). A large temperature increase with a latitudinal shift indicating an occurrence of the SSW is firstly seen in the simulation run on August 28 and 29 (Fig. 9b). On the other hand, the amount of temperature increase decreases compared to the SSW occurrence criteria, 25 K within a week, in the simulation run on the following 4 days, from August 30 to September 2. The poleward extension of the temperature maxima also decreases especially on August 30 and 31 (middle and right plots in the second low of Fig. 9c). Then the large temperature increase is predicted again in the simulation runs on September 3 and later. Therefore, the lead time to forecast this SSW is 3 days with a precursor in 9 days prior. Note that the lead time varies with SSW events (e.g., Marshall and Scaife 2010), in addition to the various lead time among different models for a specific SSW (e.g., Karpechko et al. 2018). Application to more SSW events is also required to understand the behavior of the prediction system.

Fig. 9
figure9

a Time variation of zonal mean neutral temperature at the southern pole at 10 hPa altitude from extended simulations carried out from August 26 to September 5, 2019; b maximum increase of the temperature within September 6–13, 2019, and c time variation of latitudinal distribution of zonal mean neutral temperature at 10 hPa from September 1 to 13, 2019 in each simulation run. Black line in a shows the variation under WJRA setting, and other line colors distinguish the simulation date indicated with colors of diamonds in b. The simulation date for c is labeled in the top of each plot

Summary and future works

We have applied real-time and forecast simulations using the physical global model GAIA. This version of GAIA includes variable forcing from low altitudes using the meteorological reanalysis data and the solar EUV flux referring to the F10.7 index. In this GAIA quasi-real-time and ~ 2-day forecast simulation, the latest information, i.e., the meteorological reanalysis data up to 2 days prior and the F10.7 index up to one day prior, is included.

The ionospheric storm events are detected by applying an ionospheric storm index called the I-scale to the GAIA simulation results. The GAIA simulation system provides global distributions of TEC with background atmospheric and electric distributions including a near-future prediction. The results of the detection of significant ionospheric storms under the full and limited (without meteorological and F10.7) input settings show that the model accuracy decreases with the duration of the simulation without the full inputs.

The characteristic temperature enhancement and neutral wind variation of SSWs are seen in the GAIA real-time and forecast simulations. The full and limited input settings provide similar predictions of SSW growth and decay at least 2 days prior.

Finally, we raise future work on the GAIA model and real-time system to contribute sufficiently to space weather forecast operations. One task is the inclusion of the variation in magnetospheric inputs such as high-latitude electric field and auroral precipitation. We are developing a new version of GAIA that includes these processes. Solar wind observation provides essential information to constrain these magnetospheric inputs. Both solar wind and magnetospheric inputs sometimes vary dramatically within a time scale of minutes. Solar wind observation is usually held at the L1 Lagrange point, which provides solar wind variation about one hour before the solar wind reaches Earth’s magnetosphere. Consecutive inputs of the real-time solar wind and simulation run are required to reflect the highly variable information efficiently, while the current system runs the GAIA simulation once per day when the JRA information for the 2 days prior is available. The current version refers to the meteorological reanalysis data up to 2 days before. The utilization of the meteorological real-time and forecast data, which are not publicly open, in addition to the reanalysis data is also expected to improve the model prediction accuracy. Assimilating ionospheric observations in addition to the meteorological information is expected to increase the accuracy of the model. Ensemble methods with providing prediction accuracy are also expected. To extend the prediction lead time, the prediction information of the solar EUV flux (F10.7), solar wind, and magnetospheric inputs are also required. We also need to provide output that is useful for space weather operation and society rather than the model physical parameters. Work on predicting ionospheric phenomena such as the sporadic-E layer by GAIA simulation is ongoing (Shinagawa et al., submitted to this issue). The predictability of the ionospheric disturbances during SSWs should be tested further by applying the past SSW events. We are also testing the input of plasma density information into the radio propagation tool HF-START (High Frequency Simulator Targeting for All-users' Regional Telecommunications). Model evaluation with lead time information for these various data would be useful.

Availability of data and materials

Model and observation outputs related to this study are provided to the scientific community on request (contact: chihiro.tao@nict.go.jp).

Abbreviations

ACE:

Advanced composition explorer

CTIPe:

Coupled thermosphere ionosphere plasmasphere electrodynamics

DOY:

Day of year

EUV:

Extreme ultraviolet

EUVAC:

Solar EUV flux model for aeronomic calculation

FN:

False negative

FP:

False positive

GAIA:

Ground-to-topside model of Atmosphere and Ionosphere for Aeronomy

GCM:

General circulation model

GNSS:

Global navigation satellite system

HF-START:

High-frequency simulator targeting for all-users' regional telecommunications

JMA:

Japan Meteorological Agency

LT:

Local time

NICT:

National Institute of Information and Communications Technology

SSW:

Sudden stratospheric warming

SWx:

Space weather

TEC:

Total electron content

TECU:

TEC unit

TN:

True negative

TP:

True positive

TS:

Threat score

UT:

Universal time

WACCM-X:

Whole atmosphere community climate model with thermosphere and ionosphere extension

WJRA:

GAIA simulation with JRA

WOJRA:

GAIA simulation without JRA

References

  1. Codrescu MV, Negrea C, Fedrizzi M, Fuller-Rowell TJ, Dobin A, Jakowsky N, Khalsa H, Matsuo T, Maruyama N (2012) A real-time run of the coupled thermosphere ionosphere plasmasphere electrodynamics (CTIPe) model. Space Weather 10:S02001. https://doi.org/10.1029/2011SW000736

    Article  Google Scholar

  2. Fernandez-Gomez I, Fedrizzi M, Codrescu MV, Borries C, Fillion M, Fuller-Rowell TJ (2019) On the difference between real-time and research simulations with CTIPe. Adv Space Res 64(10):2077–2087

    Article  Google Scholar

  3. Fujiwara H, Miyoshi Y (2010) Morphological features and variations of temperature in the upper thermosphere simulated by a whole atmosphere GCM. Ann Geophys 28:427–437

    Article  Google Scholar

  4. Harada Y, Kamahori H, Kobayashi C, Endo H, Kobayashi S, Ota Y, Onoda H, Onogi K, Miyaoka K, Takahashi K (2016) The JRA-55 reanalysis: representation of atmospheric circulation and climate variability. J Meteor Soc Japan 94:269–302. https://doi.org/10.2151/jmsj.2016-015

    Article  Google Scholar

  5. Jin H, Miyoshi Y, Fujiwara H, Shinagawa H, Terada K, Terada N, Ishii M, Otsuka Y, Saito A (2011) Vertical connection from the tropospheric activities to the ionospheric longitudinal structure simulated by a new Earth’s whole atmosphere-ionosphere coupled model. J Geophys Res 116:A01316. https://doi.org/10.1029/2010JA015925

    Article  Google Scholar

  6. Jin H, Miyoshi Y, Pancheva D, Mukhtarov P, Fujiwara H, Shinagawa H (2012) Response of migrating tides to the stratospheric sudden warming in 2009 and their effects on the ionosphere studied by a whole atmosphere-ionosphere model GAIA with COSMIC and TIMED/SABER observations. J Geophys Res 117:A10323. https://doi.org/10.1029/2012JA017650

    Article  Google Scholar

  7. Karpechko AY, Charlton-Perez A, Balmaseda M, Tyrrell N, Vitart F (2018) Predicting sudden stratospheric warming 2018 and its climate impacts with a multimodel ensemble. Geophys Res Lett 45:13538–13546. https://doi.org/10.1029/2018GL081091

    Article  Google Scholar

  8. Kobayashi S, Ota Y, Harada Y, Ebita A, Moriya M, Onoda H, Onogi K, Kamahori H, Kobayashi C, Endo H, Miyaoka K, Takahashi K (2015) The JRA-55 reanalysis: general specifications and basic characteristics. J Meteor Soc Japan 93:5–48. https://doi.org/10.2151/jmsj.2015-001

    Article  Google Scholar

  9. Liu HL, Bardeen CG, Foster BT, Lauritzen P, Liu J, Lu G, Marsh DR, Maute A, McInerney JM, Pedatella NM, Qian L, Wang W (2018) Development and validation of the whole atmosphere community climate model with thermosphere and ionosphere extension (WACCM-X 20). J Adv Model Earth Syst. https://doi.org/10.1002/2017MS001232

    Article  Google Scholar

  10. Marshall AG, Scaife AA (2010) Improved predictability of stratospheric sudden warming events in an atmospheric general circulation model with enhanced stratospheric resolution. J Geophys Res 115:D16114. https://doi.org/10.1029/2009JD012643

    Article  Google Scholar

  11. Miyoshi Y, Fujiwara H (2003) Day-to-day variations of migrating diurnal tide simulated by a GCM from the ground surface to the exobase. Geophys Res Lett 30:1789. https://doi.org/10.1029/2003GL017695

    Article  Google Scholar

  12. Nakamura MI, Maruyama T, Shidama Y (2007) Using a neural network to make operational forecasts of ionospheric variations and storms at Kokubunji Japan. Earth Planets Space 59:1231–1239

    Article  Google Scholar

  13. Nishioka M, Tsugawa T, Jin H, Ishii M (2017) A new ionospheric storm scale based on TEC and foF2 statistics. Space Weather 15:228–239. https://doi.org/10.1002/2016SW001536

    Article  Google Scholar

  14. Pedatella NM, Fang T-W, Jin H, Sassi F, Schmidt H, Chau JL, Siddiqui TA, Goncharenko L (2016) Multimodel comparison of the ionosphere variability during the 2009 sudden stratosphere warming. J Geophys Res Space Physics 121:7204–7225. https://doi.org/10.1002/2016JA022859

    Article  Google Scholar

  15. Richards PG, Fennelly JA, Torr DG (1994) EUVAC: A solar EUV flux model for aeronomic calculations. J Geophys Res 99(A5):8981–8992

    Article  Google Scholar

  16. Sai Gowtam V, Tulasi Ram S (2017) An Artificial Neural Network based ionospheric model to predict NmF2 and hmF2 using long-term data set of FORMOSAT-3/COSMIC radio occultation observations: preliminary results. J Geophy Res Space Phys 122(11):743–11755. https://doi.org/10.1002/2017JA024795

    Article  Google Scholar

  17. Shinagawa H (2009) Ionosphere simulation. J Natl Inst Inf Comm Technol 56(1–4):199–207

    Google Scholar

  18. Shinagawa H, Miyoshi Y, Jin H, Fujiwara H (2017) Global distribution of neutral wind shear associated with sporadic E layers derived from GAIA. J Geophys Res Space Physics 122:4450–4465. https://doi.org/10.1002/2016JA023778

    Article  Google Scholar

  19. Shinagawa H, Jin H, Miyoshi Y, Fujiwara H, Yokoyama T, Otsuka Y (2018) Daily and seasonal variations in the linear growth rate of the Rayleigh-Taylor instability in the ionosphere obtained with GAIA. Progress Earth Planet Sci 5(16):1–14. https://doi.org/10.1186/s40645-018-0175-8

    Article  Google Scholar

  20. Srivani I, Siva Vara Prasad G, and Venkata Ratnam D (2019) A deep learning-based approach to forecast ionospheric delays for GPS Signals, IEEE. Geosci Remote Let 16(8):1180–1184

    Article  Google Scholar

Download references

Acknowledgements

The dataset used for this study is provided from the Japanese 55-year Reanalysis (JRA-55) project carried out by the Japan Meteorological Agency (JMA). The dataset of the solar F10.7 index is from Natural Resources Canada. This model computation was carried out using the computer facility at the National Institute of Information and Communications Technologies. Model results are provided to the scientific community on request (contact: chihiro.tao@nict.go.jp). This research is proceeded within a commissioned research of the Ministry of Internal Affairs and Communications, Japan, "Promotion of observation and analysis of radio wave propagation" and is supported by MEXT/JSPS KAKENHI Grants 15H05813 and 19K03942.

Funding

This research is proceeded within a commissioned research of the Ministry of Internal Affairs and Communications, Japan, “Promotion of observation and analysis of radio wave propagation”, and is supported by MEXT/JSPS KAKENHI Grants 15H05813 and 19K03942.

Author information

Affiliations

Authors

Contributions

CT conducted the research and is responsible for the results presented in this paper. HJ, YM, HS, and HF are the developers of GAIA and contributed to the discussion as experts of the ionosphere and atmosphere. MN is responsible for the observation dataset and its processing. MI contributed to the discussion as an expert of the ionosphere and its social impacts. All authors read and approved the final manuscript.

Corresponding author

Correspondence to Chihiro Tao.

Ethics declarations

Ethics approval and consent to participate

No applicable.

Consent for publication

No applicable.

Competing interests

The authors declare that they have no competing interests.

Additional information

Publisher's Note

Springer Nature remains neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Appendix: Ionospheric Storm Index, I-scale, for GAIA

Appendix: Ionospheric Storm Index, I-scale, for GAIA

We use a scale called the “I-scale” [ái skéil] (Nishioka et al. 2017) to specify the level of ionospheric storms from complicated ionospheric variations with season, day-to-day, local time, latitude, and solar activities. The I-scale represents the relative levels of deviations of ionospheric parameters from their reference level, i.e., 27-day median value, compared with their median μ and standard deviation σ at each latitude, local time, and season. At NICT, this I-scale is referred to in the monitoring and forecasting of the ionosphere disturbance as one of the space weather phenomena (e.g., https://swc.nict.go.jp/en/knowledge/i-scale.html). The I-scale is categorized into seven levels: I0 represents a quiet state, and IP1 (IN1), IP2 (IN2), and IP3 (IN3) represent moderate, strong, and severe positive (negative) storms, respectively. Nishioka et al. (2017) derived two I-scales using the Total Electron Content (TEC) and ionospheric F region critical frequency (foF2) in Japan using a dataset of observations over 18 years from 1997 to 2014. We derive a new I-scale for GAIA to detect relative significant variations within the GAIA simulation. An outline of the I-scale derivation is briefly described below. See details in Nishioka et al. (2017).

Using the time series of ionospheric parameters O(λ, LT, day) and their 27-day median values R(λ, LT, day) at the same local time (LT) and the same latitudinal bands (λ), we obtain the deviation ratio as

$$P\left( {\lambda ,{\text{ LT}},{\text{ day}}} \right) \, = \, \{ O\left( {\lambda ,{\text{ LT}},{\text{ day}}} \right)\; - \;R\left( {\lambda ,{\text{ LT}},{\text{ day}}} \right)\} \, /R\left( {\lambda ,{\text{ LT}},{\text{ day}}} \right).$$

We use TEC obtained from GAIA simulation results as the ionospheric parameter. The long-term (1996–2016) dataset is divided into 480 groups on the bases of combinations of (i) four seasons: February–April, May–July, August–October, and November–January; (ii) five latitudinal bands, and (iii) 24 LT bins (1, 2, …, 24 h). We use the five latitudinal bands over Japan used for the observation dataset: 27–31°N, 31–35°N, 35–39°N, 39–43°N, and 43–47°N at 125–147° longitude. We obtain the mean μ(λ, season, LT) and the standard deviation σ(λ, season, LT) values of each P-distribution group. The normalized P-distribution \(\widehat{{P}}\) is derived as

$$\widehat{P}\;\left( {\lambda ,{\text{ LT}},{\text{ season}}} \right){\text{ }} = {\text{ }}\{ P\left( {\lambda ,{\text{ season}},{\text{ LT}}} \right) - \;\mu \left( {\lambda ,{\text{ season}},{\text{ LT}}} \right)\} /{\text{ }}\sigma \left( {\lambda ,{\text{ season}},{\text{ LT}}} \right)$$

The ionospheric storm level is defined by setting thresholds for the normalized numbers to seven levels: IP3 (for \(\widehat{P}\) σ > 5σ), IP2 (3 σ < \(\widehat{P}\) σ ≤ 5σ), IP1 (1σ < \(\widehat{P}\) σ ≤ 3σ), I0 (− 1σ\(\widehat{P}\) σ ≤ 1σ), IN1 (− 2σ\(\widehat{P}\) σ < − 1σ), IN2 (− 3σ\(\widehat{P}\) σ < − 2σ), and IN3 (\(\widehat{P}\) σ < − 3σ). We detect ionospheric storms IP2, IP3, IN2, and IN3 when these conditions continue for 2 h or longer.

Figure 10 shows an example of P and \(\widehat{P}\) profiles derived using GAIA. The P profiles at nighttime (Fig. 10a) and at noon (Fig. 10b) show different shapes: small peak with more extension toward large values during nighttime compared with a sharp profile at noon. The ratios of |P|< 20% for the P at LT 20 h and 12 h are 56.0% and 83.3%, respectively. The difference in the ratio for the same criteria for the normalized \(\widehat{P}\) profile decreases, e.g., the ratios of |\(\widehat{P}\)|< 1 become 61.8% and 65.9%, respectively. Therefore, the normalized \(\widehat{P}\) provides similar significance information independent of LT, season, and latitude.

Fig. 10
figure10

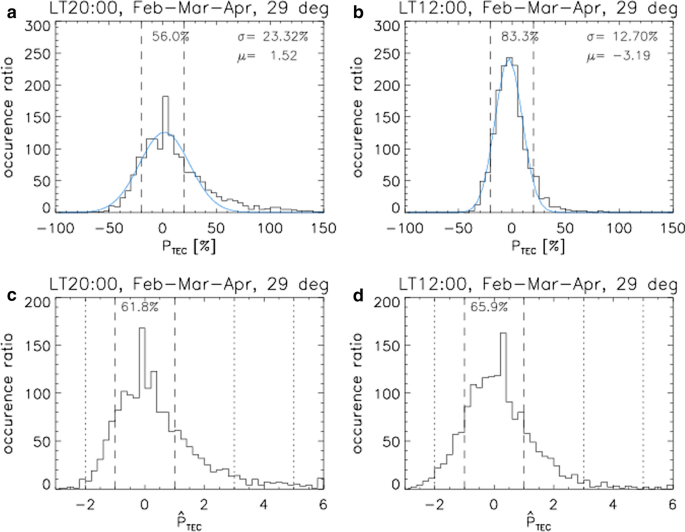

Statistical distribution of PTEC from the GAIA simulation output from 1996 to 2016 for the February–March–April season at local time (LT = UT + 9 h) a 20:00 and b noon at the 29° N latitudinal band, and normalized \(\widehat{P}\) value for the same season and latitude for LT c 20:00 and d noon. The blue lines in a, b are Gaussian fittings with the mean μ and the standard deviation σ, which are shown at the top right of each panel, and the numbers at the top center indicate the ratio of samples within |PTEC|< 20%. The numbers at the top center of c, d are the ratio of samples within |\(\widehat{P}\)TEC|< 1

Variations in the standard deviation σ using GAIA at the 29° N and 41° N latitudinal bands are shown in Fig. 11. The deviation shows enhancements at pre-(LT = UT + 9 h, 19:00–23:00) and post-midnight (LT 3:00–5:00) compared with small values during daytime for all the seasons. The deviation during spring (black line) shows large values at early morning for 29° N and nighttime for 41° N bands, and that during winter (orange line) is largest at other LT. Compared with those derived from the observation (Nishioka et al. 2017), the seasonal and LT variations are similar. Since these variations would be related to the equatorial ionospheric anomaly, this similarity suggests a good ability of the model to reproduce the phenomena statistically. On the other hand, there are differences in detail, such as the larger amplitude of LT variation and less latitudinal difference in absolute values for GAIA than for the observation. This shows a statistical behavior of the model. The I-scale evaluation enables us to detect the significant events among the model variations.

Fig. 11
figure11

Standard deviation as a function of LT = UT + 9 h, from the a GAIA simulation and b observation at the 29° N latitudinal band, and from the c GAIA simulation and d observation at the 41° N latitudinal band. Color distinguishes four seasons: February–April (black), May–July (blue), August–October (green), and November–January (orange)

Rights and permissions

Open Access This article is licensed under a Creative Commons Attribution 4.0 International License, which permits use, sharing, adaptation, distribution and reproduction in any medium or format, as long as you give appropriate credit to the original author(s) and the source, provide a link to the Creative Commons licence, and indicate if changes were made. The images or other third party material in this article are included in the article's Creative Commons licence, unless indicated otherwise in a credit line to the material. If material is not included in the article's Creative Commons licence and your intended use is not permitted by statutory regulation or exceeds the permitted use, you will need to obtain permission directly from the copyright holder. To view a copy of this licence, visit http://creativecommons.org/licenses/by/4.0/.

Reprints and Permissions

About this article

Verify currency and authenticity via CrossMark

Cite this article

Tao, C., Jin, H., Miyoshi, Y. et al. Numerical forecast of the upper atmosphere and ionosphere using GAIA. Earth Planets Space 72, 178 (2020). https://doi.org/10.1186/s40623-020-01307-x
