Development of miniaturized pick-up amplification circuit for plasma particle detectors on board satellites

Abstract

Plasma particles and waves are important observation targets in space plasmas for understanding the mechanisms of energy and momentum transfer between waves and particles because space plasmas are essentially collisionless. Multi-point observations are crucial for understanding the spatial–temporal variations of space plasmas. To realize such observations by a large number of satellites, onboard instruments should be miniaturized to reduce their required resources. This paper proposes a small amplifier for plasma particle detectors onboard satellites. This charge-sensitive amplifier converts an electron cloud emitted from the detector, for example a microchannel plate, to a current pulse that can be handled by a time-of-flight measurement circuit to determine the particle velocity and thus mass. The amplifier is realized using application-specific integrated circuit technology to minimize size. Its dimensions are estimated to be \(2120\,\mathrm{ \mu m }\times 1680\,\mathrm{ \mu m}\), which are much smaller than those of a conventional amplifier. The response time of the proposed amplifier has a variation of less than \(1.2\,\mathrm{ ns}\) over the range of expected input levels. The amplifier can handle up to \(2\times {10}^{7}\) signals per second and has a sensitivity of \(1.5\,\mathrm{ V}/\mathrm{pC}\) at \(20\,\mathrm{^\circ{\rm C} }\).

Graphical Abstract

Main text

Introduction

In situ observations of plasma particles and waves by satellites are essential for understanding the mechanisms of energy transfer between particles and waves in space plasmas. For space plasmas, it is difficult to distinguish spatial variations from temporal ones based on single-satellite observations.

To overcome this problem, recent satellite fleet missions such as Cluster-II (Escoubet et al. 2001), THEMIS (Angelopoulos et al. 2008), and MMS (Burch et al. 2016; Tooley et al. 2016) have formation flights that consist of 4–5 satellites. However, a lot of resources are required for these multi-point missions, and opportunities for conducting these missions are limited. The use of small satellites is a feasible way to increase such opportunities. Attempts to miniaturize the instruments for detecting plasma waves have been made, including the development of dedicated devices based on an application-specific integrated circuit (ASIC) (Ozaki et al. 2016; Zushi et al. 2019). The circuits necessary for plasma wave detection can be integrated on a chip using ASIC technology. The size of such a dedicated device is \(5\,\mathrm{ mm }\times 5\,\mathrm{ mm}\) (Ozaki et al. 2016), which is small enough for the installation of plasma wave instruments on small satellites.

Particle measurements with mass discrimination are important because several ion species are often present in space plasmas. For example, plasma in the terrestrial magnetosphere consists of\({\mathrm{H}}^{+}, {\mathrm{He}}^{+}, {\mathrm{He}}^{++} , {\mathrm{N}}^{++}/{\mathrm{O}}^{++} \mathrm{group}, {\mathrm{N}}^{+}/{\mathrm{O}}^{+}\mathrm{ group}\), and molecular ions. Previous studies have shown that the ion composition drastically changes with geomagnetic and solar activity (e.g., Young et al. 1982; Maggiolo and Kistler 2014). The ion composition affects the dispersion relation of electromagnetic ion cyclotron waves (e.g., Rauch and Roux 1982), which controls the propagation and resonance conditions for waves with particles (Summers and Thorne 2003). Mass-dependent variations of ion fluxes have also been reported (Gloeckler et al. 1985; Keika et al. 2022; Shelley et al. 1972; Williams 1981). Recently, energy transfer from one ion species to other species through wave–particle interactions has been detected using the Wave–Particle Interaction Analyzer (Katoh et al. 2013; Kitamura et al. 2018; Shoji et al. 2021; Asamura et al. 2021). Thus, mass-discriminated particle measurements are essential for understanding the dynamic variations of space plasmas. To adapt particle sensors to small satellites, the sensors need to be miniaturized in the same way that plasma wave instruments have been. Our group has developed a miniaturized amplifier for particle measurements (HERMES64) that provides particle counts accumulated during a given period (Saito et al. 2017). However, HERMES64 does not provide signals for time-of-flight (TOF) analysis which is used for the discrimination of ion species.

The TOF technique is based on the measurement of the time required for an incoming particle to move from a specific location to another inside a sensor. Since the TOF path length is known, the TOF technique provides information regarding particle velocity. The ASIC developed in the present study amplifies signals from a microchannel plate (MCP). The amplified signals can be used for TOF calculations to discriminate typical ion species in planetary magnetospheres and the solar wind. We present the design and specifications of the developed ASIC amplifier and demonstrate the performance of its prototype using laboratory experiments.

Instruments for plasma particle observations

Figure 1 schematically shows the principle of the TOF-based ion energy-mass analysis. The TOF technique is commonly used with an electrostatic energy-per-charge analyzer (ESA), which can be used to deduce particle mass-per-charge from the energy-per-charge and velocity information (Wüest 1998; Carlson and McFadden 1998, and references therein). A typical TOF system measures the difference of the detection times between two inputs onto an MCP; one input is the secondary electrons emitted from an ultra-thin carbon foil when an incoming particle passes through it (START signal) and the other input is the incoming particle itself (STOP signal). The mass of an ion is expressed as follows:

Fig. 1
figure 1

Illustration of the principle of TOF-based ion energy-mass analysis. The energy analyzer determines the energy per charge. When ions pass through the ultra-thin carbon foil, secondary electrons are generated. The incoming ions and secondary electrons are separately detected by the MCP. The electron cloud emitted from the MCP is collected by the anode and becomes a current pulse. Fast amplifiers receive the current and supply “START” and “STOP” signals to the TDC. The particle velocity is calculated from the difference in the detection timing between the START and STOP signals. Finally, the particle mass-per-charge is determined from the energy-per-charge and particle velocity information

$$m = \left(\frac{2E}{{L}^{2}}\right){{t}_{\mathrm{ion}}}^{2},$$

where m, E, L, and \({t}_{\mathrm{ion}}\) are the particle mass, energy, flight path length for ions, and flight time for ions, respectively. Therefore, the mass of ions can be obtained from \({t}_{\mathrm{ion}}\) if E and L are given.

Figure 2 shows photographs and a circuit block diagram of the conventional amplifier implemented in the low-energy particle experiment–ion mass analyzer (LEPi) (Asamura et al. 2018), which is a TOF-type ion energy-mass analyzer onboard the Arase satellite (Miyoshi et al. 2018). When a particle hits the MCP, it generates an electron cloud that produces a current pulse of \(30\)-\(200\,\mathrm{ mV}\) (at an input impedance of \(50\,\Omega\)) with a duration of \(1\)-\(2\,\mathrm{ ns}\). The amplifier provides timing signals with a pulse height of \(3.3\,\mathrm{ V}\) for the subsequent time-to-digital converter (TDC), which performs the TOF calculation. The LEPi has 15 azimuthal angular channels. Conventional amplifiers are installed on 15 identical boards arranged radially and connected in parallel, as shown in Fig. 2b. Two amplifiers are installed on each board, giving a total of 30 amplifiers in the LEPi. The size of each board is \(6.0\,\mathrm{ cm }\times 5.7\,\mathrm{ cm}\). In the assembled configuration, the amplifier (which consists of 15 boards) consumes a volume of \({230 \,\mathrm{cm}}^{2}\) (total area of the bottom) \(\times 7 \,\mathrm{cm}\) (height).

Fig. 2
figure 2

Amplifiers used in the LEPi onboard the Arase satellite. a One channel of amplifiers combined on a single board (\(6.0\,\mathrm{ cm}\times 5.7\,\mathrm{ cm}\)). b Overview of amplifiers with 15 boards arranged azimuthally (\({230\,\mathrm{ cm}}^{2}\) (total area of the bottom) \(\times 7\,\mathrm{ cm}\) (height)). c Circuit block diagram of the amplifier. The LEPi has 15 channels that discriminate the incoming directions of particles. Each channel contains MCP anodes for START and STOP signals, respectively. The anodes receive the electron clouds emitted from the MCP. Each amplifier, which consists of a preamplifier and a constant-fraction discriminator (CFD), is connected to an anode. Two amplifiers are installed on a single board, for a total of 30 amplifiers in the LEPi. The output signal of the amplifier is fed into the TDC in the subsequent stage (Asamura et al. 2018)

The proposed ASIC-based amplifier was developed for an ion energy-mass spectrometer for exploring plasma dynamics in the terrestrial magnetosphere. Since the major ion species in the terrestrial magnetosphere are \({\mathrm{H}}^{+}, {\mathrm{He}}^{+}, {\mathrm{He}}^{++} , {\mathrm{N}}^{++}/{\mathrm{O}}^{++} \mathrm{group}, {\mathrm{N}}^{+}/{\mathrm{O}}^{+}\mathrm{ group},\) and molecular ions, the required mass resolution (\(\Delta m/m\)) is below \(0.5\). Note that conventional ion energy-mass spectrometers measure mass per charge. Here, we consider a conventional ion energy-mass spectrometer that consists of an electrostatic energy-per-charge analyzer and a simple TOF velocity analyzer. Incident particles fly free inside the TOF measurement chamber. For this case, the mass resolution can be expressed as:

$$\frac{\Delta m}{m} =\frac{\Delta E}{E} +\frac{2\Delta t}{t},$$

where \(m, E, \mathrm{and }\,t\) are the particle mass, energy, and flight time inside the TOF measurement chamber, respectively (Wurz 2000). The energy resolution (\(\Delta E/E\)) is determined by the electrostatic energy-per-charge analyzer. We take \(0.2\) for \(\Delta E/E\) since \(\Delta E/E\) for the LEPi onboard the Arase satellite, which is a terrestrial inner magnetospheric mission (Miyoshi et al. 2018), is \(0.13\) to \(0.16\) (full width at half maximum) (Asamura et al. 2018). Thus, \(\Delta t/t\) should be below \(0.15\). However, a higher ion energy leads to a shorter flight time. If we take protons (the lightest ions) with an energy of \(25\,\mathrm{ keV}\) (the highest energy detectable by the LEPi), the flight time becomes \(11\,\mathrm{ ns}\) for the LEPi. \(\Delta t\) should be below \(1.6\,\mathrm{ ns}\) in this case. Thus, we took \(1\,\mathrm{ ns}\) as the required timing resolution for the proposed ASIC-based amplifier.

In previous satellite missions for investigating fast plasma phenomena in the terrestrial magnetosphere, the time resolutions of the ion instruments were \(78\,\mathrm{ ms}\) (ESA onboard the FAST satellite (Carlson et al. 2001)), \(40\,\mathrm{ ms}\) (ISA onboard the Reimei (INDEX) satellite (Asamura et al. 2003)), and \(150\,\mathrm{ ms}\) (FPI-DIS onboard the MMS satellite (Pollock et al. 2016)). Their sampling times for each energy step were \(1.6\), \(1.3\), and \(2.3\,\mathrm{ ms}\), respectively. For defining the requirements for the proposed ASIC-based amplifier, we take a sampling time of \(1\,\mathrm{ ms}\) and a maximum count rate of \(1000\) counts/sample as an example observation. If we set \(100\,\mathrm{ ns}\) for the dead time due to the ASIC processing time, the saturation effects caused by the dead time will reduce the detected counts by \(10\,\mathrm{ \%}\) at most. Assuming that the number of collision events of particles with a detector within the dead time of the ASIC obeys the Poisson distribution, we set the maximum processable count rate to \(1\times {10}^{7}/\mathrm{s}\) for the proposed ASIC-based amplifier.

Design of high-speed current detection circuit

We aim to greatly reduce the required resources of the circuits for particle measurements onboard satellites by developing an amplifier (hereafter referred to as the high-speed current detection circuit) for TOF measurements based on ASIC technology, which allows us to integrate the circuits into a single chip.

Figure 3 shows a block diagram of the high-speed current detection circuit. The circuit consists of a current pulse amplification circuit and a comparator. The first block amplifies an input pulse and converts it into a voltage signal. The comparator discriminates detection signals from noise and generates signals that are detectable by a TDC. The circuit is designed such that it can respond to an input current pulse with a duration of \(1\,\mathrm{ ns}\).

Fig. 3
figure 3

Block diagram of high-speed current detection circuit. One channel of the high-speed current detection circuit consists of a current pulse amplification circuit and a comparator

The chip was developed using a complementary metal-oxide semiconductor (CMOS) \(0.25 \,\mathrm{\mu m}\) mixed-signal process by Taiwan Semiconductor Manufacturing Co., Ltd. The physical layout of one channel of the high-speed current detection circuit is shown in Fig. 4. The size of the current detection circuit is \(530\,\mathrm{ \mu m} \times 210 \,\mathrm{\mu m}\). When we create a \(4\times 8\) circuit array with the high-speed current detection circuits, the total size becomes \(2120\,\mathrm{ \mu m }\times 1680\,\mathrm{ \mu m}\)/32 channels.

Fig. 4
figure 4

Physical layout of the proposed high-speed current detection circuit

Design of current pulse amplification circuit

A schematic diagram of the current pulse amplification circuit is shown in Fig. 5a. The circuit, which is powered by a single supply voltage of \(+3.3 \,\mathrm{V}\), consists of a bias circuit and main amplifier circuits. The bias circuit provides the gate voltage for CMOS transistors M1 and M2 in the main amplifier circuits. The main circuits receive an output pulse from an MCP at the input terminal \({V}_{\mathrm{in}}\) and amplify them with CMOS transistors M3 and M4. The output terminal \({V}_{\mathrm{out}\_\mathrm{amp}}\) is directly connected to the input of the comparator in the next stage. The CMOS parameters of the bias circuit are set such that the offset voltage of the input terminal \({V}_{\mathrm{in}}\) is \(1.0\) to \(1.65 \,\mathrm{V}\), because the offset voltage at the input and output terminals should be half of the power supply voltage (\(+3.3 \,\mathrm{V}\)) to achieve a wide dynamic range for the main amplifier circuits. The CMOS transconductance increases with the CMOS drain current. The drive current \({I}_{\mathrm{ref}}\) for the bias circuit is thus set to a maximum of \(100 \,\mathrm{\mu A}\), which provides operation in the saturation region for all of the CMOS transistors.

Fig. 5
figure 5

Schematic diagrams of the current pulse amplification circuit and the comparator. a The current pulse amplification circuit consists of a bias circuit and main amplifier circuits. The input impedance of the main amplifier circuits is set to about 50 Ω. The drive current \({I}_{\mathrm{ref}}\) for the bias circuit is represented by the brown arrow. The bias output (\({V}_{\mathrm{b}1}\) and \({V}_{\mathrm{b}2}\)) provides the gate voltage to CMOS M1 and M2, which determines the operating point for the amplification circuits. M3 and M4 amplify the input pulse and output signals to the \({V}_{\mathrm{out}\_\mathrm{amp}}\) terminal. b The main circuit of the comparator consists of three blocks. 1. Differential input circuit (M6 and M8) with an active load (M5 and M7). The \({V}_{\mathrm{in}\_\mathrm{com}}\) terminal is connected to the output of the current pulse amplification circuit (i.e., “\({V}_{\mathrm{out}\_\mathrm{amp}}"\) terminal). The reference voltage for this comparator is applied to the \({V}_{\mathrm{ref}}\) terminal. 2. Amplification stage for improving gain. 3. Inverter as a buffer circuit with low output impedance. The output of the comparator comes from the \({V}_{\mathrm{out}\_\mathrm{com}}\) terminal

We take \(50\,\Omega\) as the input impedance of the current pulse amplification circuit to match the input impedance to the characteristic impedance of the coaxial cable that connects an MCP to a chip. The input impedance is mainly determined by the combined on-resistance (\({r}_{\mathrm{combined}}\)) of CMOS transistors M1 and M2. An arbitrary \({r}_{\mathrm{combined}}\) value can be obtained by selecting the channel width of M1 and M2. We conducted computer simulations to determine the relationship between \({r}_{\mathrm{combined}}\) and the circuit response under the constraint that the total input impedance should be \(50\,\Omega\). In the simulations, we installed the same main amplifier circuits in parallel to realize an input impedance of \(50\,\Omega\) for various values of \({r}_{\mathrm{combined}}\). The simulated value of \({r}_{\mathrm{combined}}\) required to achieve a rise time of close to \(1\,\mathrm{ ns}\) was \(2\,\mathrm{ k\Omega }\), which requires \(40\) main amplifier circuits to obtain an input impedance of \(50\,\Omega\).

Comparator design

The output signals of the current pulse amplification circuit are fed into a comparator in the next stage, as shown in Fig. 3. The comparator discriminates the input current from noise with the reference voltage \({V}_{\mathrm{ref}}\). Figure 5b shows a schematic diagram of the comparator circuit. The comparator has a typical configuration that consists of a differential input, an amplification stage, and a buffer circuit. To determine the CMOS parameters, it was necessary to take into account an appropriate range of the input common-mode voltage \({V}_{\mathrm{CM}}\) for the comparator. As described in Sect.  3.1, the offset voltage for the current pulse amplification circuit was designed to be \(1.0\) to \(1.65 \,\mathrm{V}\). However, the offset voltage varied by several hundred millivolts due to variations in the characteristics of the CMOS transistors caused by manufacturing errors. Therefore, a wide range of \({V}_{\mathrm{CM}}\) was required for the comparator. We set the CMOS parameters to accomplish the \({V}_{\mathrm{CM}}\) range of \(0.65\) to \(2.65 \,\mathrm{V}\).

Performance of high-speed current detection circuit

This section describes the performance of the designed chip based on the results of laboratory experiments. Figure 6 shows a schematic view of the experimental configuration. The MCP was irradiated by ions emitted from an ion source in a vacuum chamber. The electron cloud released from the MCP was collected by the anode and became a current pulse. Termination with a \(50\,\Omega\) resistance was applied to both ends of the transmission line between the anode and the input of the high-speed current detection circuit (the circuit side was designed to have an internal input impedance of \(50\,\Omega\)). Note that we used the thermostat chamber in Fig. 6 only when we evaluated the temperature dependence of the chip performances.

Fig. 6
figure 6

Measurement configuration used to evaluate the performance of the designed chip. The MCP is installed inside a vacuum chamber. When an ion hits the MCP, a current pulse is emitted from the anode and fed into the chip. Three monitoring points are indicated by circles: the input of the current pulse amplification circuit (CHIP IN), the output of the current pulse amplification circuit (AMP OUT), and the output of the comparator (COMPARATOR OUT). When measuring the temperature dependence of the amplifier performances, we placed the chip in the thermostat chamber and varied the temperature from \(-20\) to \(60\,^\circ{\rm C}\)

Current pulse amplification circuit

Figure 7a and b shows waveforms measured at monitoring points CHIP IN (input) and AMP. OUT (output), respectively (see Fig. 6). Figure 7c is a magnified view of Fig. 7b, focusing on the period of 5 to 10 ns. In Fig. 7, the input and output waveforms obtained with different input pulse heights are superimposed so that the peak timing for all input pulses is set to zero. The rise timings for the output waveforms are not significantly affected by the input pulse height, and thus the temporal variations of the output waveforms around \(1.08\,\mathrm{ V}\) (threshold voltage of the comparator input at the next stage) are suppressed to be less than \(1\,\mathrm{ ns}\) (see Fig. 7c). Secondary peaks appear in the input signals shown in Fig. 7a. They are the input signals reflected at the terminal of the chip due to the impedance mismatch of the current pulse amplification circuit. Although the input impedance of the chip was designed to be \(50\,\Omega\), it was difficult to achieve precise impedance matching for the actual chip because of ASIC manufacturing errors. Since the reflected pulse was absorbed to ground at the anode through the termination resistance of \(50\,\Omega\), the reflection had no effect on the output of the current pulse amplification circuit.

Fig. 7
figure 7

Measured response of the current pulse amplification circuit. Waveforms were measured at the monitoring points (see Fig. 6). The time axis is defined so that the peak timing of the input waves is at 0 s. a Input pulse measured at CHIP IN, b output waveform measured at AMP. OUT, and c magnified view of panel b focusing on \(5\)-\(10\,\mathrm{ ns}\). Seven waveforms in panel a show examples of input pulse heights from \(35\,\mathrm{ mV}\) to \(200\,\mathrm{ mV}\), which include the highest one (i.e., the purple line) among all the measured waveforms. Each waveform in panels b and c corresponds to the waveform of the same color in panel a. In panel a, the wave reflected at the input terminal of the chip appears; it does not appear in panel b because it is absorbed at the MCP side. The timing variation of the cross-points between the output rising waveforms and \(1.08\,\mathrm{ V}\) is less than \(1\,\mathrm{ ns}\) (see panel c)

Comparator

The comparator receives the output of the current pulse amplification circuit. The comparator discriminates the output signal of the current pulse amplification circuit from noise with the reference voltage \({V}_{\mathrm{ref}}\). The output of the current pulse amplification circuit shown in Fig. 7b had an offset of \(1.0\,\mathrm{ V}\); the minimum pulse height was approximately \(1.2 \,\mathrm{V}\). Consequently, we set \({V}_{\mathrm{ref}}\) to \(1.22\,\mathrm{ V}\) to detect almost all input signals to the chip. Note that the reference voltage for the comparator was \(1.22\,\mathrm{ V}\) (not \(1.08\,\mathrm{ V}\)) because there was an offset at the comparator differential input terminal. Figure 8b shows the response of the comparator observed at monitoring point COMPARATOR OUT (see Fig. 6) when the current pulses shown in Fig. 8a were input to the ASIC and \({V}_{\mathrm{ref}}\) was fixed at \(1.22 \,\mathrm{V}\). The blue line (the height of the input pulse to the ASIC is \(230\,\mathrm{ mV}\)) represents the case where the signal from the MCP was the strongest and the yellow line (the height of the input pulse is \(85\,\mathrm{ mV}\)) represents the case where the signal from the MCP was the weakest among the signals that could be detected by the comparator. The area highlighted in red in Fig. 8b shows the typical LVTTL threshold voltage range. The fluctuation of the rising output timing, except for the case where the height of the input pulse to the comparator is close to \({V}_{\mathrm{ref}}\) (purple line), is less than \(1.2\,\mathrm{ ns}\) in the range of \(0.8\) to \(2.0\,\mathrm{ V}\), which is slightly below the performance requirement. However, considering that the time resolution required for the LEPi is above \(1.6\,\mathrm{ ns}\), as described in Sect.  2, this ASIC-based amplifier can still be used for TOF-based mass analysis. Here, it is necessary to distinguish the case where the pulse height of the comparator output is less than \(3.3 \,\mathrm{V}\) such as the purple line in Fig. 8b from the other patterns, since the time variation of the comparator output is much more than \(1 \,\mathrm{ns}\) when the input pulse height is close to \({V}_{\mathrm{ref}}\). One possible solution is to apply two comparators with different \({V}_{\mathrm{ref}}\) values at the output of the current pulse amplification circuit. We could distinguish input signals with a pulse height of close to \({V}_{\mathrm{ref}}\) if we applied a higher \({V}_{\mathrm{ref}+}\) for the additional comparator.

Fig. 8
figure 8

Measured response of the comparator. Waveforms were measured at the monitoring points (see Fig. 6). a Input pulse measured at CHIP IN and b output waveform measured at COMPARATOR OUT. The time axis is defined so that the peak timing of the input waves is at 0 s. Each waveform in panel b corresponds to the waveform of the same color in panel a. In the threshold voltage range of LVTTL, the rising timing difference of the comparator output waveforms fluctuates by up to \(1.2\,\mathrm{ ns}\)

We conducted an experiment to measure the temperature dependence of the developed amplifier in terms of the detectable input level, sensitivity, and time walk. The experimental configuration is shown in Fig. 6. We varied the temperature inside the chamber from \(-20\) to \(60\,^\circ{\rm C}\) in \(20\,^\circ{\rm C}\) steps and measured the input/output waveforms for the chip. Note that the comparator reference voltage was consistent throughout this experiment.

Figure 9 shows the input and output waveforms measured at different temperatures. We selected 5–6 waveforms at each temperature, including that with the strongest input signal (pulse height: about \(200 \,\mathrm{mV}\)) and that with the weakest one, where the output pulse height for the comparator was almost equal to the supply voltage (\(+3.3\,\mathrm{ V}\)). These waveforms are superimposed so that the peak timings of the input waveforms are at 0 s. If we define the detectable input level for the amplifier as the lowest input pulse height when the comparator output reaches the supply voltage, the temperature dependence of the input level changes as shown in Fig. 10a. To obtain the temperature dependence of the sensitivity of this amplifier, we selected two output waveforms in order of decreasing pulse height at each temperature from Fig. 9. We have calculated input charge assuming the input impedance of the high-speed current detection circuit to be 50 Ω. Using the measurement results of input voltage to the chip (shown in Fig. 9), we can obtain the amount of charge flowing from the MCP into the chip at each measurement time. We have derived the total amount of input charge by integrating the amount of charge over the duration of the input pulse. The results regarding the calculated sensitivity of the amplifier are shown in Fig. 10b. The sensitivity improves with increasing temperature, which is consistent with the results in Fig. 10a, where the detectable input level decreases with increasing temperature. The temperature dependence of the time walk (i.e., rising timing difference of the comparator output) is shown in Fig. 10c. Note that comparator output waveforms with pulse heights below the supply voltage were excluded. The time walk at each temperature shown in Fig. 10c was estimated from the maximum value of the time walk in the LVTTL threshold voltage range (\(0.8\) to \(2.0 \,\mathrm{V}\)). Figure 10c shows that the amplifier achieves the required timing resolution (≤ 1.6 ns) to perform TOF measurements in the temperature range of \(-20\) to \(60\,^\circ{\rm C}\).

Fig. 9
figure 9

Input/output waveforms measured at \(-20\) to \(60\,^\circ{\rm C}\). 5–6 waveforms measured at each temperature are superimposed so that the peak timing of the input waveforms is at 0 s. These waveforms show examples of input pulse heights of about \(200\), \(180\), \(150\), \(120\), and \(90 \,\mathrm{mV}\) and the weakest signal that can be detected by the comparator, respectively. For the experiments conducted at \(-20\,^\circ{\rm C}\), the comparator could not detect input signals with a pulse height of below \(90\, \mathrm{mV}\); these signals are thus not shown in panel a

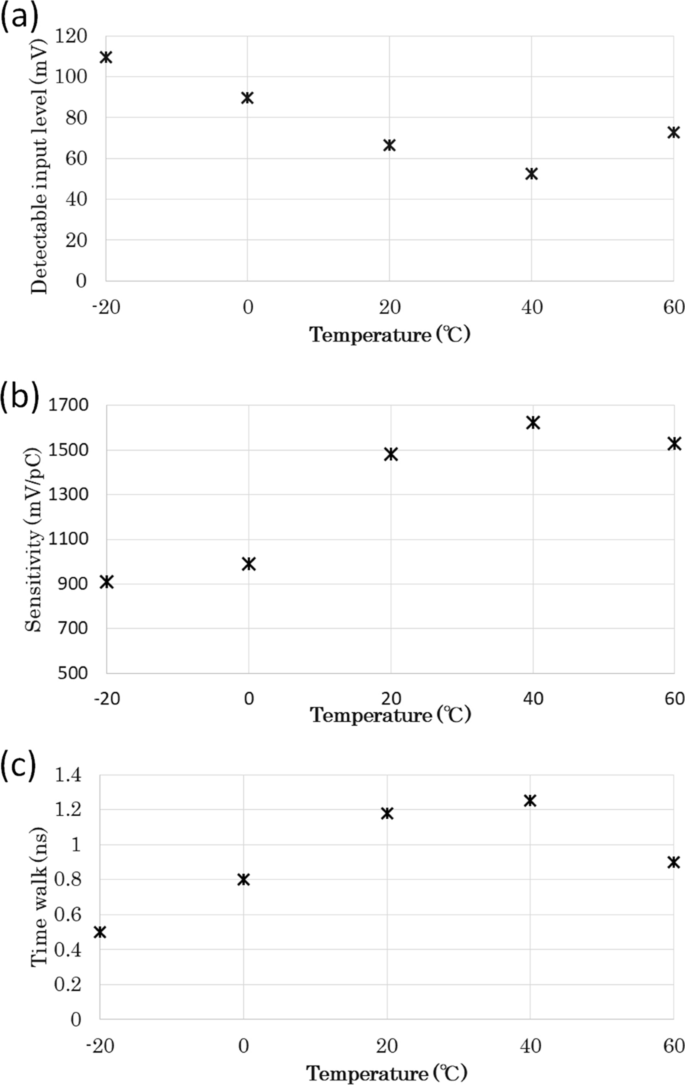

Fig. 10
figure 10

Temperature dependence of the developed amplifier in terms of the detectable input level, sensitivity, and time walk. a The temperature dependence of the detectable input level, which is the lowest input pulse height that the comparator can detect. b The temperature dependence of the sensitivity (mV/pC). The values are the averages of the sensitivities obtained from two output waveforms in order of decreasing pulse height at each temperature from Fig. 9. c The temperature dependence of the time walk measured in the LVTTL threshold voltage range (0.8–2.0 V). Comparator output waveforms with pulse heights below the supply voltage were excluded

The time interval between the arrival of the input pulse and the end of the output pulse is less than \(45 \,\mathrm{ns}\), which means that the comparator returns to its initial state within \(45 \,\mathrm{ns}\) from the arrival of the input signals to the chip. Thus, the maximum count rate detectable by the high-speed current detection circuit is more than \(2\times {10}^{7}\)/s, which is higher than the target count rate (\(1\times {10}^{7}\)/s).

Conclusion

We developed an ultra-small high-speed current detection circuit based on ASIC technology for satellite-borne instruments for space plasma measurements. The current detection circuit amplifies the feeble electron cloud coming from an MCP so that a TDC can perform TOF calculations. The measured sensitivity \(1.5 \,\mathrm{V}/\mathrm{pC}\) is comparable with the sensitivity \(1 \,\mathrm{V}/\mathrm{pC}\) of commercially available preamplifiers of a significantly larger size. The estimated area of the developed current detection circuit with 32 channels is \(2120\, \mathrm{\mu m}\times 1680 \,\mathrm{\mu m}\), which allows the circuit to be integrated into a \(15 \,\mathrm{mm}\) square package. Laboratory experiments show that the developed circuit can respond to an MCP signal with a timing variation of better than \(1.2\, \mathrm{ns}\), making it applicable to TOF calculations. In addition, the signal processing rate can be more than \(2\times {10}^{7}\) signals per second since the time interval between the arrival of the input pulse and the end of the output pulse is less than \(45 \,\mathrm{ns}\). The developed circuit can be used for conventional TOF-based ion energy-mass spectrometers for space plasmas. The reduction of instrument size will contribute to the future realization of simultaneous multi-point measurements of space plasmas.

Availability of data and materials

The datasets used and analyzed in the current study are available from the corresponding author on reasonable request.

Abbreviations

ASIC:

Application-specific integrated circuit

TOF:

Time-of-flight

MCP:

Microchannel plate

ESA:

Electrostatic energy-per-charge analyzer

LEPi:

Low-energy particle experiment-ion mass analyzer

TDC:

Time-to-digital converter

CMOS:

Complementary metal-oxide semiconductor
