Quality over quantity: on workflow and model space exploration of 3D inversion of MT data


3D inversions of magnetotelluric data are now almost standard, with computational power now allowing an inversion to be performed in a matter of days (or hours) rather than weeks. However, when compared to 2D inversions, these are still very computationally demanding. As a result, 3D inversions are generally not subjected to as rigorous testing as a 1D or 2D inversion would be, which has implications when these models are used for geological interpretation. In this study, we explore the parameter space for inversion of continent-scale datasets. The generalisations made regarding the effects of each parameter should also be scalable to smaller surveys and will enable MT practitioners to optimise their results. We have performed testing on a subset of the South Australian component of the eventual Australia-wide AusLAMP (Australian Lithospheric Architecture Magnetotelluric Project). The subset was inverted with different parameters, model setup and data subsets. Specifically, results from testing of the model covariance, the resistivity of the prior model, the inclusion of 'known' information into the prior model, the model cell size, the data components inverted for and the damping parameter \(\lambda \) were all investigated. In our testing of the 3D inversion software, ModEM3DMT, we found that the resistivity of the starting/prior model had significant effect on the final model. Careful selection of initial \(\lambda \) value can aid in reducing computational time whilst having a negligible effect on the resultant model, whilst large covariance values and model cell sizes enhanced conductive features at depth.


The electrical resistivity structure of Earth is 3D. In a sedimentary basin, it often approximates to 1D. If geological structures have consistent strike direction across a region such as a long fault plane, maybe it approximates to 2D resistivity structure. More often than not, however, the geological structures are complex, and even if careful consideration of electromagnetic survey layouts is taken, e.g. measurements taken perpendicular to the strike direction, the data will inevitably be 3D in places. With the advance in 3D inversion codes and more readily available high-performance computing facilities, magnetotelluric (MT) surveys are now commonly collected in arrays rather than transects and thus need to be inverted using a 3D code. Additionally, where transects are collected, it is now becoming more commonplace to invert using a 3D inversion code to allow for three-dimensionality of data (e.g. Robertson et al. (2016); Meqbel et al. (2016)).

Ideally, ensembles of models from stochastic inversion methods will provide a variety of solutions that fall within the acceptable array of model parameters (Muñoz and Rath 2006). This is available in 1D (e.g. Cerv et al. 2007), or in 2D (e.g. Chen et al. 2012), but these types of probabilistic methods are difficult to realise in three dimensions due to the very expensive computational nature of this process when performing hundreds or even thousands of inversions. For now, deterministic methods are standard in 3D, and thus, it is vital that we have the highest level of assurance that the model we present is robust, or at the very least we know which features the model is sensitive to (i.e. required by the data).

This becomes critical when the models are used for quantitative geological interpretations such as calculating melt or fluid percentage, or determining the cause of a conductor (sulphides, graphite, hydrogen, etc.). To ensure interpretations are accurate, the range of resistivity values that could apply to a given feature should be considered in the interpretation, and an exploration of the model space is needed to determine these ranges. Various model resolution and sensitivity testing has occurred in 3D magnetotelluric inversions (see Miensopust 2017, for a comprehensive summary of these). When a preferred model is chosen, specific features are generally tested in a number of ways such as removing the feature in question and letting the inversion run for a few more iterations to see whether it returns or locking cells to certain values and seeing whether there is an effect on the model fit, etc. (e.g. Kelbert et al. 2012; Yang et al. 2015). Before one settles on a preferred model, there are a lot of parameters that can be tested, e.g. varying the model smoothing parameters, the starting resistivity, the inclusion of a priori information, the components inverted (e.g. full impedance tensor or off-diagonals only, the tipper, the phase tensor, etc.), the cell size, the method of error calculation and the error floors or the interstation sampling rate (e.g. inverting every second site). Testing all of these parameters is time-consuming and impractical in cases where significant computational time is not available, or model results are required quickly.

A thorough overview of how data errors, data components inverted and grid rotation affect 3D inversion has been conducted by Tietze and Ritter (2013), and a recent review of 3D modelling in practice by Miensopust (2017) exists, along with an investigation into some ModEM3DMT parameters (Slezak et al. 2019); however, as of yet, an in-depth overview of the many other modelling parameters that affect the resultant model is not available, and some of these will be investigated throughout this manuscript, specific to the 3D inversion code, ModEM3DMT.

We present recommendations for modelling MT arrays using the inversion code ModEM3DMT (Egbert and Kelbert 2012; Kelbert et al. 2014), tested by performing many 3D inversions on AusLAMP data in northeast South Australia (Fig. 1). AusLAMP is the Australian Lithospheric Architecture Magnetotelluric Project, which aims to provide a 3D image of the electrical resistivity distribution of the crust and mantle beneath the Australian continent by acquiring long-period MT data at approximately 2800 sites across Australia at half-degree intervals (approximately 55 km).

Fig. 1
figure 1

Left: AusLAMP long-period MT site deployed locations (black) across Australia. Sites used in this study are red. Right: AusLAMP long-period MT site deployed locations (black) and intended locations (white) over topography in South Australia. The red sites were used in the 3D modelling presented in this study. The survey area is outlined in blue. The grey lines show the locations of the cross sections used for visualising modelling results in later figures

We aim to explore the model space, showing how varying selected modelling parameters and starting models affect the resultant model. We intend to provide direction on what may significantly affect the resultant model, and in doing so, this may give the reader an indication of which types of inversion configuration they can run to get the best resultant model for their data.

The MT dataset used in these tests is comprised of 123 long-period MT sites, across a \(\sim\) 55 km spaced array covering an area of 350 (east–west) × 700 (north–south) km. Various testing was done including varying the initial damping value, a trade-off between data misfit and model regularisation (\(\lambda \)), incorporating a highly conductive mantle beneath the 410 km and 660 km seismic discontinuities, altering the resistivity of the half-space (that includes conductive ocean), varying the model covariance, the model horizontal cell size and lastly the data components (impedance tensor and tipper) included in the inversion.


The long-period MT data used for this investigation were mostly collected from November 2016 to July 2017 in the northeast AusLAMP acquisition project, but also utilised two rows of AusLAMP data south of the northeast project region, which have previously been modelled (Robertson et al. 2016). The total number of sites was 123 (including 120 AusLAMP sites and three legacy sites), and the data were processed using BIRRP (Chave and Thomson 2004), remote referenced using simultaneously recording sites (Gamble et al. 1979). The sites recorded five components (Ex, Ey, Bx, By and Bz) using non-polarisable Pb–PbCl electrodes and a fluxgate magnetometer with a sampling rate of 10 Hz. Each site was left out for about 3 weeks and provided frequency-domain data over a period range of approximately 5–20,000 s, with 10–16,000 s (23 periods) inverted for the impedance tensor and 10–9000 s (21 periods) used for the tipper (as the planar wave approximation fundamental to the magnetotelluric theory starts to break down at longer periods). All inversions presented were performed using the parallelised nonlinear conjugate gradient (NLCG) algorithm of ModEM3DMT (Egbert and Kelbert 2012; Kelbert et al. 2014), which aims to minimise the penalty function:

$$\begin{aligned} {\Psi } {(m,d)} = {(d-f(m))}^{\text{T}}{C}_{\text{d}}^{{-1}} {(d-f(m))} + {{\lambda }} {(m-m}_{\text{prior}} )^{{T}}{C}_{\text{m}}^{{-1}}{(m-m}_{\text{prior}}) \end{aligned}$$

where d is the observed data, m the conductivity model, f(m) the forward response of m, C\(_{{d}}\) the data covariance, m\(_{\text{prior}}\) the prior model, C\(_{{m}}\) the model covariance and \({{\lambda }}\) the damping parameter, a trade-off parameter between data misfit and model structure. The code penalises smoothed deviations from a prior model, with a spatial covariance where small-scale features are more heavily penalised. The inversions were run on Raijin, a high-performance computational facility of the National Computational Infrastructure (NCI), in parallel across 48 cores. (Optimal number of cores is equal to twice the number of periods inverted + 1.) The model parameters that are generally unchanged (unless specified) whilst other parameters were investigated are as follows. Where the X direction is N–S, and the Y direction is E–W, the number of cells is 54 (X) × 104 (Y), plus 15 padding cells (with a size increase factor of 1.3) in each direction, totalling 96 × 132 cells. The horizontal cell size is 7500 × 7500 m, resulting in a model size of 2899 (X) × 3275 (Y) km, with only 350 (X) × 700 (Y) km of that as the survey area (the area which includes MT sites). The vertical (Z) thickness begins at 25 m with 75 layers increasing by a factor of 1.135 to a total depth of 2467 km. The survey area is mostly covered by deep sedimentary basins, usually associated with low static shift in the Australian environment. Most sites are unaffected by static shift, and it is intended that the very thin near-surface layers will account for those sites that do exhibit static shift effects caused by near-surface inhomogeneities of the data. The ocean is incorporated (bathymetry from with a resistivity of 0.3 \(\Omega \)m along with underlying sediments with resistivity of 0.3 \(\Omega \)m linearly increasing to the background resistivity for 2 km beneath the base of the ocean. The resistivity of the sediment layer is not fixed. From previous experience of modelling AusLAMP data, we chose to start exploring the model domain by using a smoothing parameter (covariance value) of 0.4 in X, Y and Z directions. The covariance is applied on a cell basis rather than a distance basis, where larger values favour larger scale variations and/or smaller contrasts. Error floors for all testing are 3% of \(\sqrt{|{Zxy} * {Zyx}|}\) for the off-diagonal components, Zxy and Zyx, 7% of \(\sqrt{|{Zxy} * {Zyx}|}\) for Zxx and Zyy and 0.01 for the respective tipper components, Tzx and Tzy. The starting \(\lambda \) is 10.

Results and discussion

For each test, the preferred parameter was chosen based on a number of criteria; firstly, whether the overall RMS is within 10% of the lowest overall RMS from the inversions included in that test. Inversions could subsequently be excluded based on visual appearance, such as a very speckled model or a distinct lack of model heterogeneity with depth. Lastly, a parameter is introduced as a measure of the variance of the RMS both between the data subsets used in the inversion (RMS of Z and T, RMS\(_{\text{all}}\); RMS of Z only, RMS\(_{Z}\); RMS of T only, RMS\(_{T}\)) and the variance of the RMS with period, represented by the RMS per decade (RMS divided into period range of 10–100, 100–1000 and 1000–10,000 s for each component (Z + T, Z, T)), with a desire to minimise the variance of these values so that the most equal weighting of the data components, and the data across the entire period range, can be found. The RMS variance parameter RMS\(_{\text{var}}\) is defined as follows:

$$\begin{aligned} {\text{RMS}}_{\text{var}}=0.25*({\text{RMS}}_{\text{OAvar}}+ {\text{RMS}}_{10-100{\text{var}}}+ {\text{RMS}}_{100-1000{\text{var}}}+{\text{RMS}}_{1000-10,000{\text{var}}}) \end{aligned}$$


$$\begin{aligned} {\text{RMS}}_{\text{OAvar}}=100*|({\text{RMS}}_{Z}-{\text{RMS}}_{T})|/{\text{RMS}}_{\text{all}} \end{aligned}$$

and RMS\(_{x-y{\text{var}}}\) are calculated the same as RMS\(_{\text{OAvar}}\) except for over a limited bandwidth where x and y are the minimum and maximum period of the decade. Whilst these criteria were used to select our preferred parameter, we did not always use the preferred parameter in further testing, usually to minimise computational time [referred to herein in KSU, where 1 KSU is one thousand service units (or 1000 h) on supercomputer Raijin] for subsequent tests.

Initial damping parameter—\(\lambda \)

A user-defined variable in the inversion process is the initial damping parameter, \(\lambda \). As \(\lambda \) decreases throughout the inversion, the model progressively fits the data better with smaller scale structures and larger conductivity contrasts. The user can define an initial (\(\lambda \)) value along with a \(\lambda \) exit value (default 1.0e−8) that when reached, causes the inversion to exit. This is usually the cause of an inversion exit unless the target RMS is reached (default 1.05). When the RMS decrease per iteration is less than a certain value (default 1.0e−3), then \(\lambda \) is decreased by a user input divisor (default 10), and this process is repeated until the \(\lambda \) exit value is reached. This process ensures that the orthogonality of the search direction vector is maintained and allows the algorithm to escape from a local minimum (Meqbel et al. 2016). An initial damping parameter of 1, 10, 100 and 1000 was tested (with \(\lambda \) exit value and divisor kept as default), with the results outlined in Figs. 2 and 3. The starting resistivity for these tests was 100 \(\Omega \)m. We have given the RMS as the resultant overall RMS and as the RMS per decade. The RMS per decade is the RMS for a period range of 10–100 s, 100–1000 s, and 1000 and 10,000 s, to give an indication of how the models are fitting the shortest, intermediate and longest periods. Generally speaking, 10–100 s incorporates periods where each station cannot fully sense the adjacent station (resulting in the 'speckled' appearance of the shallow domain in some models); 100–1000 s is roughly crustal depths; and 1000–10000 approximates mantle depths and controls the deep features in the model. The RMS and RMS per decade for these models are similar (Fig. 2) with \(\lambda \) of 10 slightly higher (overall RMS 14% larger than the minimum RMS). Visually, the inversions look similar. The ideal starting \(\lambda \) was deemed to be 1, obtaining the lowest RMS of 1.74 after 169 iterations, having the lowest RMS\(_{\text{var}}\) indicating the best distribution of model fit across the period range and individual data components. Additionally, the inversion converged in 49 less iterations than that of \(\lambda \) 1000. However, a \(\lambda \) of 10 took only 152 iterations with an RMS of 1.98 and was used for further testing, significantly reducing computational time in further tests.

Fig. 2
figure 2

Summary of overall RMS, and RMS per period decade, for models testing the initial \(\lambda \) for 1000, 100, 10 and 1. The number of KSU used for each inversion and the RMS\(_{\text{var}}\) are also displayed with values on the right vertical axis

Fig. 3
figure 3

Three east–west cross sections (top row), a north–south cross section (bottom left) and a depth slice at 42 km (bottom right) through the models where all model setup and parameters were identical except \(\lambda \) = 1000, 100, 10 and 1 from top to bottom. The locations that the cross sections are extracted from are shown as grey dashed lines in the bottom right panel

Known resistivities

We test the hypothesis that the incorporation of known resistivities into the prior model returns a better model than using a half-space and/or may reduce the number of iterations required. By known, we mean information that is reasonably and consistently inferred from other geophysical datasets. To do this, we used a half-space (no ocean) with resistivity of 100 \(\Omega \)m and covariance of 0.4 to compare to models with one individual known feature added at a time. The known features are as follows: bathymetry (with ocean resistivity of 0.3 \(\Omega \)m), 10 \(\Omega \)m resistivity beneath the 410 km seismic discontinuity and 1 \(\Omega \)m resistivity beneath the 660 km seismic discontinuity. The inclusion of these features is described in more detail in the following sections, and the inversions are summarised in Table 1 and plotted in Figs. 4 and 5.

Table 1 Information that is included in the prior model for four different inversions
Fig. 4
figure 4

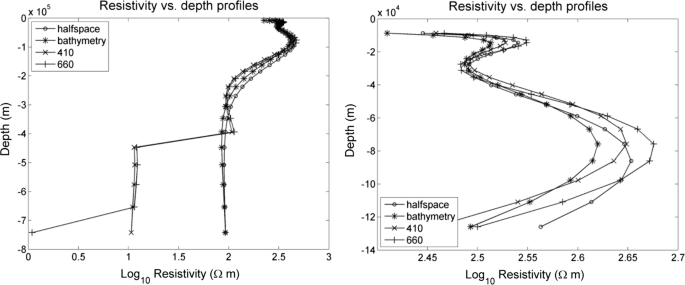

The averaged resistivity values taken from the inversions with different resistivities for the various prior models for depths of 10 to 750 km (left) and 10 to 140 km (right)

Fig. 5
figure 5

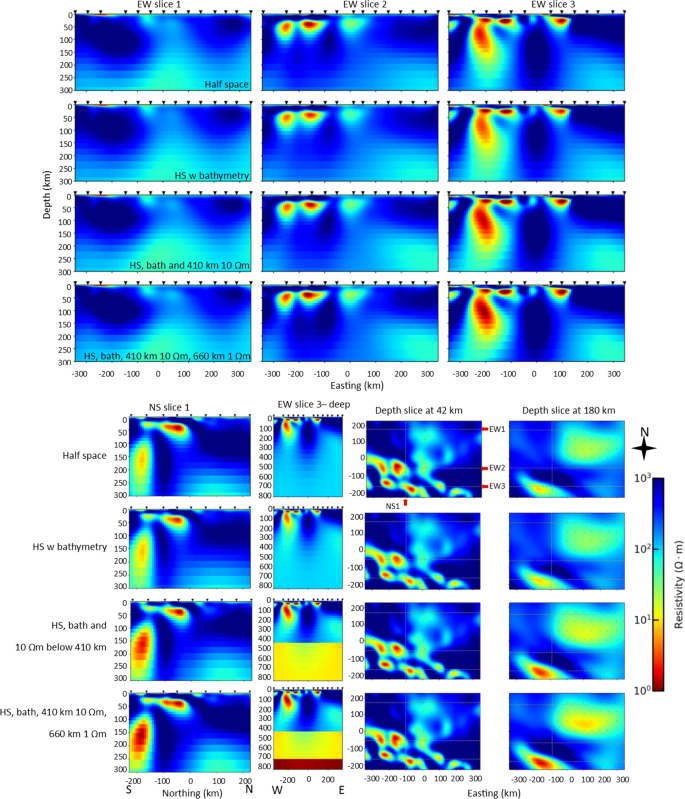

Comparison of models with prior information included in the starting model. Top panel: three east–west cross sections taken through the four models outlined in Table 1. Locations of these cross sections are shown as grey dashed lines in the bottom panel on the depth slices. Bottom panel, left to right: NS slices through the four models; EW slice 3 down to a depth of 800 km to show the deep mantle conductivity; depth slice at 42 km with cross-section locations shown as grey dashed lines; depth slice at 172 km with cross-section locations shown as grey dashed lines


It is commonplace in 3D magnetotelluric inversion to include bathymetry in the prior model. Sea water has a very low resistivity of about 0.3 \(\Omega \)m and thus generally is in stark contrast with the much more resistive lithosphere. The existence of sea water around the survey area also severely affects observed MT responses, known as the geomagnetic coast effect (Parkinson and Jones 1979). The sea has a substantial influence on observed MT data particularly when the separation distance from the coast is smaller than the skin depth of the frequency of interest. The skin depth of a typical long-period MT survey (such as this study) can readily reach up to a few hundred kilometres, so ocean effects can be noticeable over quite some distance. However, the closest point of the survey area to the ocean is about 200 km and the inclusion of bathymetry had little effect on the resultant inversion with the RMS remaining similar (9% increase from 1.82 to 1.98), and the inversions visually are almost identical. The inversion converged with 10 less iterations than the half-space starting model inversion.

Mantle discontinuities 410 and 660 km

Seismic models around the world reveal an abrupt increase in seismic velocity at a depth of 410 km—a result of the transition from olivine to wadsleyite (Shearer and Flanagan 1999). This transition additionally shows a decrease in resistivity to 10 \(\Omega \)m (Huang et al. 2005; Yoshino et al. 2008). At 660 km another seismic discontinuity exists, expected as a result of a phase transition from ringwoodite to bridgmanite and periclase (Ito and Takahashi 1989; Ishii et al. 2018). Both of these transitions are associated with decreases in resistivity. To test whether it is useful to incorporate this information into the prior model, we have set the resistivity beneath 410 km to 10 \(\Omega \)m and then with 1 \(\Omega \)m beneath 660 km depth (Constable 2015; Xu et al. 2000). These resistivities were not fixed in the model.

Summary of prior models

As additional prior information is incorporated in this study, there is a small improvement on the overall model fit (with the exception of the bathymetry only model), as represented by the RMS. The cross sections and depth slices taken through the model (Figs. 4 and 5) are reasonably similar. Visually, there is little difference between the half-space model and the model with bathymetry and ocean bottom sediments, although the overall RMS increased from 1.82 to 1.98, but taking 10 less iterations. The impact of including this information is expected to be more significant if the ocean was closer to the survey area, and/or if the survey had a larger aperture. Including a conductive mantle beneath 410 km depth converged after 182 iterations, 30 more iterations than when only bathymetry information are included. The RMS decreased with this extra information but only minutely from 1.98 to 1.81. Once the even more conductive mantle beneath 660 km was added, the RMS decreased slightly again, from 1.81 to 1.71, taking 29 more iterations than the bathymetry only inversion. These two models that incorporated enhanced conductivities beneath 410 km are less resistive at depth, particularly in the southwest of the model region which can be seen in the NS slice 1 and in the averaged resistivity–depth curves (Figs. 4 and 5) The variation in RMS between all of these models is marginal, and all but one of the models (the one with bathymetry only) have an overall RMS within 10% of the model with the lowest overall RMS. Using the selection criteria outlined earlier, it is deduced that the inclusion of no prior information is the preferred model, with an RMS within 10% of the smallest overall RMS for those tested, and with the smallest RMS\(_{\text{var}}\). However, given that we expect that the inclusion of the ocean would be much more important in a survey region closer to the ocean, the second preferred model may be better, which include all of the prior information that we tested, bathymetry and reducing the prior conductivity to 10 \(\Omega \)m beneath 410 km and 1 \(\Omega \) m beneath 660 km. The model that we used for further testing was neither of these models—we instead used the bathymetry only model due to the much less computational time required for this inversion.

Starting resistivity in prior model

ModEM3DMT allows the user to input a starting model and a prior model. The prior model is a compulsory input, and by default if no starting model is given, then the model starts from the prior model. In regions of the model poorly constrained by the data (e.g. in areas outside of the survey area or at depths exceeding MT signal penetration), the resistivities usually revert to the resistivity of the prior model. No independent starting model was included in any of the tests; thus, the start model is identical to the prior model. A variety of resistivities were tested for the prior/starting model (half-space plus ocean where ocean is locked at resistivity of 0.3 \(\Omega \)m, with bathymetry taken from The land part of the model was varied to resistivity values that were evenly spaced on a log scale, 10, 31.6, 100, 316 and 1000 \(\Omega \)m (1, 1.5, 2, 2.5 and 3 on log scale). In addition, the average apparent resistivity of all data points across all sites and all periods was calculated to be 69 \(\Omega \)m, and this was used also as a prior model. Depth slices (Fig. 9) and cross sections (Fig. 10) show key features of the models.

It is difficult to determine the best resistivity for the prior model as most of the inversions fit the data similarly well (for example, the difference in overall RMS between the 10 and 69 \(\Omega \)m prior models is only 0.18, a 10 % decrease from 1.84 to 1.66), with the exception of 1000 \(\Omega \)m prior model and less so the 316 \(\Omega \)m and 100 \(\Omega \)m, which show a poorer model fit both by overall RMS and RMS per decade (Figs. 6 and 7). The misfit reduction should also be considered in this case (starting RMS-final RMS/starting RMS). The largest percentage decrease in misfit occurs for the models with the highest starting resistivity (Fig. 6). The largest range in RMS between models occurs in the 10–100 s range with RMS varying between 2.45 for 1000 \(\Omega \)m and 1.85 for 10 \(\Omega \)m. This is likely a result of the lack of sensitivity at shallow depths in between 55 km spaced stations. The skin depth for periods longer than 100 s is roughly similar or larger than the interstation spacing, and this reduces the dependency on the starting half-space. In areas of known sedimentation, a low starting resistivity near the surface where there is little to no sensitivity between stations may serve to reduce the spottiness near the surface, with the resistivity staying close to the starting resistivity, and close to the resistivity values achieved beneath the sites where there is sensitivity. Sediments within our survey region are known to have a resistivity within the range of 6 \(\Omega \)m in top 1.5 km, and 25 m in the 2 km beneath from broadband MT surveys and well resistivity logs (Didana et al. 2017). This explains the best RMS in the 10–100 s bandwidth for a 10 \(\Omega \)m starting resistivity which sits between 6 and 25 \(\Omega \)m.

Fig. 6
figure 6

The RMS per decade (10–100, 100–1000 and 1000–10,000 s) for seven different inversions with differing starting half-spaces, 3, 10, 31, 69, 100, 316 and 1000 \(\Omega \)m

Fig. 7
figure 7

The RMS, KSU (divided by ten for plotting purposes) and the RMS variance (left vertical axis) and the starting RMS (right vertical axis) for models with starting resistivity for seven different inversions with differing starting half-spaces, 3, 10, 31, 69, 100, 316 and 1000 \(\Omega \)m

The influence of the prior model on the final converged model was found to be significant, with a general trend being that the more conductive the prior/starting model, the more conductive the final model. For each converged model, the resistivities were averaged for each depth (excluding model padding cells) and are visualised in Fig. 8. By a depth of 400 km, the average resistivity is very similar to the prior model resistivity which indicates a lack of sensitivity at these depths. Similarly at shallow depths, the effect of skin depth and station spacing can be seen. The variation in averaged resistivity for the different models reflects 'residual' or leftover starting resistivity between stations that cannot be constrained by the coarse station spacing (55 km) and by the short data periods (shortest period \(\sim \) 0 s).

Fig. 8
figure 8

The averaged resistivity values taken from the inversions with different resistivities for the prior model ranging from 3 to 1000 \(\Omega \)m, for depths of 10 to 140 km (left) and 10 to 450 km (right)

The averaged resistivity of the most conductive model (3 \(\Omega \)m prior) and the most resistive model (1000 \(\Omega \)m prior) is most similar in lower crustal to shallow upper mantle depths (Moho depth \(\sim \) 36 km in most of the model region; Kennett et al. 2011) where sensitivity peaks. The smallest spread occurs around 40 km depth where the resistivity varies by 0.733log \(\Omega \)m between these models (from 3.19log \(\Omega \)m for the 1000 \(\Omega \)m prior to 2.46log \(\Omega \)m for the 3 \(\Omega \)m prior). However, if we restrict the analysis by eliminating the 316 and 1000 \(\Omega \)m (due to a significantly poorer fit of these models), the range decreases to just 0.06log \(\Omega \)m (from 2.52log \(\Omega \)m for the 100 \(\Omega \)m prior to 2.46log \(\Omega \)m for the 3 \(\Omega \)m prior). At 10 km depth, the range (again excluding 316 and 1000 \(\Omega \)m) is 0.12log \(\Omega \)m (from 2.45log \(\Omega \)m for the 100 \(\Omega \)m prior to 2.33log \(\Omega \)m for the 3 \(\Omega \)m prior), and by 100 km, the range is 0.92log \(\Omega \)m (from 2.59log \(\Omega \)m for the 100 \(\Omega \)m prior to 1.67log \(\Omega \)m for the 3 \(\Omega \)m prior). These results highlight the importance of choosing a reasonable prior model as the absolute values of the resistivity of the converged model is very dependent on the starting model. Whilst these results do not give a definitive answer of which of these models is best, we have confidence that 316 and 1000 \(\Omega \)m are too resistive as indicated by the substantially higher initial and final RMS values (Figs. 6 and 7). Averaging the apparent resistivity for every site and every period as we did with the 69 \(\Omega \)m model similar to the method of Meqbel et al. (2014) seems like a suitable approach for a ball-park resistivity for a prior model half-space with the RMS of 1.84 for this model 10% higher than the best achieved RMS of 1.66. In regions where sedimentation is known to occur, a lower starting resistivity (using the averaged resistivity across only the shortest periods) may serve to minimise the 'speckling' in shallow inversion slices; however, we note that in our tests these low starting resistivities introduce large heterogeneities in deep model slices which should be treated with caution (e.g. 172 km depth slice for 3 and 10 \(\Omega \)m models in Fig. 9).

Fig. 9
figure 9

Column 1: depth slice through inversions with 3, 10, 31, 69, 100, 312 and 1000 \(\Omega \)m prior resistivity at a depth of 42 km. Column 2: as column 1 but for a depth of 172 km. The location of the sections from Fig. 10 is shown as grey dashed lines on the right-hand column

Fig. 10
figure 10

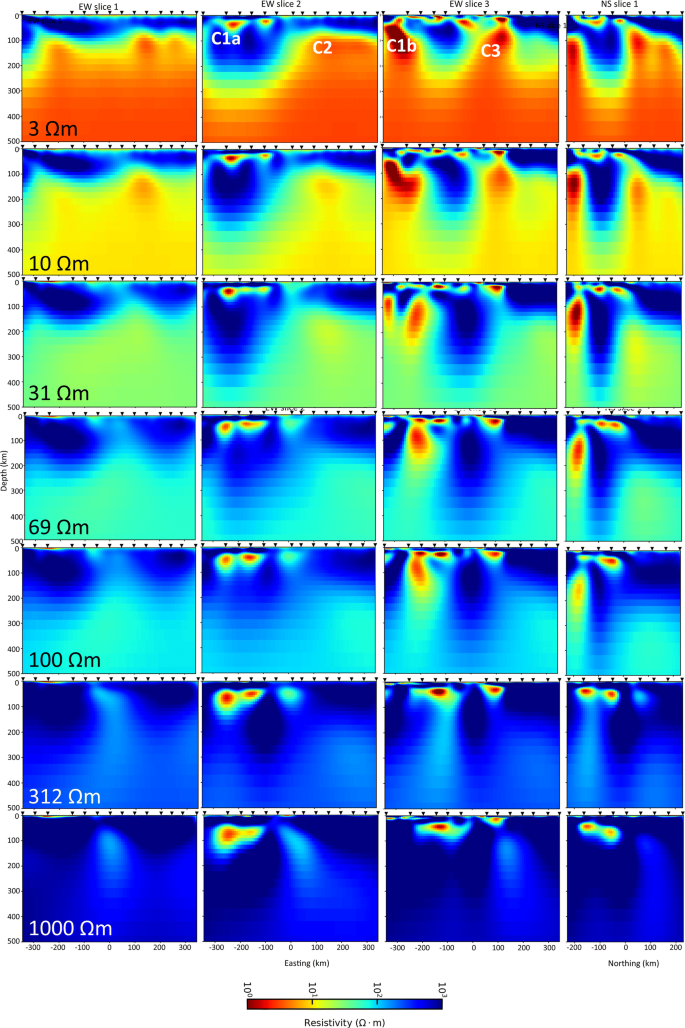

Columns 1–3: east–west cross section through inversions with 3, 10, 31, 69, 100, 312 and 1000 \(\Omega \)m prior resistivity, shown to a depth of 300 km. The location of the sections is shown as grey dashed lines in Fig. 9. Column 4: north–south transect. Conductors referred to in the text are labelled

To gain further insight from this test, the average of the best four models (each had a final RMS within 15% of the lowest RMS achieved for inversions within this test; 3, 10, 31 and 69 \(\Omega \)m) was used to calculate the average and the standard deviation of the models. The average model is not very useful information given that it is dependent on the starting resistivities that are used (e.g. if we had only run 10, 31 and 100 \(\Omega \)m models, then the average resistivity model would be a lot more conductive than when we include the higher resistivity prior models of 316 and 1000 \(\Omega \)m). However, the standard deviation provides useful information on the uncertainty of features and a snapshot of the standard deviation at depths of 42 and 172 km is shown in Fig. 11.

Fig. 11
figure 11

Average and standard deviation of ModEM inversions with prior resistivities of 10, 31.6, 69, 100, 316 and 1000 \(\Omega \)m. Black triangles are locations of MT sites. A standard deviation of 0.2 at a certain point in the model means that 68% of the data lie within 0.2 log resistivity of the average value of that cell (averaged across all starting models). For example, average value at a point = 100 \(\Omega \)m (or 2log \(\Omega \)m), St. Dev = 0.2log \(\Omega \)m, and then 68% of values lie within ± 0.2log \(\Omega \)m or between 1.8 and 2.2log \(\Omega \)m or between 65 and 160 \(\Omega \)m. The top row shows the average resistivity values (with 0.5 \(\Omega \)m contours), and the bottom row shows the standard deviation (with 0.2 contours)

Some of the main features of the model are labelled in the depth slices of Fig. 9 in the 3 \(\Omega \)m prior model. C1a is evident in all of the models (Figs. 9 and 10), whereas C3 is only distinct in the 3 and 10 \(\Omega \)m prior models. For models with 3 and 10 \(\Omega \)m prior resistivities, C1a is further north than the other models, and conductor C1b appears to the southwest. For higher starting resistivity models, the C1a feature is further south and the C1b is no longer required in the model. The southwest corner of the model is associated with the highest uncertainties at 42 km depth (Fig. 11). The location of the C1a and/or C1b is uncertain. Conductor C2 is west–northwest oriented and occurs on the edge of a transition from resistive in the southwest to the more conductive northeast of the model for inversions with priors of 31 \(\Omega \)m or less. This feature is not present in all models and as such the standard deviation here is very high in the 172 km depth slice. C3 is very conductive and situated in the mantle in the southeast of the model region. It only appears in those models with priors of 10 and 3 \(\Omega \)m or less. This region also has very high uncertainties (Fig. 11).

For subsequent inversions, we choose to use the 31 \(\Omega \)m model for the rest of the investigations; it has the lowest RMS\(_{\text{var}}\) of those models that have an overall RMS within 10% of the minimum overall RMS of all tests. Visually, this inversion was also preferred as the extremely conductive C2 and C3 features in the mantle in the 3 and 10 \(\Omega \)m prior model are less pronounced which is preferred given the high uncertainty of these features (Fig. 11). We used 31 \(\Omega \)m for further testing given that it also takes the least number of iterations.


The ModEM3DMT code penalises smoothed deviations from a prior model. The covariance controls the behaviour of the model norm, a higher covariance results in a smoother overall model with fewer small-scale and rough features which are more heavily penalised. The ModEM inversion routine has the ability to define how many times the covariance matrix is applied across the cells of the horizontal layers at the same model perturbation. For our tests, we use the value of 2, i.e. the covariance matrix is applied twice (with the exception of one test), which results in generally smoother gradients compared to applying it once. Many covariance values were tested within the possible range of values between 0 and 1 (default covariance is 0.3), where larger covariance values result in smoother models and smaller covariance values result in rougher models. Choosing the best covariance is a trade-off between fitting the data well and creating a geologically plausible model without the resistivity being too 'patchy' or too smooth. Inversions with a standard uniform covariance (with the exception of ocean cells that are fixed) of 0.1, 0.2, 0.3, 0.4, 0.5, 0.75 were tested (Table 2, Figs. 12 and 13).

Table 2 Results of covariance testing
Fig. 12
figure 12

Each row contains two electrical resistivity depth slices at 42 and 172 km for one covariance test. The eight rows correspond to the eight covariance tests mentioned including homogeneous covariance across the model of 0.1, 0.2, 0.3, 0.4, 0.5, 0.75 and 0.4 down to 10 km then 0.2 at greater depths. The grey dashed lines show the locations of the cross sections in Fig.13. The location of the MT sites inverted is shown by black dots

Fig. 13
figure 13

East–west cross section through model to a depth of 300 km with covariance of 0.1, 0.2, 0.2 with the smoothing applied once, 0.3, 0.4, 0.5, 0.75 and 0.4 to 10 km then 0.2 beneath. The locations of these transects are shown in Fig. 12

The results of these test are outlined in Table 2. The best covariance value for a dataset is largely dependent on the model cell sizes, where this choice is dictated by the MT site spacing and complexity of the data (where closer site spacing and more complex data require smaller cell sizes). For the AusLAMP dataset with 55 km site spacing, large covariances (> 0.5) cause a substantially higher RMS. Whilst the model with a covariance of 0.2 has the lowest overall RMS and RMS per decade (the averaged RMS of all sites in the inversion only for data in the period range of the specified decade; Table 2), the model has a very speckled appearance until a depth of about 35 km. We tested a covariance of 0.4 for the top 10 km, and 0.2 beneath to see whether this would encourage a closer fit of the data beneath 10 km, and a smoother, less speckled model in the top 10 km. Whilst there was not much improvement, this method may be useful, but more testing would need to be done to find the optimum depth to change covariance, or a gradual decrease in covariance with depth could be trialled, to reduce the distinct change that occurs at the transition from 0.4 to 0.2. Our approach is opposite to that preferred by Yang et al. (2015) with the Earthscope US Array data (site spacing 70 km). They found that having a decreased covariance at depths shallower than 2 km gave them optimal results with a rougher shallow structure and a slightly smoother and simpler deep structure. The models with covariances of 0.5 or greater start to lose definition in the resistivity features and increase in RMS as covariance increases (Fig. 14). The models with a covariance value of 0.2, 0.3 and 0.4 have better resolved features (less smooth). Whilst 0.2 has the lowest RMS, the model has a speckled appearance throughout the top \(\sim\) 40 km. The next lowest RMS, 0.3, has a speckled appearance down to \(\sim \) 25 km. Thus, 0.4 was chosen as the best covariance for this dataset due to the visual appearance and second lowest RMS\(_{\text{var}}\), although the overall RMS (1.75) is 14% larger than the minimum RMS for the 0.2 model (1.53).

Fig. 14
figure 14

Plot of covariance vs. RMS for the overall RMS, and for the period ranges of 10–100, 100–1000 and 1000–10,000 s

All models in this study (except the one half-space inversion in Table 1) were tested with the ocean included and locked to a resistivity of 0.3 \(\Omega \)m throughout the inversion. However for each of the covariances tested in Table 2, we also ran them with a starting/prior resistivity of 0.3 \(\Omega \)m, but the cells were not locked, for comparison. Columns 7 and 8 in Table 2 show the overall RMS and number of iterations taken to converge when the ocean cells are not locked. In most instances, the overall RMS decreases, but the number of iterations to converge increases.

Lateral cell size

A choice of model cell size in the horizontal direction is a trade-off between computational time and having enough cells between each MT station to be able to incorporate interstation features. Whilst there is no hard and fast rule, a reasonable cell size seems to be about a fifth to a sixth of the spacing (Miensopust 2017, and references therein). The USArray has site spacing of 70 km, with various modellers using a range of site spacing of 15 km (Bedrosian and Feucht 2014, cell size 21% of site spacing), 10 km (Bedrosian 2016, 14%) and 12.5 km (Meqbel et al. 2014, 18% but also tested 25 km; 35%). AusLAMP has a smaller site spacing of approximately 55 km, and Robertson et al. (2016) and Thiel et al. (2018) use a cell size of 10 km (18%). It is important to note the implicit relationship of the covariance with the number of cells (rather than physical cell size) in its implementation in ModEM3DMT. For example, if the same model covariance is applied to a 'delta function model' with a 1 \(\Omega \)m cell in a 100 \(\Omega \)m background, the resulting smoothed model will show this anomaly smoothed out across multiple cells. If the same covariance value is applied but the cell size is doubled, the 'smoothing distance' is also doubled.

Here, we test a lateral cell size of 5, 7.5 and 10 km (percentage of site spacing 9.1, 13.6 and 18.2 %, respectively). We first compare varying the cell size, and using the preferred covariance of 0.4 that was used for the 7.5 km cell size throughout all previous tests. It was found that the smaller the cell size the better the RMS (1.64 for 5 km vs. 1.99 for 10 km; Table 3). However, the time taken for the models to converge does not directly relate to the cell size. Whilst the 5 km cell size used 10 KSU and the 10 km used 4.9 KSU, unexpectedly the 7.5 km cell size model used only 5.3 KSU.

Table 3 Results of lateral cell size tests

To further test cell sizes though, the covariance needed to be adjusted to suit the different cell sizes, due to the application of the covariance in terms of cells and not distance. For a smaller cell size of 5 km, a larger covariance of 0.5 was tested to reduce the speckled appearance of the model. This increased the RMS as expected, from 1.64 to 2.03, but produced a smoother model. This also decreased the time taken, from 10 to 8.4 KSU. Deeper in the model (see 172 km depth slice; Fig. 15), the conductivity is more enhanced. (We have seen this earlier in covariance testing that a larger covariance introduced more conductive features at depth; Fig. 12.) Conversely, we tested the 10 km cell size model with a smaller covariance of 0.3 which resulted in a large decrease in RMS (1.54 for covariance 0.3 from 1.99 for covariance 0.4), and a small increase in the time taken (5.3 KSU up from 4.9 KSU). The lower covariance improved the model, helping to get more resolution from the larger cell size. With larger cell sizes, the deeper conductivity structures became more conductive. This model achieved the lowest overall RMS, but in comparison with the smaller cell size models, there appears to be less resolution at shallow depths. At mantle depths (see, for example, the 172 km depth slice, Fig. 15), conductive features similar to C2 and C3 observed in Fig. 9 are apparent. The resistivity structure appears to vary laterally more rapidly than the expected sensitivity of the MT data at those depths which may be a manifestation of anisotropy and similar features have observed in other global examples such as beneath the Arabian Shield (Bedrosian et al. 2019). Further testing such as synthetic modelling studies and investigation into the possibility of anisotropy are required to determine whether these features are indeed required by the data and/or anisotropic. Meqbel et al. (2014) found when testing 12.5 versus 25 km cell size for modelling the USArray MT data that there was a significant increase in RMS for the larger cell size, and whilst the large-scale structures are relatively unchanged, conductors tend to be narrower and sometimes higher in amplitude for the smaller cell size. They note the biggest changes occur near the surface; however, deeper structures are also affected. Our results also show an increase in overall RMS with cell size that can be accounted for by decreasing the covariance for larger cell sizes. The computational time for an inversion is heavily dependent on the number of cells in the model; thus, it is favourable to have a larger cell size if the resultant model is comparable in resolution.

Fig. 15
figure 15

Modelling of data using different lateral cell sizes of 5, 7.5 and 10 km, respectively. These were run with all the same covariance (0.4) and then with a larger covariance for the 5 km to reduce speckling (0.5) and smaller for the 10 km to get a more detailed model (0.3)

Components to invert

Within ModEM3DMT, there are various options for which data components to invert. Users of 3D codes commonly invert the full impedance tensor in conjunction with the tipper (e.g. Heise et al. 2013; Thiel and Heinson 2013; Robertson et al. 2016, 2017). In a 2D inversion, only the off-diagonal components, Zxy and Zyx, are inverted, and the same can be done in a 3D inversion (e.g. Zhdanov 2010; Lindsey and Newman 2015). There are arguments for and against including the diagonal components such as that the diagonal components of the impedance tensor (which can be as little as 1/10th the magnitude of the off-diagonal component) can degrade the inversion due to lower signal-to-noise ratios (Newman et al. 2008), whereas others found that inverting the full impedance tensor provided a more detailed resistivity structure and revealed features that were otherwise missed by either 2D or 3D off-diagonal component inversions only (Tietze and Ritter 2013; Patro and Egbert 2011). If the tipper on its own is inverted, then the horizontal position and relative resistivity contrasts can be resolved, but the depth of features and absolute resistivity values cannot (e.g. Siripunvaraporn and Egbert 2009). To investigate the effects of inverting the different components, four inversions were run as outlined in Table 4, using a starting resistivity of 31 \(\Omega \)m, error floors of 7% of \(\sqrt{|Zxy * Zyx|}\) for Zxx and Zyy, 3% of \(\sqrt{|Zxy * Zyx|}\) for Zxy and Zyx and 0.01 for Tzx and Tzy. These results summarised in Table 4 show that when only data subsets are inverted, the resultant model does not fit the components that were not inverted, highlighting the importance of joint inversion of the various data components (full Z and T). The results show that C1a is present to some degree in each of the data components (as visible in the 42 km depth slice of Fig. 16). The most conductive parts of C2 are from the tipper and the diagonal components of the impedance tensor, although all components show enhanced conductivity in the northeast of the model. An inversion of the tipper does not constrain depths or absolute resistivities well, and as such the 10 km depth slice is very conductive and appears more like the conductance (conductivity × distance) of the top 10 km rather than the conductivity at 10 km (see bottom row in Fig.  16). These results highlight the importance of a full Z and T inversion and their respective contributions.

Table 4 Investigation of how inverting different components of the impedance tensor and tipper affects the final model
Fig. 16
figure 16

Depth slices at 10, 31 and 185 km for different components of the impedance tensor inverted. Across each row from top to bottom are: full impedance tensor and tipper (Zxx, Zxy, Zyy, Zyx), tipper only (Tzx, Tzy), full impedance tensor only (Zxy, Zyx, Zxx, Zyy), off-diagonals of impedance tensor (Zxy, Zyx), tipper (Tzx, Tzy) and conductance of the full impedance and tipper from 0 to 10 km


Whilst vast improvements have been made in recent years, 3D inversion of MT datasets is still very computationally expensive and takes a lot of time. As a result, it can be difficult to explore the impact that varying modelling parameters can have on the final model. The purpose of our investigation using the ModEM3DMT inversion code was to determine the types of changes that can have significant impact on the resultant inversion, and which tests are required to help ensure robustness of the final model features, and guide the reader to more informed choice of model parameters. The AusLAMP dataset provides an ideal base for this testing. Whilst it is not our main intention to choose the best parameters for this dataset, we do conclude each section with our choice of preferred parameter/s, based on a combination of overall RMS, visual appearance and minimising the variance of the RMS across the period range and the different data components (Z and T), represented by a parameter we introduce, RMS\(_{\text{var}}\).//

A reduction in the damping parameter, \(\lambda \), from 1000 to 1 made little difference to the resultant model and the overall RMS. The greatest overall RMS of 1.98 was for the \(\lambda \) of 10. \(\lambda \) = 1 had the smallest overall RMS of 1.74, but took 17 more iterations. Our preferred \(\lambda \) starting value is \(\lambda \) = 1; however, we performed subsequent testing using \(\lambda \) = 10 to save computational time. Given the savings in computational time that the initial \(\lambda \) value can provide, we suggest testing values early in the inversion process.

We investigated the effects of including prior knowledge in the starting/prior model. The inclusion of bathymetry and underlying ocean sediments required 10 less iterations than a half-space but a slightly higher RMS (1.98 instead of 1.82). The addition of conductive mantle of 10 \(\Omega \)m beneath 410 km decreased the RMS slightly (to 1.81), but took an extra 30 iterations when compared to the model that only included bathymetry. When the prior model has the resistivity beneath 660 km reduced to 1 \(\Omega \)m, the final RMS is the lowest, 1.71, taking one less iteration to converge than the model without the 660 km further reduction in resistivity. Our two preferred models were on both ends of the spectrum, a half-space, and the model that includes bathymetry and a 10 \(\Omega \)m resistivity beneath 410 km depth and a 1 \(\Omega \)m resistivity beneath 660 km (i.e. all prior information is included). However, our model area is several hundred kilometres from the ocean, so it is probably unlikely that a survey area closer to the ocean would find a half-space without ocean information included to be the preferred model.

The dependence of the final inverted model on the prior/starting model was further tested by trialling seven different half-space prior models between 3 and 1000 \(\Omega \)m, including one inversion with prior/starting resistivity of 69 \(\Omega \)m, which was the averaged apparent resistivity across all sites and all data periods. It was found that the inverted models generally showed the same features but at different absolute resistivities, thus highlighting the importance of using a suitable starting model. The robustness of features was also assessed by deriving the standard deviation across the converged models of these seven half-space priors. We found that using the averaged apparent resistivity across all data points for the prior/starting resistivity was a suitable starting point and resistivity values close to this could be tested. Our preferred model used a prior resistivity of 31 \(\Omega \)m which had the second best overall RMS and took the least number of iterations.

Similarly, a good choice in the covariance smoothing parameter is also important and is dependent on the site spacing, cell size and complexity of the resistivity structure. For the site layout (55 km spaced array) and cell size used here (7.5 km), a covariance of 0.4 was most suitable as this reduced spotting in shallower depth slices that would arise with smaller covariances and prevented the dramatic over-smoothing of higher covariances. Given a smaller cell size, a higher covariance is required which can be seen in the depth slices of the 5 km cell size model of Fig. 12, where the resistivity is spotty. This is due to the current formulation of covariance in terms of cells and not distance. When the covariance for the 5 km cell size model is increased from 0.4 to 0.5, the model looks more geologically plausible and smoother and is a better choice. Similarly, when the cell size is increased to 10 km, a covariance of 0.3 was preferred.

We inverted data subsets individually in the last section (full Z and T, Z only, T only, Zxy, Zyx only) and found that it is best to include all of the information (i.e. full Z and T inversion) as inversion of subsets fails to explain the other data components not included in the inversion.

With the advance and parallelisation of 3D inversion software and more readily available high-performance computing facilities, it is now possible to invert large datasets with hundreds of sites across several 1000 km. However, the entire AusLAMP set (and the USArray) will include thousands of MT sites and a task for the future is to consider how these will be inverted to obtain a suitable model of the resistivity of the Australian (or US) lithosphere within a feasible amount of time and within the limits of computing facilities. For example, the desired output of AusLAMP is to image the resistivity structure of the entire lithosphere beneath Australia with approximately 3200 sites and 7.7 million km\(^2\) in area, but for now outputs are centred on the modelling of smaller regions. But whether it be the smaller regions we currently manage, or whole continent inversions, and whether AusLAMP or another large-scale array, this information should serve to focus the inversions and parameter testing required and reduce the time and computational demand.

Availability of data

The magnetotelluric data used in this manuscript can be downloaded in EDI format from the South Australian Resources Information Gateway (SARIG)
